For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#minus
Indirect, uniform illumination is perfect for low
ceiling spaces. By illuminating the ceiling itself,
it becomes visually elevated and appears much
higher.
Light all around
White or RGB options are a perfect canvas for
creative ideas. Minus Square integrates easily
into any interior, lighting up uniformly the whole
space.
A graphic element
M A I N F E A T U R E S

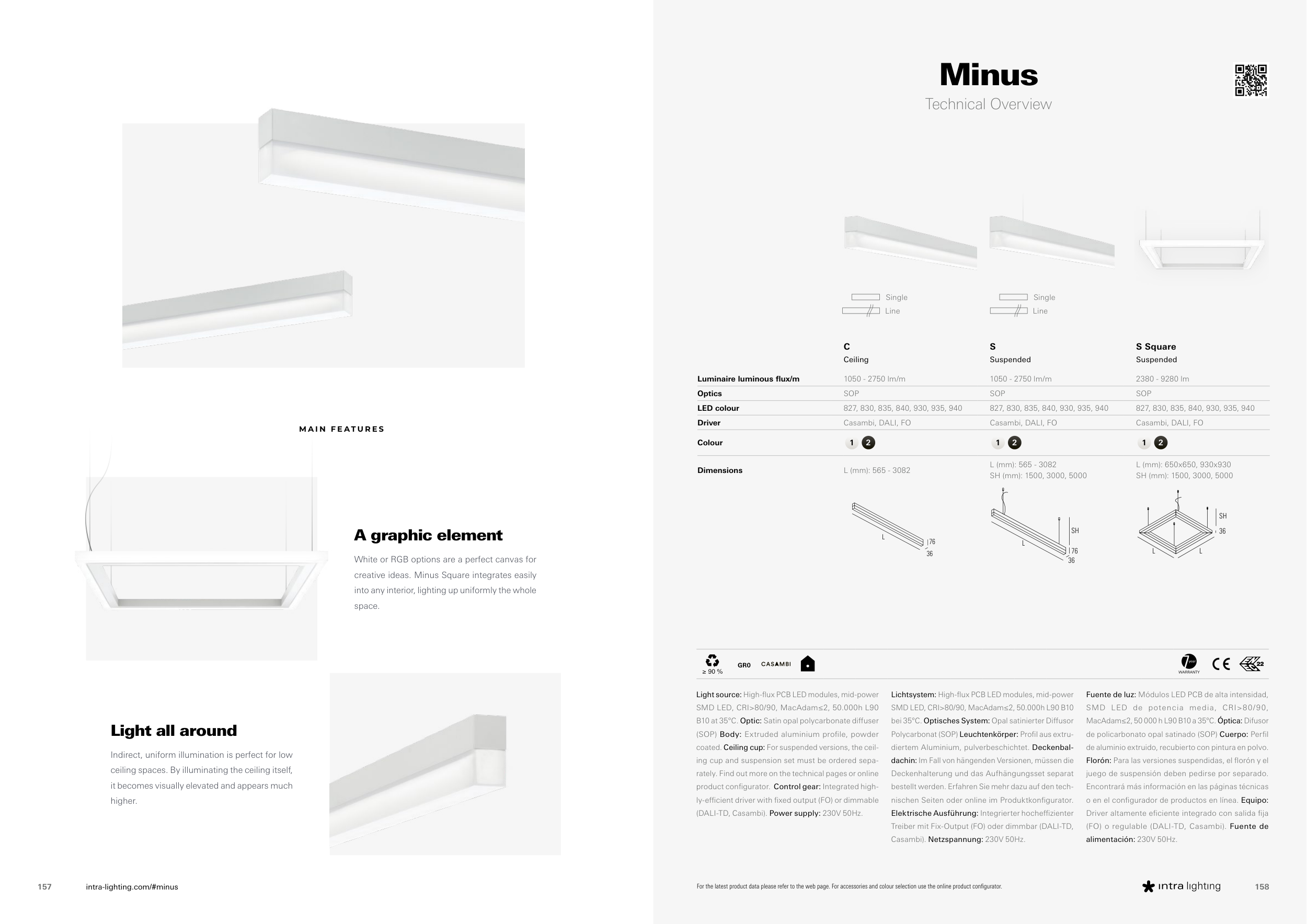

Minus
Technical Overview
C
S
S Square
Ceiling
Suspended
Suspended
Luminaire luminous flux/m
1050 - 2750 lm/m
1050 - 2750 lm/m
2380 - 9280 lm
Optics
SOP
SOP
SOP
LED colour
827, 830, 835, 840, 930, 935, 940
827, 830, 835, 840, 930, 935, 940
827, 830, 835, 840, 930, 935, 940
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Colour
1
2
1
2
1
2
Dimensions
L (mm): 565 - 3082
L (mm): 565 - 3082
SH (mm): 1500, 3000, 5000
L (mm): 650x650, 930x930
SH (mm): 1500, 3000, 5000
76
36
L
76
36
L
SH
36
L
L
SH
Single
Line
Single
Line
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 at 35°C. Optic: Satin opal polycarbonate diffuser
(SOP) Body: Extruded aluminium profile, powder
coated. Ceiling cup: For suspended versions, the ceil-
ing cup and suspension set must be ordered sepa-
rately. Find out more on the technical pages or online
product configurator. Control gear: Integrated high-
ly-efficient driver with fixed output (FO) or dimmable
(DALI-TD, Casambi). Power supply: 230V 50Hz.
≥ 90 %
GR0
year
WARRANTY
Lichtsystem: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90 B10
bei 35°C. Optisches System: Opal satinierter Diffusor
Polycarbonat (SOP) Leuchtenkörper: Profil aus extru-
diertem Aluminium, pulverbeschichtet. Deckenbal-
dachin: Im Fall von hängenden Versionen, müssen die
Deckenhalterung und das Aufhängungsset separat
bestellt werden. Erfahren Sie mehr dazu auf den tech-
nischen Seiten oder online im Produktkonfigurator.
Elektrische Ausführung: Integrierter hocheffizienter
Treiber mit Fix-Output (FO) oder dimmbar (DALI-TD,
Casambi). Netzspannung: 230V 50Hz.
Fuente de luz: Módulos LED PCB de alta intensidad,
SMD LED de potencia media, CRI>80/90,
MacAdam≤2, 50 000 h L90 B10 a 35°C. Óptica: Difusor
de policarbonato opal satinado (SOP) Cuerpo: Perfil
de aluminio extruido, recubierto con pintura en polvo.
Florón: Para las versiones suspendidas, el florón y el
juego de suspensión deben pedirse por separado.
Encontrará más información en las páginas técnicas
o en el configurador de productos en línea. Equipo:
Driver altamente eficiente integrado con salida fija
(FO) o regulable (DALI-TD, Casambi). Fuente de
alimentación: 230V 50Hz.
