For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#eyen
M A I N F E A T U R E S
Fits to different
table sizes
No matter the size, Eyen is extremely light. The
adaptable design and a different number of LED
spot options ensure the evenly illumination of
each surface.
Feather-light prestige
is made of carbon
A carbon fibre body links highly efficient power
LED spots offering optimum illumination with
excellent colour reproduction.
High efficiency
and visual comfort
High efficiency
and visual comfort
Direct and
Direct / Indirect
illumination
Eyen

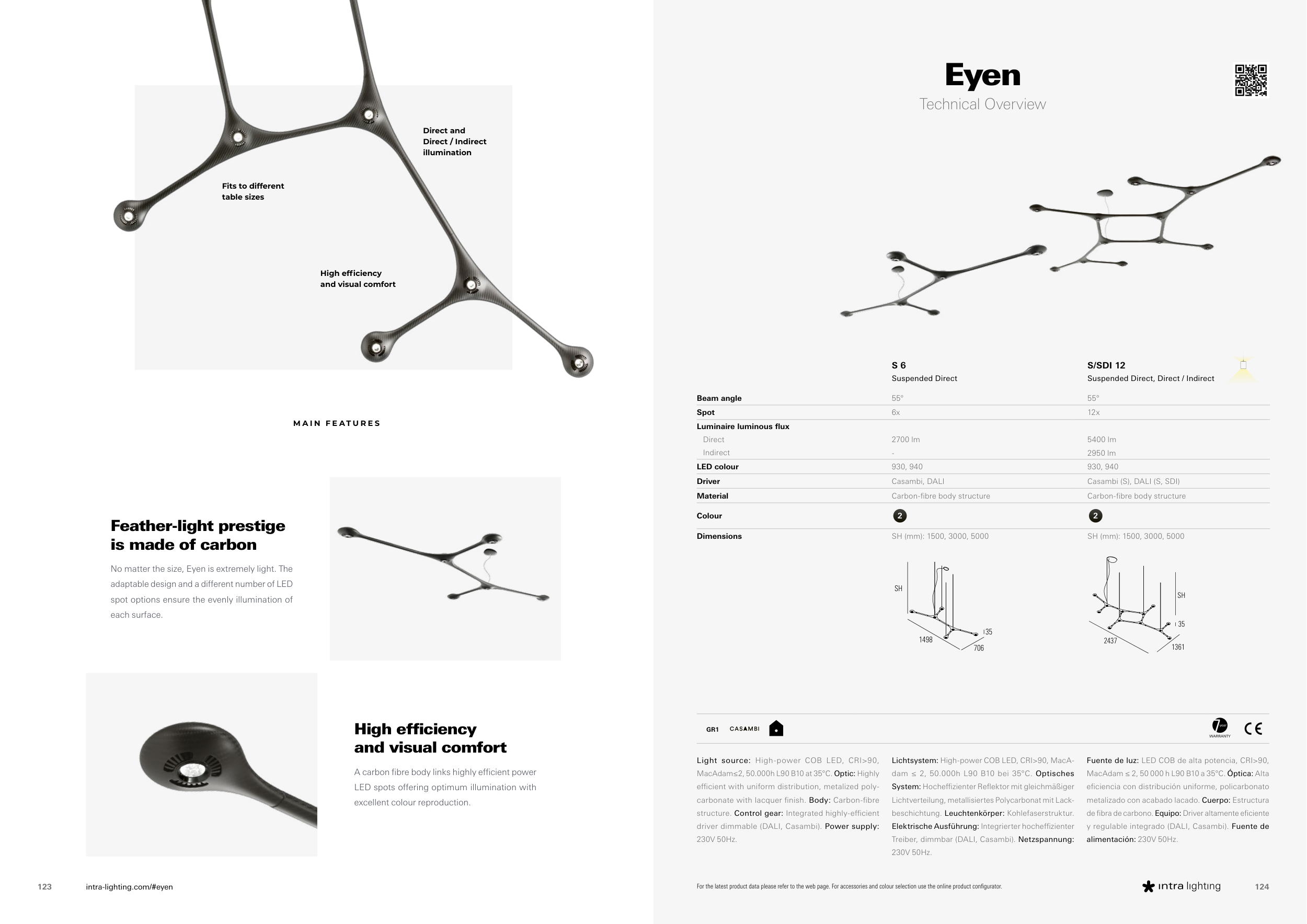

Technical Overview
S 6
S/SDI 12
Suspended Direct
Suspended Direct, Direct / Indirect
Beam angle
55°
55°
Spot
6x
12x
Luminaire luminous flux
Direct
2700 lm
5400 lm
Indirect
-
2950 lm
LED colour
930, 940
930, 940
Driver
Casambi, DALI
Casambi (S), DALI (S, SDI)
Material
Carbon-fibre body structure
Carbon-fibre body structure
Colour
2
2
Dimensions
SH (mm): 1500, 3000, 5000
SH (mm): 1500, 3000, 5000
SH
35
706
1498
35
1361
2437
SH
Light source: High-power COB LED, CRI>90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Highly
efficient with uniform distribution, metalized poly-
carbonate with lacquer finish. Body: Carbon-fibre
structure. Control gear: Integrated highly-efficient
driver dimmable (DALI, Casambi). Power supply:
230V 50Hz.
GR1
year
WARRANTY
Lichtsystem: High-power COB LED, CRI>90, MacA-
dam ≤ 2, 50.000h L90 B10 bei 35°C. Optisches
System: Hocheffizienter Reflektor mit gleichmäßiger
Lichtverteilung, metallisiertes Polycarbonat mit Lack-
beschichtung. Leuchtenkörper: Kohlefaserstruktur.
Elektrische Ausführung: Integrierter hocheffizienter
Treiber, dimmbar (DALI, Casambi). Netzspannung:
230V 50Hz.
Fuente de luz: LED COB de alta potencia, CRI>90,
MacAdam ≤ 2, 50 000 h L90 B10 a 35°C. Óptica: Alta
eficiencia con distribución uniforme, policarbonato
metalizado con acabado lacado. Cuerpo: Estructura
de fibra de carbono. Equipo: Driver altamente eficiente
y regulable integrado (DALI, Casambi). Fuente de
alimentación: 230V 50Hz.
