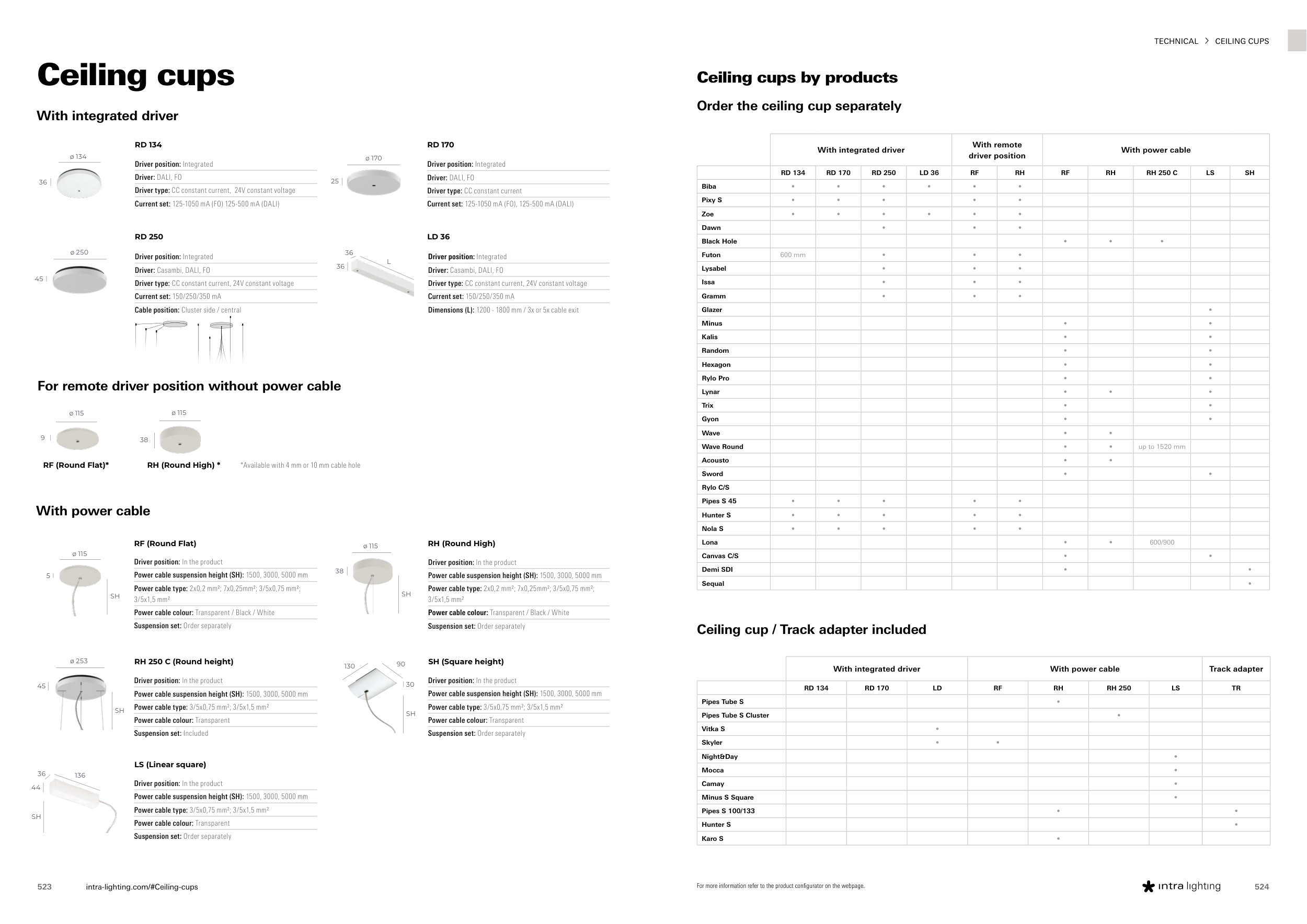

TECHNICAL CEILING CUPS
Ceiling cups by products
Ceiling cup / Track adapter included
Order the ceiling cup separately
With integrated driver
With remote
driver position
With power cable
RD 134
RD 170
RD 250
LD 36
RF
RH
RF
RH
RH 250 C
LS
SH
Biba
•
•
•
•
•
•
Pixy S
•
•
•
•
•
Zoe
•
•
•
•
•
•
Dawn
•
•
•
Black Hole
•
•
•
Futon
600 mm
•
•
•
Lysabel
•
•
•
Issa
•
•
•
Gramm
•
•
•
Glazer
•
Minus
•
•
Kalis
•
•
Random
•
•
Hexagon
•
•
Rylo Pro
•
•
Lynar
•
•
•
Trix
•
•
Gyon
•
•
Wave
•
•
Wave Round
•
•
up to 1520 mm
Acousto
•
•
Sword
•
•
Rylo C/S
Pipes S 45
•
•
•
•
•
Hunter S
•
•
•
•
•
Nola S
•
•
•
•
•
Lona
•
•
600/900
Canvas C/S
•
•
Demi SDI
•
•
Sequal
•
With integrated driver
With power cable
Track adapter
RD 134
RD 170
LD
RF
RH
RH 250
LS
TR
Pipes Tube S
•
Pipes Tube S Cluster
•
Vitka S
•
Skyler
•
•
Night&Day
•
Mocca
•
Camay
•
Minus S Square
•
Pipes S 100/133
•
•
Hunter S
•
Karo S
•
For more information refer to the product configurator on the webpage.
With integrated driver
With power cable
For remote driver position without power cable
RD 134
RF (Round Flat)
RF (Round Flat)*
*Available with 4 mm or 10 mm cable hole
RD 250
RH 250 C (Round height)
LD 36
LS (Linear square)
RD 170
RH (Round High)
RH (Round High) *
SH (Square height)
Driver position: Integrated
Driver: DALI, FO
Driver type: CC constant current, 24V constant voltage
Current set: 125-1050 mA (FO) 125-500 mA (DALI)
Driver position: Integrated
Driver: Casambi, DALI, FO
Driver type: CC constant current, 24V constant voltage
Current set: 150/250/350 mA
Cable position: Cluster side / central
Driver position: Integrated
Driver: Casambi, DALI, FO
Driver type: CC constant current, 24V constant voltage
Current set: 150/250/350 mA
Dimensions (L): 1200 - 1800 mm / 3x or 5x cable exit
Driver position: Integrated
Driver: DALI, FO
Driver type: CC constant current
Current set: 125-1050 mA (FO), 125-500 mA (DALI)
Driver position: In the product
Power cable suspension height (SH): 1500, 3000, 5000 mm
Power cable type: 2x0,2 mm2; 7x0,25mm2; 3/5x0,75 mm2;
3/5x1,5 mm2
Power cable colour: Transparent / Black / White
Suspension set: Order separately
Driver position: In the product
Power cable suspension height (SH): 1500, 3000, 5000 mm
Power cable type: 2x0,2 mm2; 7x0,25mm2; 3/5x0,75 mm2;
3/5x1,5 mm2
Power cable colour: Transparent / Black / White
Suspension set: Order separately
Driver position: In the product
Power cable suspension height (SH): 1500, 3000, 5000 mm
Power cable type: 3/5x0,75 mm2; 3/5x1,5 mm2
Power cable colour: Transparent
Suspension set: Order separately
Driver position: In the product
Power cable suspension height (SH): 1500, 3000, 5000 mm
Power cable type: 3/5x0,75 mm2; 3/5x1,5 mm2
Power cable colour: Transparent
Suspension set: Included
Driver position: In the product
Power cable suspension height (SH): 1500, 3000, 5000 mm
Power cable type: 3/5x0,75 mm2; 3/5x1,5 mm2
Power cable colour: Transparent
Suspension set: Order separately
Ceiling cups
9
ø 115
38
ø 115
36
36
L
44
36
136
SH
45
ø 250
36
ø 134
38
ø 115
5
ø 115
45
ø 253
SH
SH
SH
SH
130
90
30
ø 170
25
