For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#5700
M A I N F E A T U R E S
Chose the right option depending on your needs
or space heights.
Two sizes,
many power options
5700 is resistant to extremely low temperatures,
down to - 40°C.
It feels at home in
refrigerators and
freezers
Fast connection without
opening the fixture
Opal diffuser ensure
homogeneous light
distribution

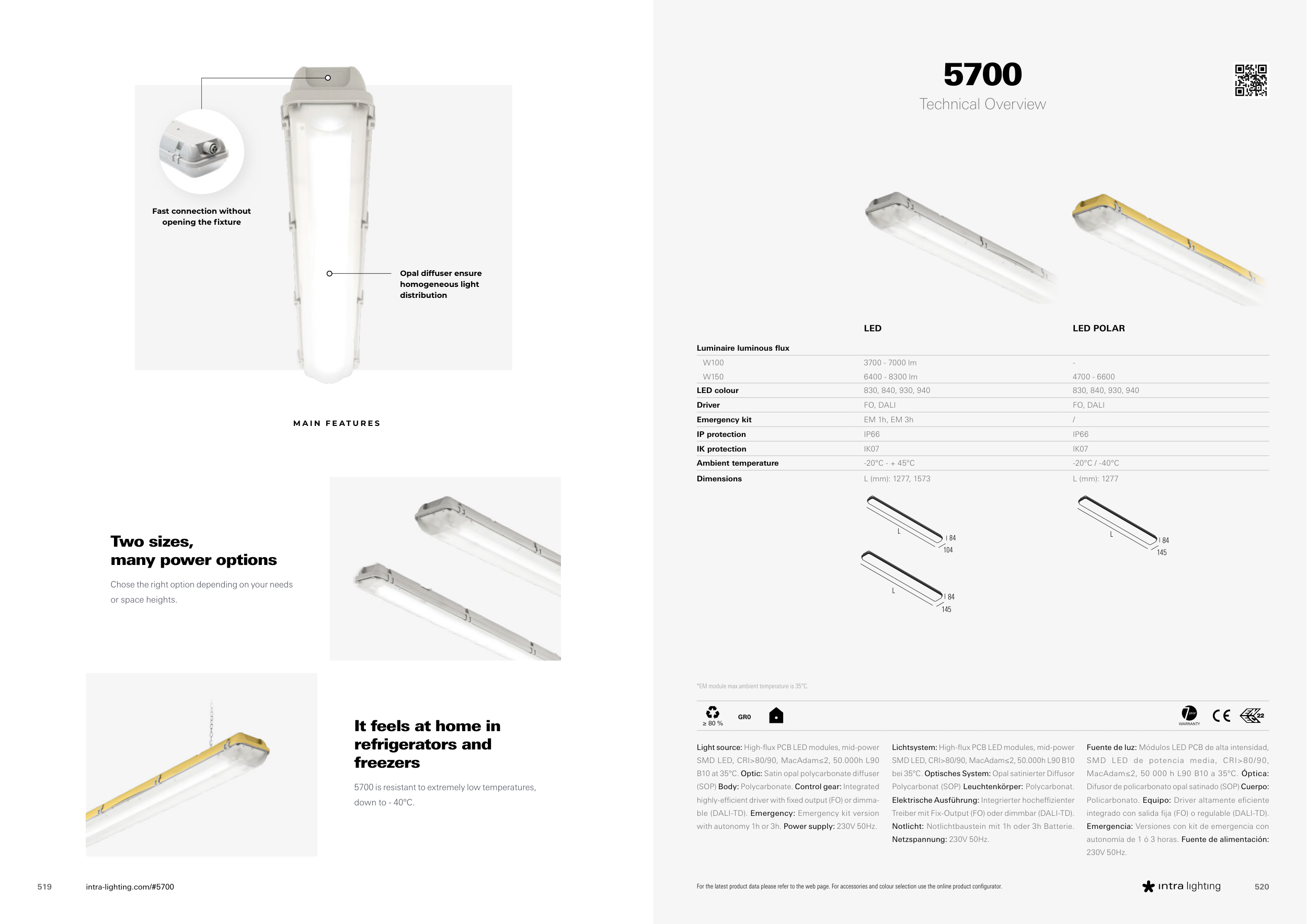

5700
Technical Overview
LED
LED POLAR
Luminaire luminous flux
W100
3700 - 7000 lm
-
W150
6400 - 8300 lm
4700 - 6600
LED colour
830, 840, 930, 940
830, 840, 930, 940
Driver
FO, DALI
FO, DALI
Emergency kit
EM 1h, EM 3h
/
IP protection
IP66
IP66
IK protection
IK07
IK07
Ambient temperature
-20°C - + 45°C
-20°C / -40°C
Dimensions
L (mm): 1277, 1573
L (mm): 1277
L
84
104
L
84
145
L
84
145
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 at 35°C. Optic: Satin opal polycarbonate diffuser
(SOP) Body: Polycarbonate. Control gear: Integrated
highly-efficient driver with fixed output (FO) or dimma-
ble (DALI-TD). Emergency: Emergency kit version
with autonomy 1h or 3h. Power supply: 230V 50Hz.
≥ 80 %
GR0
year
WARRANTY
*EM module max ambient temperature is 35°C.
Lichtsystem: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90 B10
bei 35°C. Optisches System: Opal satinierter Diffusor
Polycarbonat (SOP) Leuchtenkörper: Polycarbonat.
Elektrische Ausführung: Integrierter hocheffizienter
Treiber mit Fix-Output (FO) oder dimmbar (DALI-TD).
Notlicht: Notlichtbaustein mit 1h oder 3h Batterie.
Netzspannung: 230V 50Hz.
Fuente de luz: Módulos LED PCB de alta intensidad,
SMD LED de potencia media, CRI>80/90,
MacAdam≤2, 50 000 h L90 B10 a 35°C. Óptica:
Difusor de policarbonato opal satinado (SOP) Cuerpo:
Policarbonato. Equipo: Driver altamente eficiente
integrado con salida fija (FO) o regulable (DALI-TD).
Emergencia: Versiones con kit de emergencia con
autonomía de 1 ó 3 horas. Fuente de alimentación:
230V 50Hz.
