For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#nola

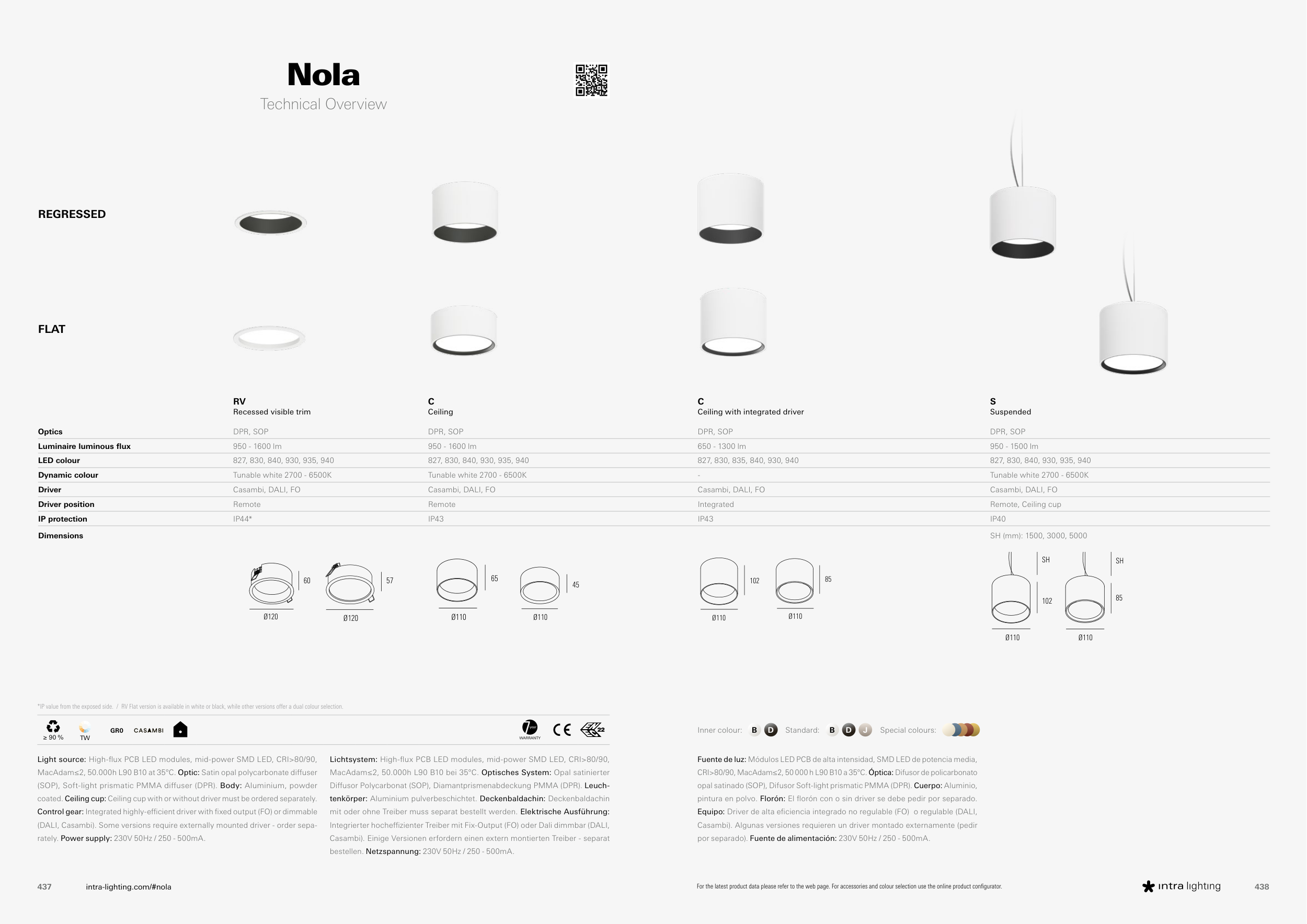

Technical Overview
REGRESSED
FLAT
RV
C
C
S
Recessed visible trim
Ceiling
Ceiling with integrated driver
Suspended
Optics
DPR, SOP
DPR, SOP
DPR, SOP
DPR, SOP
Luminaire luminous flux
950 - 1600 lm
950 - 1600 lm
650 - 1300 lm
950 - 1500 lm
LED colour
827, 830, 840, 930, 935, 940
827, 830, 840, 930, 935, 940
827, 830, 835, 840, 930, 940
827, 830, 840, 930, 935, 940
Dynamic colour
Tunable white 2700 - 6500K
Tunable white 2700 - 6500K
-
Tunable white 2700 - 6500K
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Remote
Remote
Integrated
Remote, Ceiling cup
IP protection
IP44*
IP43
IP43
IP40
Dimensions
SH (mm): 1500, 3000, 5000
60
Ø120
57
Ø120
65
Ø110
45
Ø110
102
Ø110
85
Ø110
102
SH
Ø110
85
Ø110
SH
Nola
Light source: High-flux PCB LED modules, mid-power SMD LED, CRI>80/90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Satin opal polycarbonate diffuser
(SOP), Soft-light prismatic PMMA diffuser (DPR). Body: Aluminium, powder
coated. Ceiling cup: Ceiling cup with or without driver must be ordered separately.
Control gear: Integrated highly-efficient driver with fixed output (FO) or dimmable
(DALI, Casambi). Some versions require externally mounted driver - order sepa-
rately. Power supply: 230V 50Hz / 250 - 500mA.
≥ 90 %
TW
GR0
year
WARRANTY
*IP value from the exposed side. / RV Flat version is available in white or black, while other versions offer a dual colour selection.
B
B
D
D
Standard:
Inner colour:
Special colours:
J
Lichtsystem: High-flux PCB LED modules, mid-power SMD LED, CRI>80/90,
MacAdam≤2, 50.000h L90 B10 bei 35°C. Optisches System: Opal satinierter
Diffusor Polycarbonat (SOP), Diamantprismenabdeckung PMMA (DPR). Leuch-
tenkörper: Aluminium pulverbeschichtet. Deckenbaldachin: Deckenbaldachin
mit oder ohne Treiber muss separat bestellt werden. Elektrische Ausführung:
Integrierter hocheffizienter Treiber mit Fix-Output (FO) oder Dali dimmbar (DALI,
Casambi). Einige Versionen erfordern einen extern montierten Treiber - separat
bestellen. Netzspannung: 230V 50Hz / 250 - 500mA.
Fuente de luz: Módulos LED PCB de alta intensidad, SMD LED de potencia media,
CRI>80/90, MacAdam≤2, 50 000 h L90 B10 a 35°C. Óptica: Difusor de policarbonato
opal satinado (SOP), Difusor Soft-light prismatic PMMA (DPR). Cuerpo: Aluminio,
pintura en polvo. Florón: El florón con o sin driver se debe pedir por separado.
Equipo: Driver de alta eficiencia integrado no regulable (FO) o regulable (DALI,
Casambi). Algunas versiones requieren un driver montado externamente (pedir
por separado). Fuente de alimentación: 230V 50Hz / 250 - 500mA.
