For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
DECO
DECO
PRO
Beam angle
20°, 30°, 55°
30°, 40°, 60°
15°, 30°, 36°, 56°
Zoom lens
-
21° - 47°
-
Luminaire luminous
flux
up to 960 (20°, 30°), 1400 lm (55°)
up to 3600 lm
up to 3400 lm
LED colour
927, 930, 935, 940
827, 830, 840, 927, 930, 935, 940
830, 835, 840, 927, 930, 940
Dynamic light
Dim to warm (D2W)**
Tunable white 2700 - 6500K (TW)
Tunable white 2700 - 6500K (TW)
Special LED colour
-
Alaska, Clear white, Fresh rose, Warm
crispy, Warm vivid, Plant white
Alaska, Clear white, Fresh rose, Warm
crispy, Warm vivid, Plant white
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Ø 45
Extra small
Ø 100
Small
*Pipes S is available also with track adapter. **Dim to warm is possible on 55° beam angle.
Honeycomb available for versions 100 DECO, or as accessory on 100 PRO and 133 PRO.
Light source: High-power COB LED, CRI>80/90,
MacAdam≤2, 50.000h L90 B10 at 35°C. Optic: Highly
efficient with uniform distribution, metalized polycar-
bonate with lacquer finish / Highly efficient PMMA
optical lenses / Acrylic high efficiency lens with
adjustable beam angle. Body: Aluminium, powder
coated. Control gear: Integrated highly-efficient
driver with fixed output (FO) or dimmable (DALI, TD,
Casambi). TD version is supplied with Touch-dim push
button. / For RIO/RVO, SRI versions constant current
driver must be ordered separately. Power supply:
230V 50Hz / 350 - 900mA.
≥ 90 %
TW
D2W
VIVID
GR1
year
WARRANTY

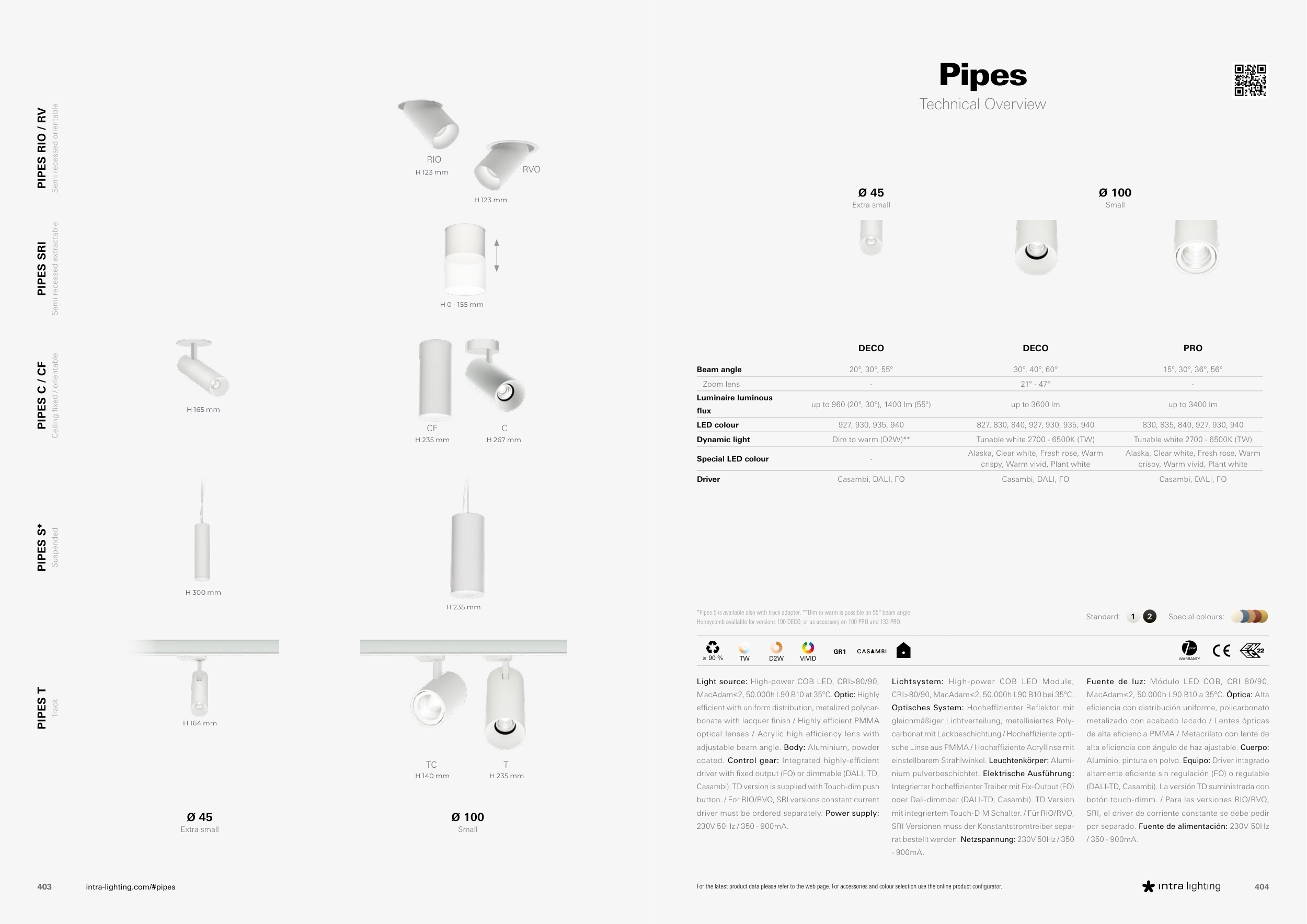

Pipes
Technical Overview
403
intra-lighting.com/#pipes
PIPES RIO / RV
Semi recessed orientable
PIPES SRI
Semi recessed extractable
PIPES C / CF
Ceiling fixed / orientable
PIPES S*
Suspended
PIPES T
Track
Ø 45
Extra small
Ø 100
Small
RIO
CF
C
TC
T
RVO
H 123 mm
H 0 - 155 mm
H 235 mm
H 235 mm
H 140 mm
H 235 mm
H 300 mm
H 164 mm
H 165 mm
H 267 mm
H 123 mm
Standard:
Special colours:
1
2
Lichtsystem: High-power COB LED Module,
CRI>80/90, MacAdam≤2, 50.000h L90 B10 bei 35°C.
Optisches System: Hocheffizienter Reflektor mit
gleichmäßiger Lichtverteilung, metallisiertes Poly-
carbonat mit Lackbeschichtung / Hocheffiziente opti-
sche Linse aus PMMA / Hocheffiziente Acryllinse mit
einstellbarem Strahlwinkel. Leuchtenkörper: Alumi-
nium pulverbeschichtet. Elektrische Ausführung:
Integrierter hocheffizienter Treiber mit Fix-Output (FO)
oder Dali-dimmbar (DALI-TD, Casambi). TD Version
mit integriertem Touch-DIM Schalter. / Für RIO/RVO,
SRI Versionen muss der Konstantstromtreiber sepa-
rat bestellt werden. Netzspannung: 230V 50Hz / 350
- 900mA.
Fuente de luz: Módulo LED COB, CRI 80/90,
MacAdam≤2, 50.000h L90 B10 a 35°C. Óptica: Alta
eficiencia con distribución uniforme, policarbonato
metalizado con acabado lacado / Lentes ópticas
de alta eficiencia PMMA / Metacrilato con lente de
alta eficiencia con ángulo de haz ajustable. Cuerpo:
Aluminio, pintura en polvo. Equipo: Driver integrado
altamente eficiente sin regulación (FO) o regulable
(DALI-TD, Casambi). La versión TD suministrada con
botón touch-dimm. / Para las versiones RIO/RVO,
SRI, el driver de corriente constante se debe pedir
por separado. Fuente de alimentación: 230V 50Hz
/ 350 - 900mA.
