For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#cove
1. Screw the mounting clamp into the desired
ceiling position.
2. Push Cove on the clamp until you hear the
click.
3. The luminaire is now ready to be connected
to the power.
Simple installation
1
2
3
Cove RV is suitable for ceilings of different thick-
ness - from 1 to 20 mm.
Suitable for the lowest
ceiling thickness
12,5
10
38
Cove 12 V does not emit light backwards and
is therefore suitable for more specific applica-
tions like shelves and counter tops. Mounting
Cove into the furniture requires the recessed
round end cap.
Shelf application
Cove 25 V
Vertical diffuser
L (standard module length): 400, 500, 600, 700, 1000, 1500, 2000, 2500
Other lengths available on request.
Mounting points
Diffuser
Cove 12 V
Vertical diffuser
Light distribution
25 mm
L
61 mm
38 mm
12.5 mm
L
Cove 12 H
Horizontal diffuser
38 mm
12.5 mm
L
Cove 25 V
Vertical diffuser
L (standard module length): 400, 500, 600, 700, 1000, 1500, 2000, 2500
Other lengths available on request.
Mounting points
Diffuser
Cove 12 V
Vertical diffuser
Light distribution
25 mm
L
61 mm
38 mm
12.5 mm
L
Cove 12 H
Horizontal diffuser
38 mm
12.5 mm
L
RV
Recessed visible trim
C
Ceiling
12 H
12 V
25 V
Horizontal diffuser
Vertical diffuser
Vertical diffuser
Luminaire luminous flux/m
720 - 1300 lm/m
580 - 1100 lm/m
580 - 1100 lm/m
Optics
SOP
SOP
SOP
LED colour
827, 830, 840, 930, 940
827, 830, 840, 930, 940
827, 830, 840, 930, 940
Driver
Casambi, DALI, FO
Casambi, DALI, FO
Casambi, DALI, FO
Driver position
Remote
Remote
Remote
Colour
1
2
1
2
1
2
Dimensions
L (mm): 400 - 2502
L (mm): 400 - 2502
L (mm): 400 - 2502
Cove 25 V
Vertical diffuser
L (standard module length): 400, 500, 600, 700, 1000, 1500, 2000, 2500
Other lengths available on request.
Mounting points
Diffuser
Cove 12 V
Vertical diffuser
Light distribution
25 mm
L
61 mm
38 mm
12.5 mm
L
Cove 12 H
Horizontal diffuser
38 mm
12.5 mm
L
38 mm
38 mm
60 mm
44 mm
44 mm
12,5 mm
12,5 mm
25 mm

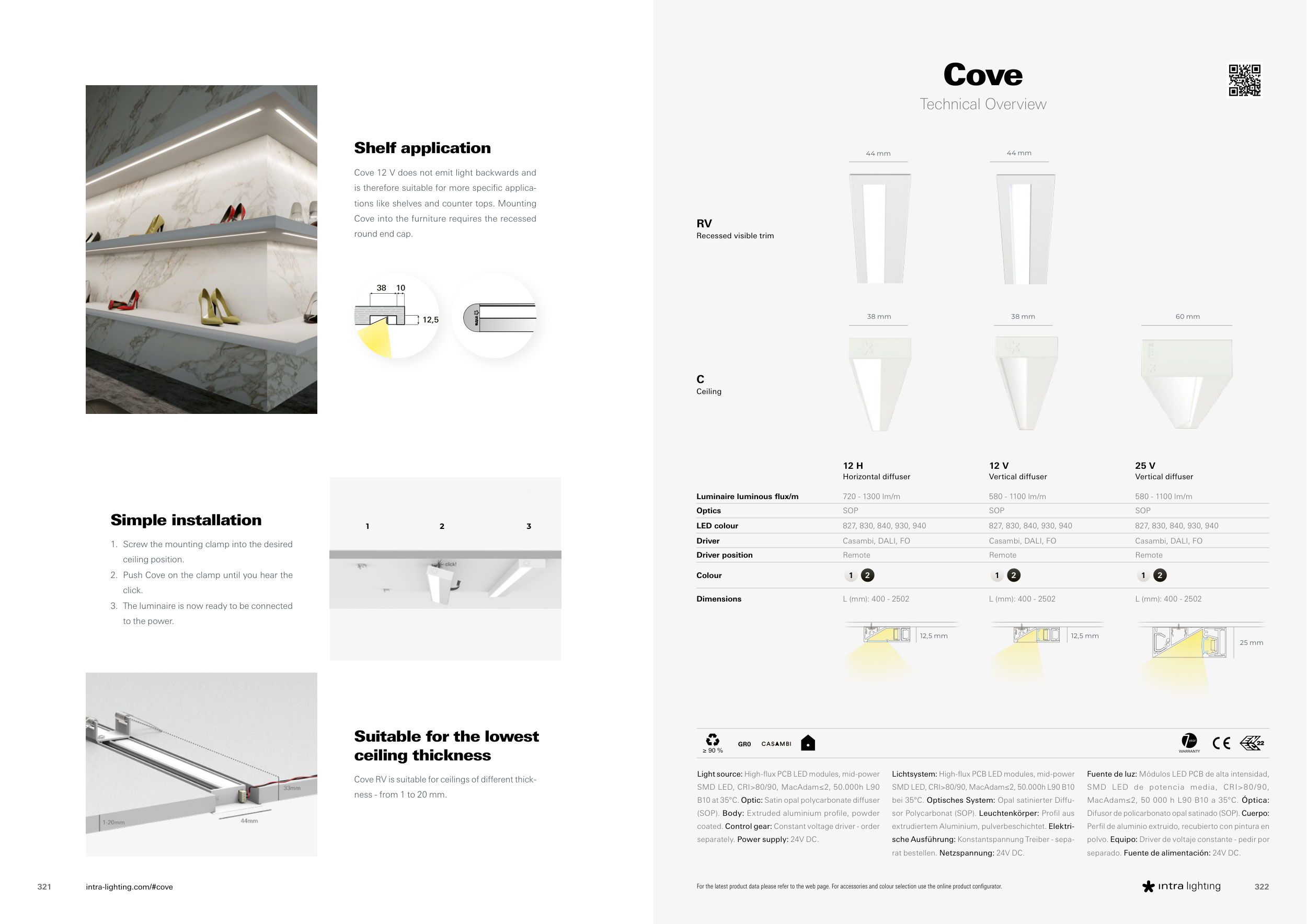

Cove
Technical Overview
Light source: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90
B10 at 35°C. Optic: Satin opal polycarbonate diffuser
(SOP). Body: Extruded aluminium profile, powder
coated. Control gear: Constant voltage driver - order
separately. Power supply: 24V DC.
≥ 90 %
GR0
year
WARRANTY
Lichtsystem: High-flux PCB LED modules, mid-power
SMD LED, CRI>80/90, MacAdam≤2, 50.000h L90 B10
bei 35°C. Optisches System: Opal satinierter Diffu-
sor Polycarbonat (SOP). Leuchtenkörper: Profil aus
extrudiertem Aluminium, pulverbeschichtet. Elektri-
sche Ausführung: Konstantspannung Treiber - sepa-
rat bestellen. Netzspannung: 24V DC.
Fuente de luz: Módulos LED PCB de alta intensidad,
SMD LED de potencia media, CRI>80/90,
MacAdam≤2, 50 000 h L90 B10 a 35°C. Óptica:
Difusor de policarbonato opal satinado (SOP). Cuerpo:
Perfil de aluminio extruido, recubierto con pintura en
polvo. Equipo: Driver de voltaje constante - pedir por
separado. Fuente de alimentación: 24V DC.
