For the latest product data please refer to the web page. For accessories and colour selection use the online product configurator.
intra-lighting.com/#cut
Linear insets
Channel
Spot insets
Track
Gyon C
Channel corner 90°
Channel end
Channel cover
Linear channel
Sword C
Pipes Cut TRS
Track
Device holders
Holder
Luminaire luminous flux: 720 - 3400 lm
Beam angle: 15°, 30°, 36°, 56° (PRO);
30°, 40°, 60° (DECO)
LED colour: 830, 835, 840, 927, 930, 940
Driver: FO, DALI
Length: 1000 - 3000 mm
3 phase track with DALI line
Luminaire luminous flux/m: 800 - 2900 lm/m
Module length: 800 - 2880 lm/m
Optic: SOP, DPR, HMP, LDP (UGR<19), AS
LED colour: 827, 830, 835, 840, 930, 940
Driver: Casambi, DALI, FO
Dimensions: 600x600 mm
Dimensions: 462, 170 mm
Dimensions: 462, 170 mm
Luminaire luminous flux/m: 1650 - 4300 lm/m
Module length: 1670 - 4250 lm/m
Optic: SOP, DPR
LED colour: 827, 830, 835, 840, 930, 940
Driver: Casambi, DALI, FO
Security camera holder
Fire sensor holder
Ceiling speaker holder
Dimensions: 1000, 2000, 3000 mm

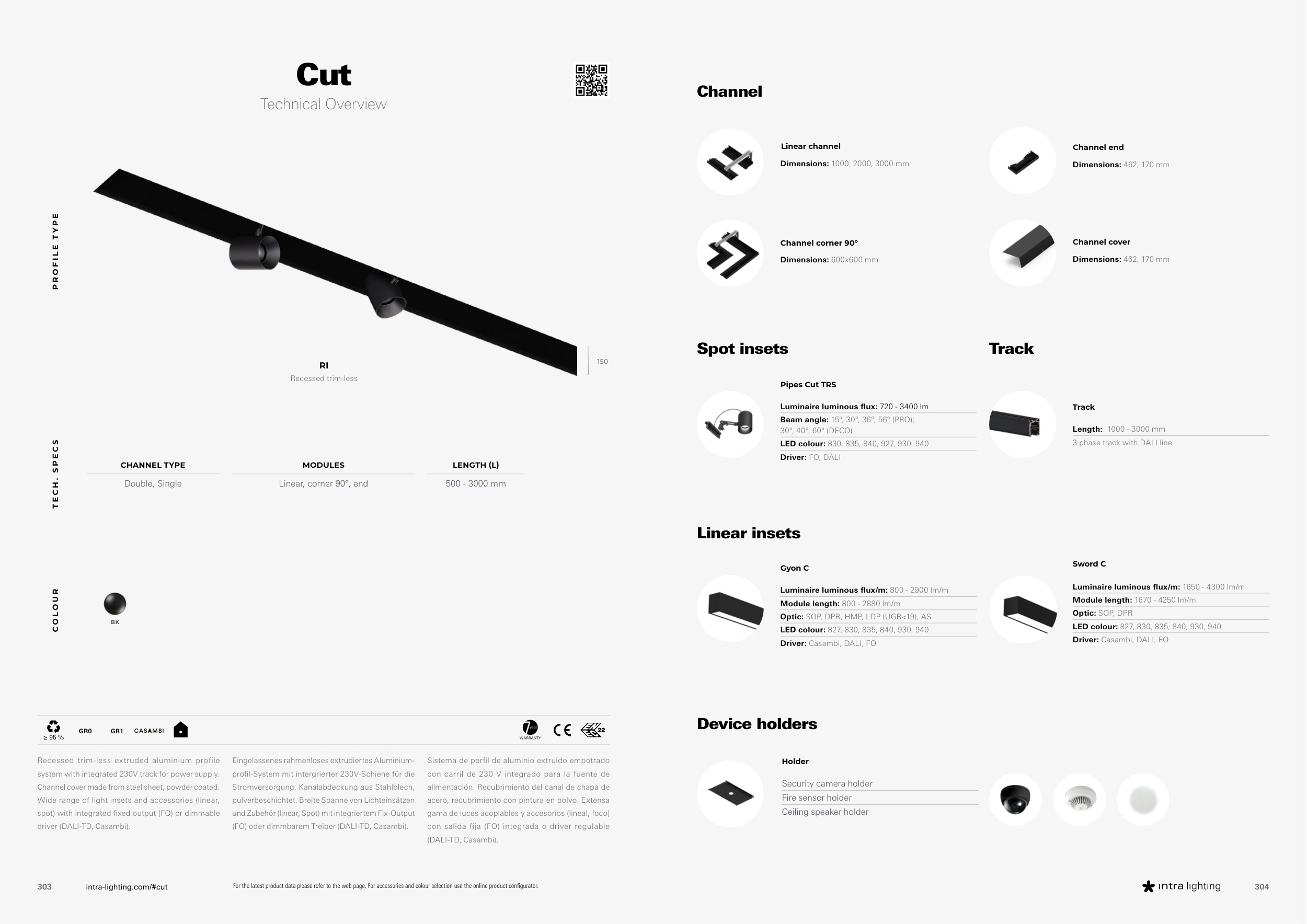

Cut
Technical Overview
Recessed trim-less
RI
P R O F I L E T Y P E
T E C H . S P E C S
C O L O U R
Linear, corner 90°, end
MODULES
500 - 3000 mm
LENGTH (L)
Double, Single
CHANNEL TYPE
BK
Recessed trim-less extruded aluminium profile
system with integrated 230V track for power supply.
Channel cover made from steel sheet, powder coated.
Wide range of light insets and accessories (linear,
spot) with integrated fixed output (FO) or dimmable
driver (DALI-TD, Casambi).
≥ 95 %
GR0
GR1
year
WARRANTY
150
Eingelassenes rahmenloses extrudiertes Aluminium-
profil-System mit intergrierter 230V-Schiene für die
Stromversorgung. Kanalabdeckung aus Stahlblech,
pulverbeschichtet. Breite Spanne von Lichteinsätzen
und Zubehör (linear, Spot) mit integriertem Fix-Output
(FO) oder dimmbarem Treiber (DALI-TD, Casambi).
Sistema de perfil de aluminio extruido empotrado
con carril de 230 V integrado para la fuente de
alimentación. Recubrimiento del canal de chapa de
acero, recubrimiento con pintura en polvo. Extensa
gama de luces acoplables y accesorios (lineal, foco)
con salida fija (FO) integrada o driver regulable
(DALI-TD, Casambi).
