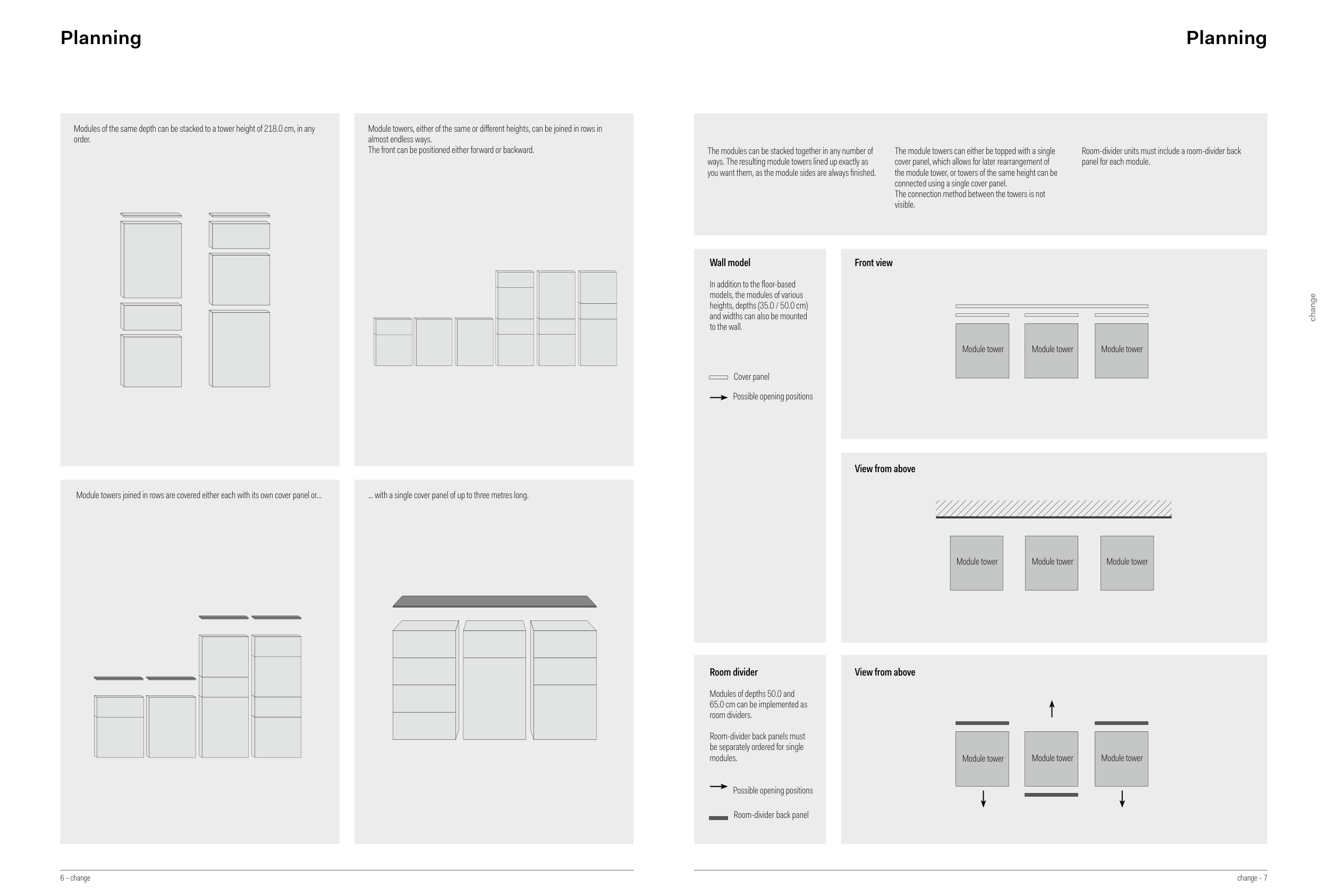

Planning
Wall model
In addition to the floor-based
models, the modules of various
heights, depths (35.0 / 50.0 cm)
and widths can also be mounted
to the wall.
Room divider
Modules of depths 50.0 and
65.0 cm can be implemented as
room dividers.
Room-divider back panels must
be separately ordered for single
modules.
The modules can be stacked together in any number of
ways. The resulting module towers lined up exactly as
you want them, as the module sides are always finished.
The module towers can either be topped with a single
cover panel, which allows for later rearrangement of
the module tower, or towers of the same height can be
connected using a single cover panel.
The connection method between the towers is not
visible.
Room-divider units must include a room-divider back
panel for each module.
Module tower
Module tower
Module tower
Module tower
Module tower
Module tower
Module tower
Module tower
Module tower
View from above
Front view
View from above
Possible opening positions
Possible opening positions
Room-divider back panel
Cover panel
Planning
Modules of the same depth can be stacked to a tower height of 218.0 cm, in any
order.
Module towers joined in rows are covered either each with its own cover panel or…
… with a single cover panel of up to three metres long.
Module towers, either of the same or different heights, can be joined in rows in
almost endless ways.
The front can be positioned either forward or backward.
