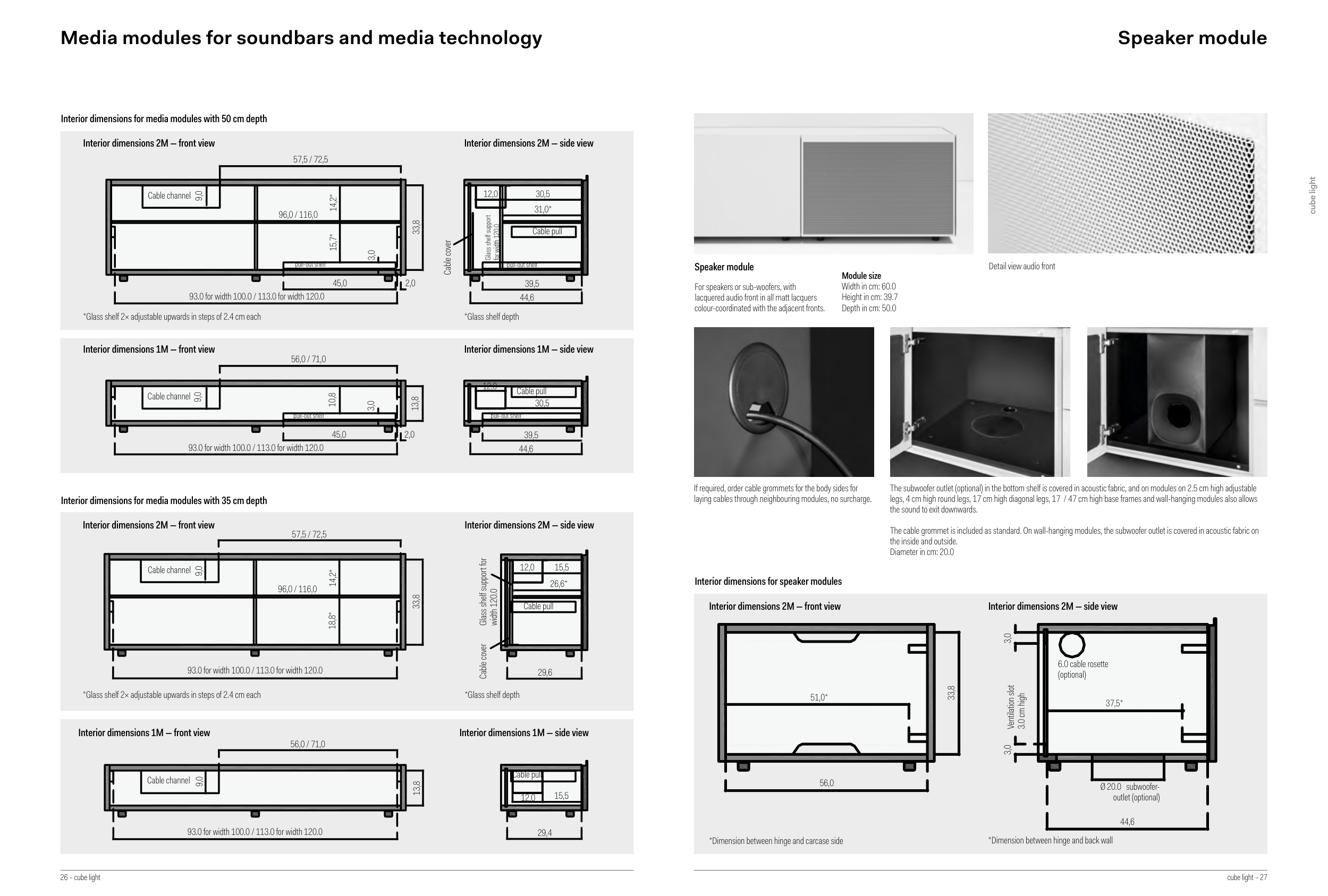

Media modules for soundbars and media technology
Speaker module
The subwoofer outlet (optional) in the bottom shelf is covered in acoustic fabric, and on modules on 2.5 cm high adjustable
legs, 4 cm high round legs, 17 cm high diagonal legs, 17 / 47 cm high base frames and wall-hanging modules also allows
the sound to exit downwards.
The cable grommet is included as standard. On wall-hanging modules, the subwoofer outlet is covered in acoustic fabric on
the inside and outside.
Diameter in cm: 20.0
If required, order cable grommets for the body sides for
laying cables through neighbouring modules, no surcharge.
Speaker module
For speakers or sub-woofers, with
lacquered audio front in all matt lacquers
colour-coordinated with the adjacent fronts.
Detail view audio front
Module size
Width in cm: 60.0
Height in cm: 39.7
Depth in cm: 50.0
Interior dimensions for media modules with 50 cm depth
93.0 for width 100.0 / 113.0 for width 120.0
pull-out shelf
Interior dimensions 2M — front view
Cable channel
*Glass shelf 2× adjustable upwards in steps of 2.4 cm each
Interior dimensions 2M — side view
*Glass shelf depth
Cable cover
Cable pull
pull-out shelf
Glass shelf support
for width 120.0
93.0 for width 100.0 / 113.0 for width 120.0
Interior dimensions 1M — front view
Cable channel
pull-out shelf
Interior dimensions 1M — side view
Cable pull
pull-out shelf
Interior dimensions for media modules with 35 cm depth
*Glass shelf 2× adjustable upwards in steps of 2.4 cm each
Interior dimensions 2M — front view
Interior dimensions 2M — side view
*Glass shelf depth
Cable pull
Glass shelf support for
width 120.0
Cable cover
93.0 for width 100.0 / 113.0 for width 120.0
Cable channel
93.0 for width 100.0 / 113.0 for width 120.0
Interior dimensions 1M — front view
Cable channel
Interior dimensions 1M — side view
Cable pull
Interior dimensions for speaker modules
Interior dimensions 2M — side view
Interior dimensions 2M — front view
Ø 20.0 subwoofer-
outlet (optional)
*Dimension between hinge and carcase side
*Dimension between hinge and back wall
Ventilation slot
3.0 cm high
6.0 cable rosette
(optional)
