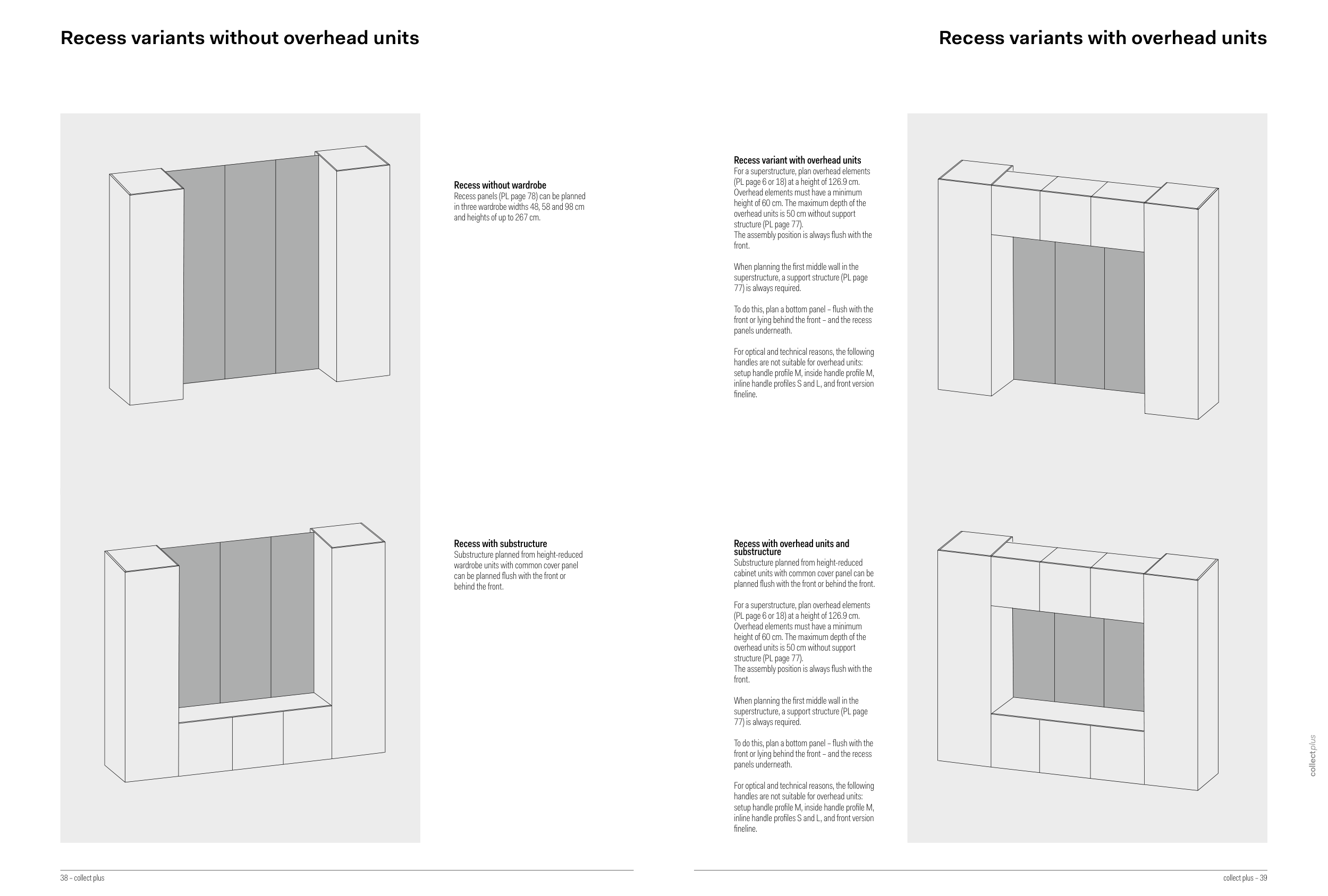

Recess variants without overhead units
Recess variants with overhead units
Recess with substructure
Substructure planned from height-reduced
wardrobe units with common cover panel
can be planned flush with the front or
behind the front.
Recess with overhead units and
substructure
Substructure planned from height-reduced
cabinet units with common cover panel can be
planned flush with the front or behind the front.
For a superstructure, plan overhead elements
(PL page 6 or 18) at a height of 126.9 cm.
Overhead elements must have a minimum
height of 60 cm. The maximum depth of the
overhead units is 50 cm without support
structure (PL page 77).
The assembly position is always flush with the
front.
When planning the first middle wall in the
superstructure, a support structure (PL page
77) is always required.
To do this, plan a bottom panel – flush with the
front or lying behind the front – and the recess
panels underneath.
For optical and technical reasons, the following
handles are not suitable for overhead units:
setup handle profile M, inside handle profile M,
inline handle profiles S and L, and front version
fineline.
Recess without wardrobe
Recess panels (PL page 78) can be planned
in three wardrobe widths 48, 58 and 98 cm
and heights of up to 267 cm.
Recess variant with overhead units
For a superstructure, plan overhead elements
(PL page 6 or 18) at a height of 126.9 cm.
Overhead elements must have a minimum
height of 60 cm. The maximum depth of the
overhead units is 50 cm without support
structure (PL page 77).
The assembly position is always flush with the
front.
When planning the first middle wall in the
superstructure, a support structure (PL page
77) is always required.
To do this, plan a bottom panel – flush with the
front or lying behind the front – and the recess
panels underneath.
For optical and technical reasons, the following
handles are not suitable for overhead units:
setup handle profile M, inside handle profile M,
inline handle profiles S and L, and front version
fineline.
