1
3
2
6
7
8
MOISTURE
Protected against vertical falling drops of water. Limited ingress permitted.
Protected against vertical falling drops of water with enclosure tilted up to 15° from the vertical.
Limited ingress permitted.
Protected against sprays of water up to 60º from the vertical.
Limited ingress permitted.
Protected against water splashes from all directions.
Limited ingress permitted.
Protected against jets of water.
Protected against powerful jets of water.
Watertight against immersion in water between 15cm and
1m for 30 minutes.
Watertight against immersion in water for long periods.
IP Rating Icon
SOLID OBJECTS
Protected against a solid object greater than 50mm such as a hand.
Protected against a solid object greater than 12.5mm such as a finger.
Protected against a solid object greater than 2.5mm such as a screwdriver.
Protected against a solid object greater than 1mm such as a wire.
Dust protected. Limited ingress of dust.
Dust tight. No ingress of dust.
1
3
5
2
4
6
Warm white 2000K - 3000K
Warmer white light is generally preferred for creating a more relaxed environment in living spaces, dining rooms, reception areas.
Cool white 4000K & Daylight 6500K
Cool white is a great choice for domestic areas where simulated natural light is preferred. Daylight is cooler still and, depending on
your preference both are perfect for task areas, such as kitchens, bathrooms and utility rooms.

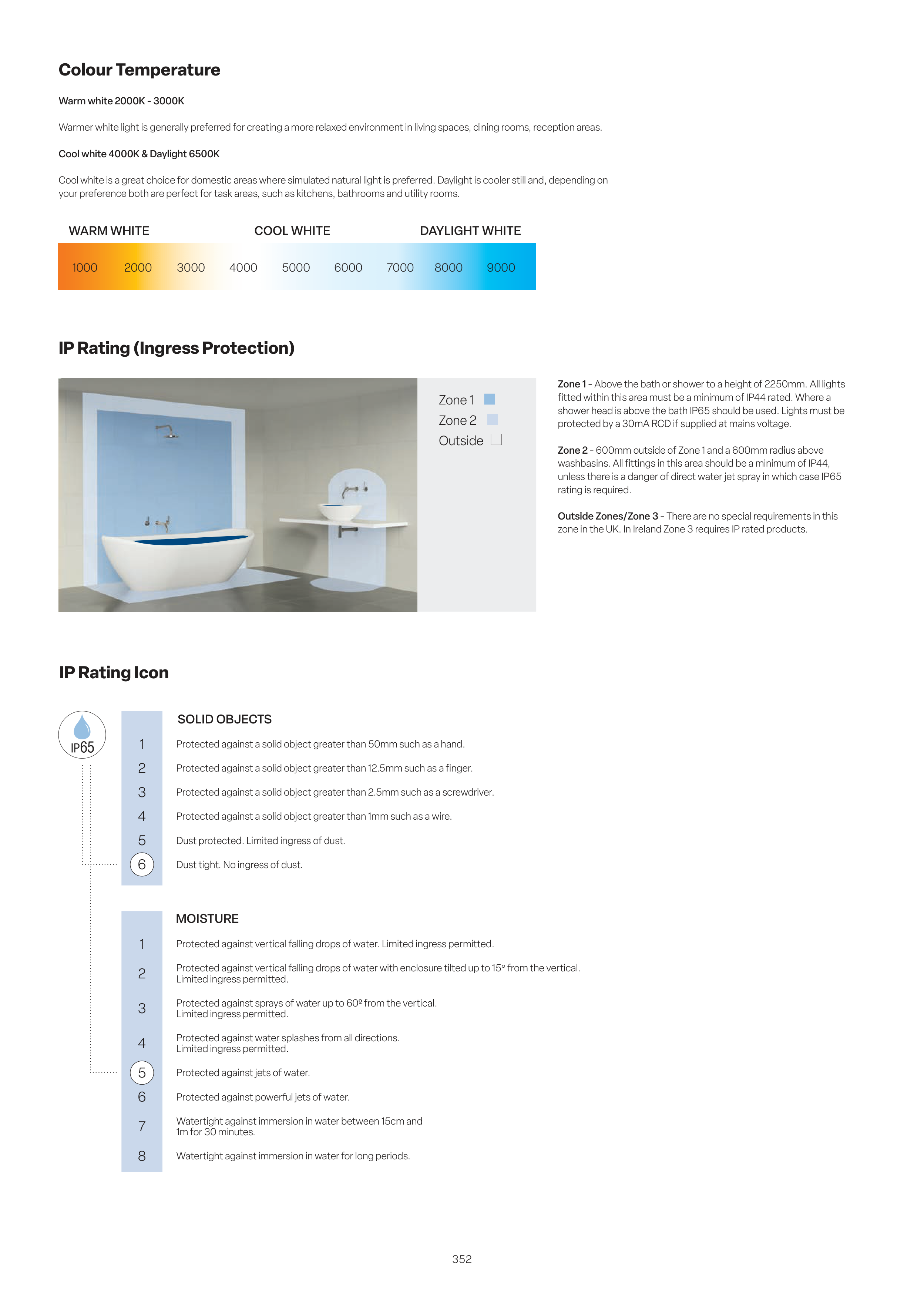

Colour Temperature
Zone 1 - Above the bath or shower to a height of 2250mm. All lights
fitted within this area must be a minimum of IP44 rated. Where a
shower head is above the bath IP65 should be used. Lights must be
protected by a 30mA RCD if supplied at mains voltage.
Zone 2 - 600mm outside of Zone 1 and a 600mm radius above
washbasins. All fittings in this area should be a minimum of IP44,
unless there is a danger of direct water jet spray in which case IP65
rating is required.
Outside Zones/Zone 3 - There are no special requirements in this
zone in the UK. In Ireland Zone 3 requires IP rated products.
IP Rating (Ingress Protection)
Zone 1
Zone 2
Outside
1000
2000
3000
4000
5000
6000
7000
8000
9000
WARM WHITE
DAYLIGHT WHITE
COOL WHITE
4
5
352
