applicazioni/
applications
Illuminazione di scaffali,
mensole, vetrine./
Decorative lighting,
accent lighting, shelves
and showcases
lighting.
prodotto/
product

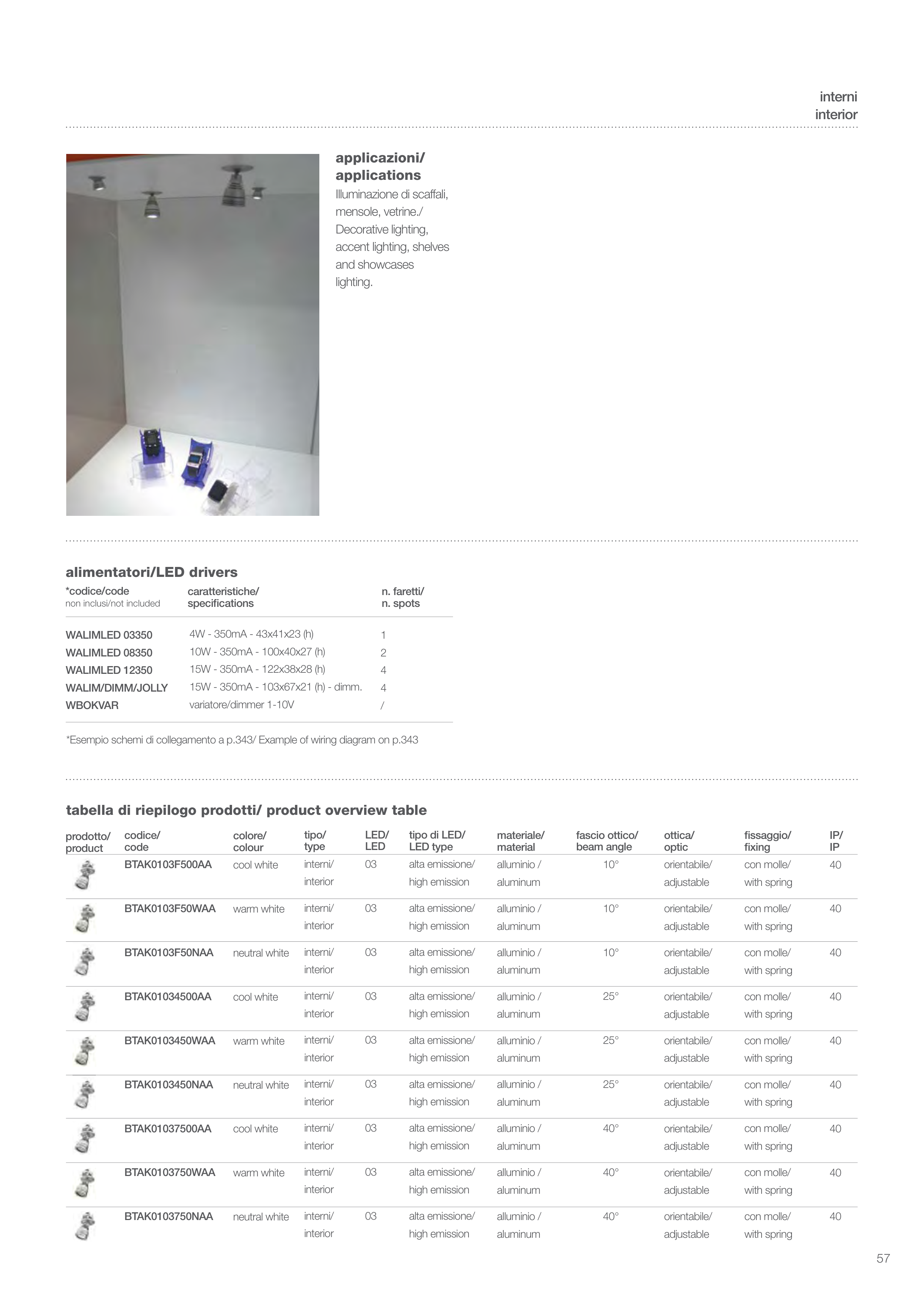

tabella di riepilogo prodotti/ product overview table
codice/
code
BTAK0103F500AA
BTAK0103F50WAA
BTAK0103F50NAA
BTAK01034500AA
BTAK0103450WAA
BTAK0103450NAA
BTAK01037500AA
BTAK0103750WAA
BTAK0103750NAA
colore/
colour
cool white
warm white
neutral white
cool white
warm white
neutral white
cool white
warm white
neutral white
tipo/
type
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
interni/
interior
LED/
LED
03
03
03
03
03
03
03
03
03
tipo di LED/
LED type
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
alta emissione/
high emission
materiale/
material
alluminio /
aluminum
alluminio /
aluminum
alluminio /
aluminum
alluminio /
aluminum
alluminio /
aluminum
alluminio /
aluminum
alluminio /
aluminum
alluminio /
aluminum
alluminio /
aluminum
fascio ottico/
beam angle
10°
10°
10°
25°
25°
25°
40°
40°
40°
ottica/
optic
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
orientabile/
adjustable
fissaggio/
fixing
con molle/
with spring
con molle/
with spring
con molle/
with spring
con molle/
with spring
con molle/
with spring
con molle/
with spring
con molle/
with spring
con molle/
with spring
con molle/
with spring
IP/
IP
40
40
40
40
40
40
40
40
40
*codice/code
non inclusi/not included
n. faretti/
n. spots
caratteristiche/
specifications
1
2
4
4
/
*Esempio schemi di collegamento a p.343/ Example of wiring diagram on p.343
alimentatori/LED drivers
WALIMLED 03350
WALIMLED 08350
WALIMLED 12350
WALIM/DIMM/JOLLY
WBOKVAR
4W - 350mA - 43x41x23 (h)
10W - 350mA - 100x40x27 (h)
15W - 350mA - 122x38x28 (h)
15W - 350mA - 103x67x21 (h) - dimm.
variatore/dimmer 1-10V
57
interior
interni
