13
12
1
2
4
3
5
1
2
3
fig. A/B
fig. A/B
1
2
2
3
4
5
6
7
fig. A/B
fig. A/B
1
2
3
4
5
1
2
3
7
6
4
5
fig. A/B
IP66 Total Protection
Leds and drivers are protected
and have an IP66 rating both
during and after installation.
Functional Elegance
The luminaire’s micro rim covers
the thickness of the outer casing
perfectly and can be positioned
flush with the finished surface
or with a minimal protrusion to
guarantee a clean and elegant,
final effect.
Snap-in
User-friendly and tool-free for
the smaller versions (ø50mm,
45x45mm and 180x45mm), ideal
for residential locations.
Special Wrench
Installation with a special
wrench for urban use versions
(ø200, ø100, 180x180, 90x90
and 270x90 mm) which are both
vandal and tamper-resistant.

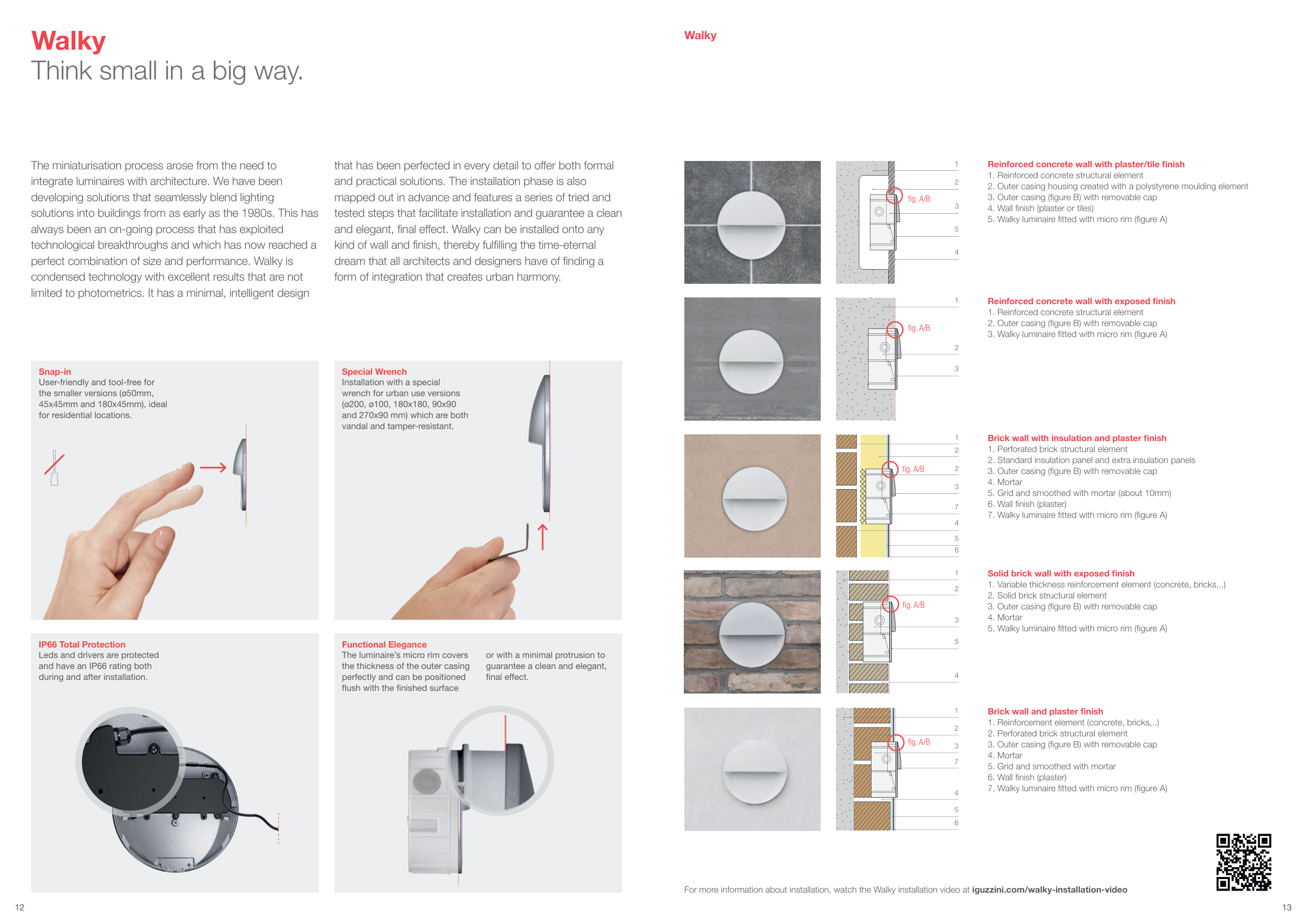

Reinforced concrete wall with plaster/tile finish
1. Reinforced concrete structural element
2. Outer casing housing created with a polystyrene moulding element
3. Outer casing (figure B) with removable cap
4. Wall finish (plaster or tiles)
5. Walky luminaire fitted with micro rim (figure A)
Reinforced concrete wall with exposed finish
1. Reinforced concrete structural element
2. Outer casing (figure B) with removable cap
3. Walky luminaire fitted with micro rim (figure A)
Brick wall with insulation and plaster finish
1. Perforated brick structural element
2. Standard insulation panel and extra insulation panels
3. Outer casing (figure B) with removable cap
4. Mortar
5. Grid and smoothed with mortar (about 10mm)
6. Wall finish (plaster)
7. Walky luminaire fitted with micro rim (figure A)
Solid brick wall with exposed finish
1. Variable thickness reinforcement element (concrete, bricks,..)
2. Solid brick structural element
3. Outer casing (figure B) with removable cap
4. Mortar
5. Walky luminaire fitted with micro rim (figure A)
Brick wall and plaster finish
1. Reinforcement element (concrete, bricks,..)
2. Perforated brick structural element
3. Outer casing (figure B) with removable cap
4. Mortar
5. Grid and smoothed with mortar
6. Wall finish (plaster)
7. Walky luminaire fitted with micro rim (figure A)
For more information about installation, watch the Walky installation video at iguzzini.com/walky-installation-video
The miniaturisation process arose from the need to
integrate luminaires with architecture. We have been
developing solutions that seamlessly blend lighting
solutions into buildings from as early as the 1980s. This has
always been an on-going process that has exploited
technological breakthroughs and which has now reached a
perfect combination of size and performance. Walky is
condensed technology with excellent results that are not
limited to photometrics. It has a minimal, intelligent design
that has been perfected in every detail to offer both formal
and practical solutions. The installation phase is also
mapped out in advance and features a series of tried and
tested steps that facilitate installation and guarantee a clean
and elegant, final effect. Walky can be installed onto any
kind of wall and finish, thereby fulfilling the time-eternal
dream that all architects and designers have of finding a
form of integration that creates urban harmony.
Walky
Think small in a big way.
Walky
