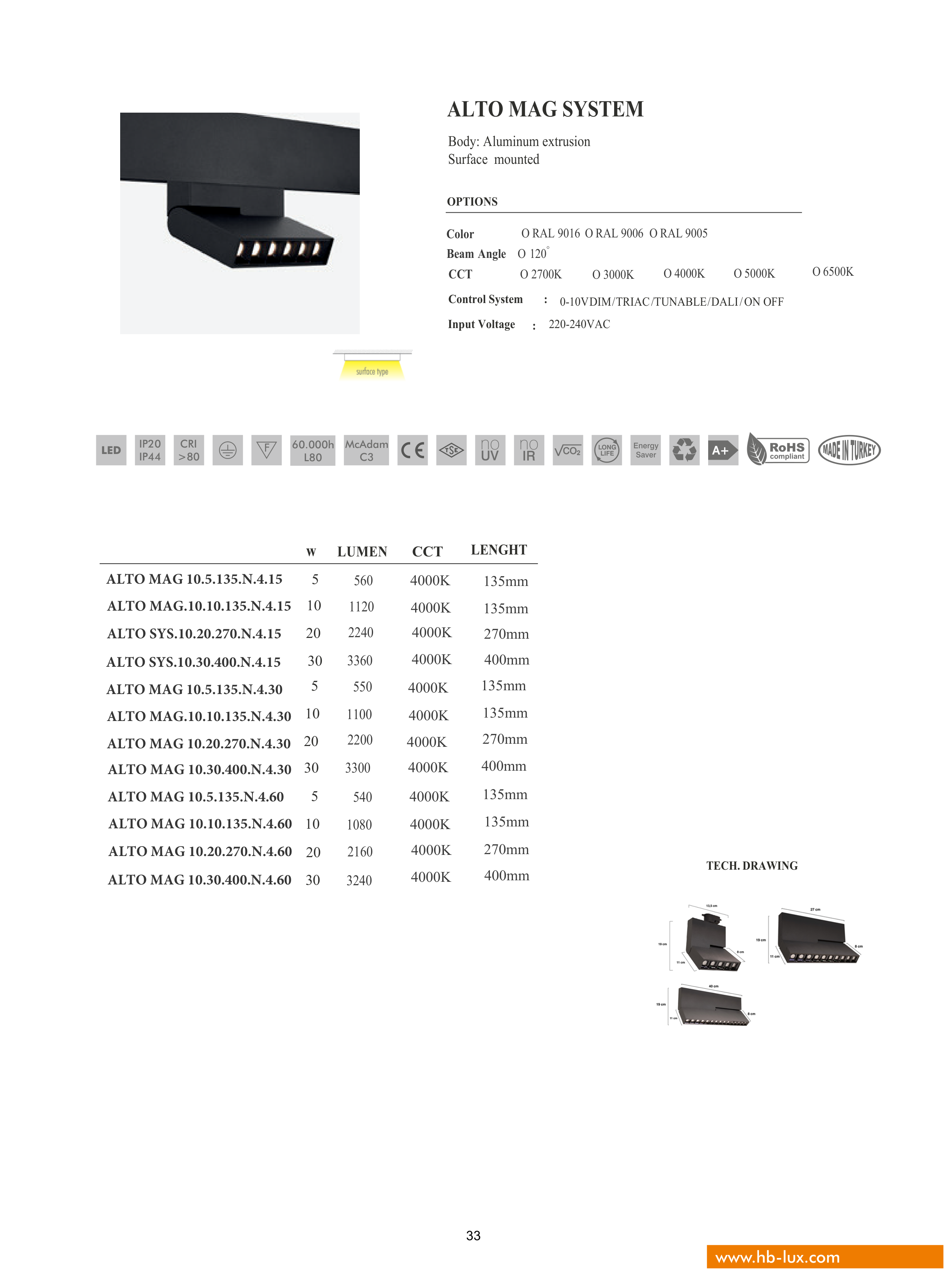

ALTO MAG SYSTEM
TECH. DRAWING
www.hb-lux.com
Color
O RAL 9016 O RAL 9006 O RAL 9005
Beam Angle O 120°
CCT
O 4000K
O 2700K
O 3000K
O 5000K
O 6500K
Body: Aluminum extrusion
Surface mounted
OPTIONS
Control System
:
0-10V DIM / TRIAC /TUNABLE / DALI / ON OFF
Input Voltage :
220-240VAC
LED
IP20
IP44
CRI
>80
60.000h
L80
McAdam
C3
Energy
Saver
A+
5
10
20
w
LUMEN
CCT
4000K
4000K
4000K
LENGHT
135mm
135mm
270mm
560
1120
2240
30
4000K
400mm
3360
ALTO MAG 10.5.135.N.4.15
ALTO MAG.10.10.135.N.4.15
ALTO SYS.10.20.270.N.4.15
ALTO SYS.10.30.400.N.4.15
5
10
20
4000K
4000K
4000K
135mm
135mm
270mm
550
1100
2200
30
4000K
400mm
3300
ALTO MAG 10.5.135.N.4.30
ALTO MAG.10.10.135.N.4.30
ALTO MAG 10.20.270.N.4.30
ALTO MAG 10.30.400.N.4.30
5
10
20
4000K
4000K
4000K
135mm
135mm
270mm
540
1080
2160
30
4000K
400mm
3240
ALTO MAG 10.5.135.N.4.60
ALTO MAG 10.10.135.N.4.60
ALTO MAG 10.20.270.N.4.60
ALTO MAG 10.30.400.N.4.60
33
