90
193
600-900
90
193
600-900
44
128
300-600
codes 5381 5382
codes 5383 5384
24
95
44
ø23
74
68 CHIUSO/CLOSED
214
127.5
42
214
192.5
89
code 5391
code 5391
code 5392
code 5392
code 1944
code 1944
code 1941
code 1941
104
catalogue 2025
105

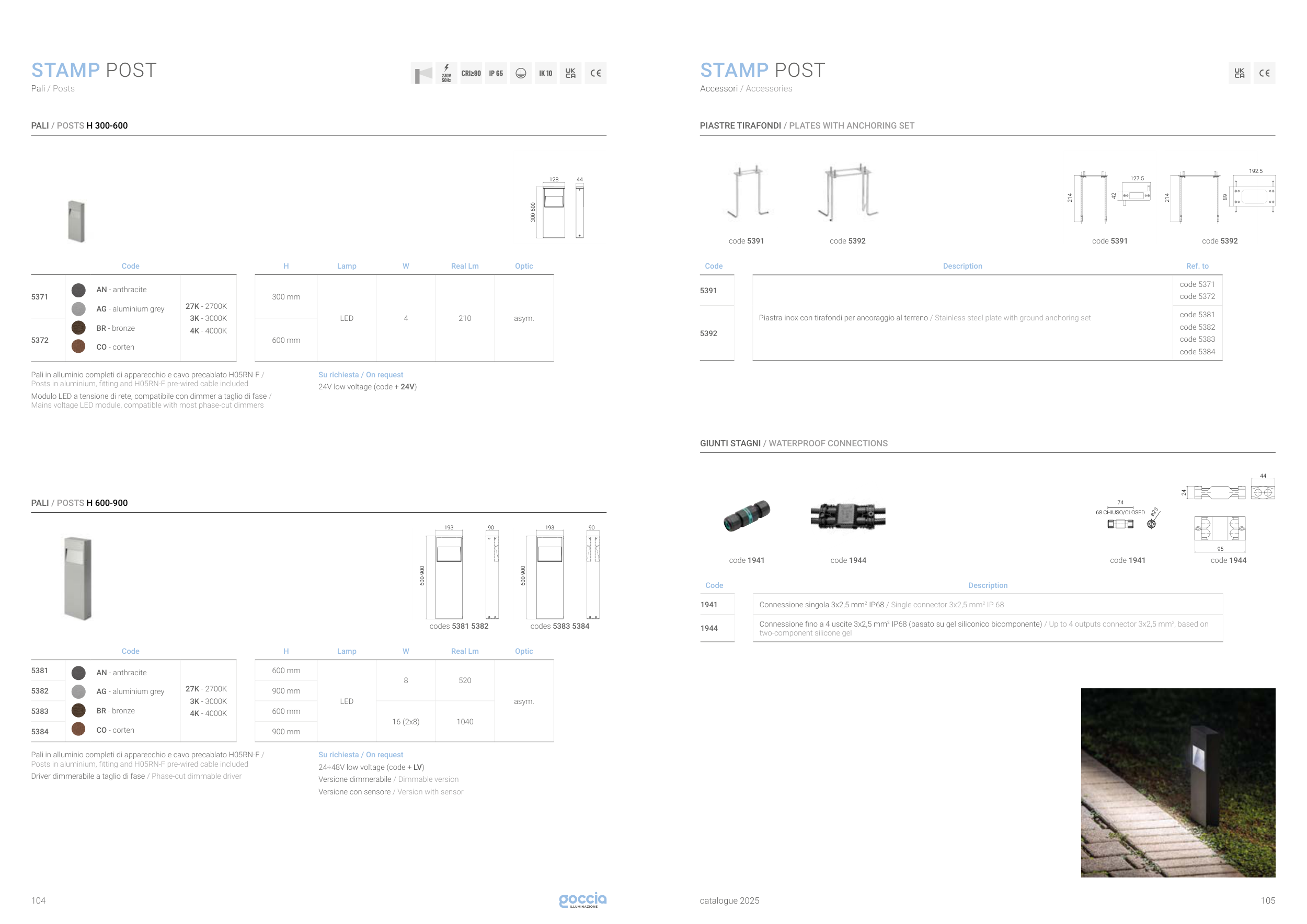

STAMP POST
PALI / POSTS H 300-600
PALI / POSTS H 600-900
Code
H
Lamp
W
Real Lm
Optic
5371
AN - anthracite
AG - aluminium grey
BR - bronze
CO - corten
27K - 2700K
3K - 3000K
4K - 4000K
300 mm
LED
4
210
asym.
5372
600 mm
Pali in alluminio completi di apparecchio e cavo precablato H05RN-F /
Posts in aluminium, fitting and H05RN-F pre-wired cable included
Modulo LED a tensione di rete, compatibile con dimmer a taglio di fase /
Mains voltage LED module, compatible with most phase-cut dimmers
Su richiesta / On request
24V low voltage (code + 24V)
Code
H
Lamp
W
Real Lm
Optic
5381
AN - anthracite
AG - aluminium grey
BR - bronze
CO - corten
27K - 2700K
3K - 3000K
4K - 4000K
600 mm
LED
8
520
asym.
5382
900 mm
5383
600 mm
16 (2x8)
1040
5384
900 mm
Pali in alluminio completi di apparecchio e cavo precablato H05RN-F /
Posts in aluminium, fitting and H05RN-F pre-wired cable included
Driver dimmerabile a taglio di fase / Phase-cut dimmable driver
Su richiesta / On request
24÷48V low voltage (code + LV)
Versione dimmerabile / Dimmable version
Versione con sensore / Version with sensor
Pali / Posts
STAMP POST
Code
Description
Ref. to
5391
Piastra inox con tirafondi per ancoraggio al terreno / Stainless steel plate with ground anchoring set
code 5371
code 5372
5392
code 5381
code 5382
code 5383
code 5384
Accessori / Accessories
PIASTRE TIRAFONDI / PLATES WITH ANCHORING SET
GIUNTI STAGNI / WATERPROOF CONNECTIONS
Code
Description
1941
Connessione singola 3x2,5 mm2 IP68 / Single connector 3x2,5 mm2 IP 68
1944
Connessione fino a 4 uscite 3x2,5 mm2 IP68 (basato su gel siliconico bicomponente) / Up to 4 outputs connector 3x2,5 mm2, based on
two-component silicone gel
