33
130
63
ø23
68
24
95
44
code 1971
code 1972
code 1944
code 1944
code 1941
code 1941
code 1942
code 1942
86
catalogue 2025
87

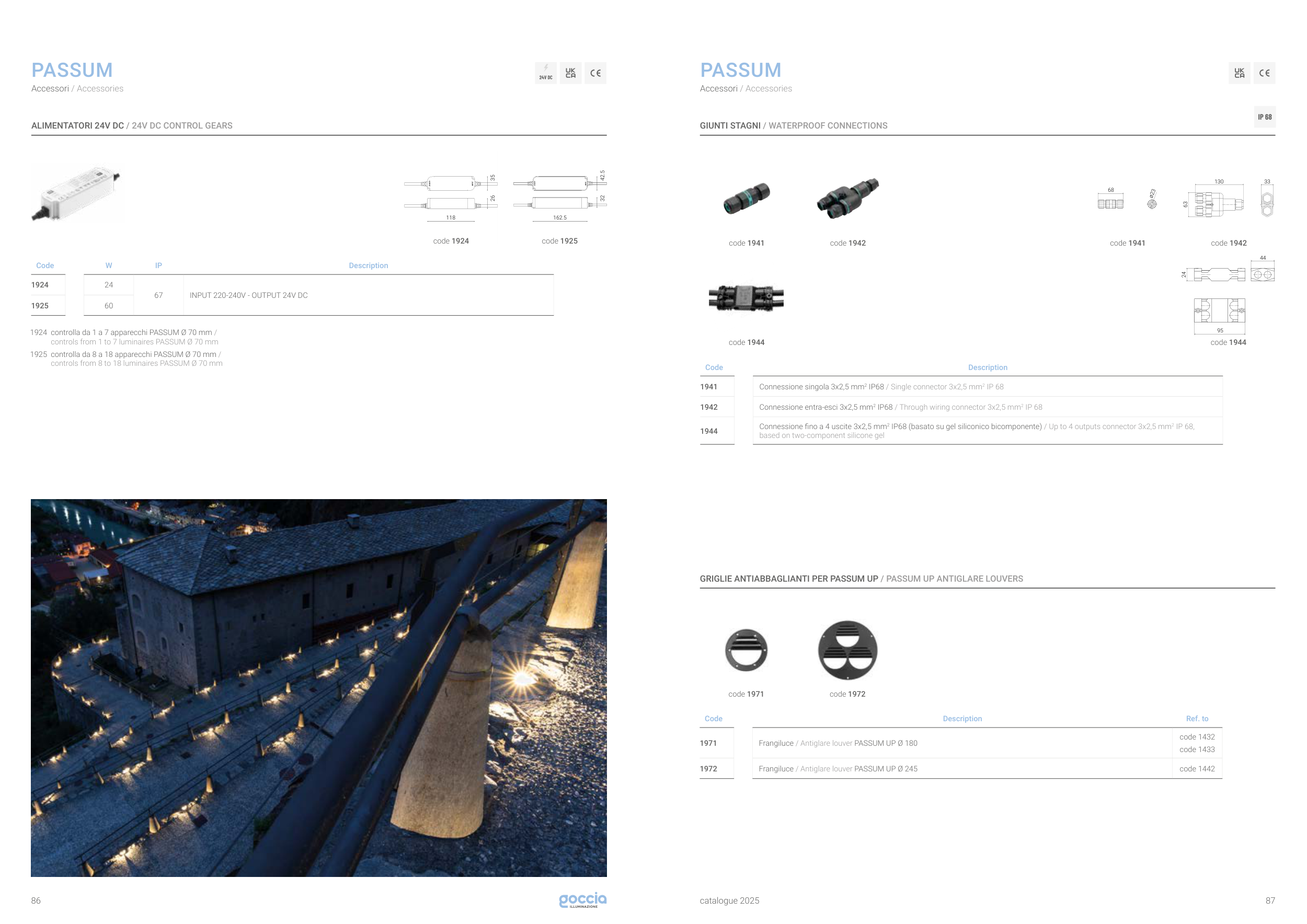

GIUNTI STAGNI / WATERPROOF CONNECTIONS
GRIGLIE ANTIABBAGLIANTI PER PASSUM UP / PASSUM UP ANTIGLARE LOUVERS
PASSUM
PASSUM
Code
Description
1941
Connessione singola 3x2,5 mm2 IP68 / Single connector 3x2,5 mm2 IP 68
1942
Connessione entra-esci 3x2,5 mm2 IP68 / Through wiring connector 3x2,5 mm2 IP 68
1944
Connessione fino a 4 uscite 3x2,5 mm2 IP68 (basato su gel siliconico bicomponente) / Up to 4 outputs connector 3x2,5 mm2 IP 68,
based on two-component silicone gel
Code
Description
Ref. to
1971
Frangiluce / Antiglare louver PASSUM UP Ø 180
code 1432
code 1433
1972
Frangiluce / Antiglare louver PASSUM UP Ø 245
code 1442
Accessori / Accessories
Accessori / Accessories
ALIMENTATORI 24V DC / 24V DC CONTROL GEARS
code 1925
code 1924
Code
W
IP
Description
1924
24
67
INPUT 220-240V - OUTPUT 24V DC
1925
60
1924
1925
controlla da 1 a 7 apparecchi PASSUM Ø 70 mm /
controls from 1 to 7 luminaires PASSUM Ø 70 mm
controlla da 8 a 18 apparecchi PASSUM Ø 70 mm /
controls from 8 to 18 luminaires PASSUM Ø 70 mm
118
35
26
162.5
42.5
32
