All measurements in mm.

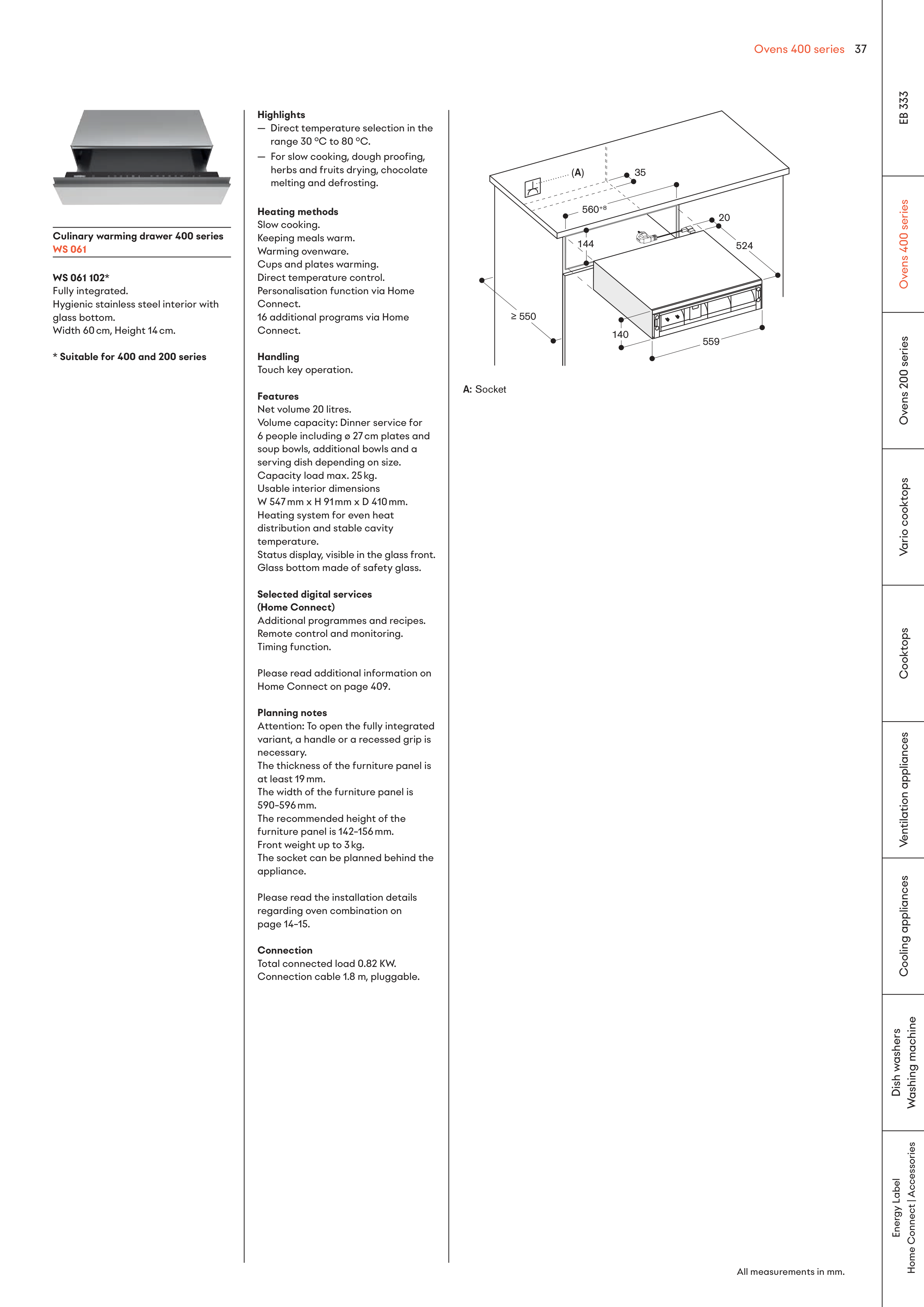

Culinary warming drawer 400 series
W S 061
W S 061 102*
Fully integrated.
Hygienic stainless steel interior with
glass bottom.
Width 60 cm, Height 14 cm.
* Suitable for 400 and 200 series
Highlights
— Direct temperature selection in the
range 30 °C to 80 °C.
— For slow cooking, dough proofing,
herbs and fruits drying, chocolate
melting and defrosting.
Heating methods
Slow cooking.
Keeping meals warm.
Warming ovenware.
Cups and plates warming.
Direct temperature control.
Personalisation function via Home
Connect.
16 additional programs via Home
Connect.
Handling
Touch key operation.
Features
Net volume 20 litres.
Volume capacity: Dinner service for
6 people including ø 27 cm plates and
soup bowls, additional bowls and a
serving dish depending on size.
Capacity load max. 25 kg.
Usable interior dimensions
W 547 mm x H 91 mm x D 410 mm.
Heating system for even heat
distribution and stable cavity
temperature.
Status display, visible in the glass front.
Glass bottom made of safety glass.
Selected digital services
(Home Connect)
Additional programmes and recipes.
Remote control and monitoring.
Timing function.
Please read additional information on
Home Connect on page 409.
Planning notes
Attention: To open the fully integrated
variant, a handle or a recessed grip is
necessary.
The thickness of the furniture panel is
at least 19 mm.
The width of the furniture panel is
590–596 mm.
The recommended height of the
furniture panel is 142–156 mm.
Front weight up to 3 kg.
The socket can be planned behind the
appliance.
Please read the installation details
regarding oven combination on
page 14–15.
Connection
Total connected load 0.82 KW.
Connection cable 1.8 m, pluggable.
Socket
A:
Measurements in mm
560+8
35
(
A
)
20
524
559
140
144
≥ 550
