All measurements in mm.

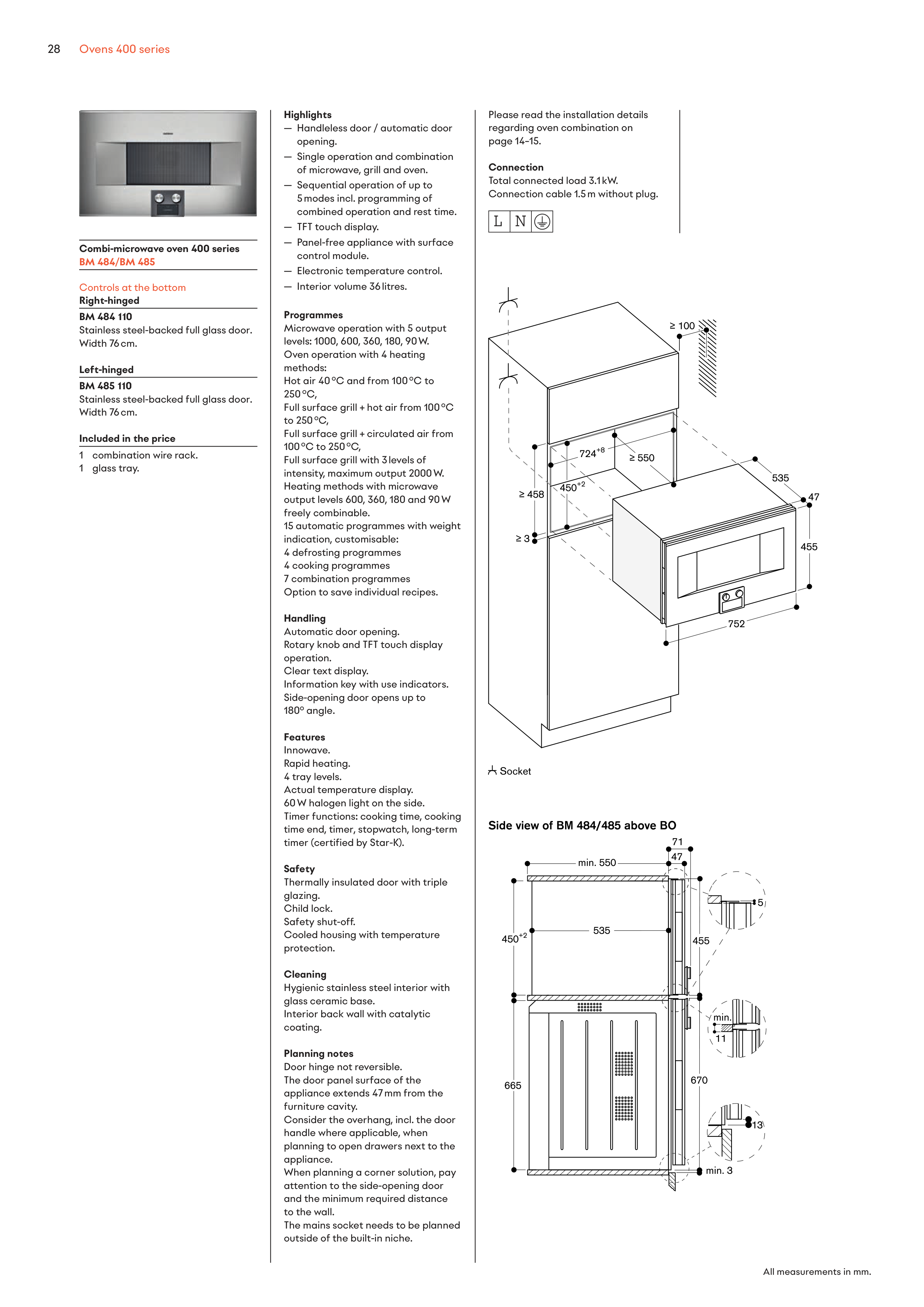

Combi-microwave oven 400 series
B M 484/B M 485
Controls at the bottom
Right-hinged
B M 484 110
Stainless steel-backed full glass door.
Width 76 cm.
Left-hinged
B M 485 110
Stainless steel-backed full glass door.
Width 76 cm.
Included in the price
1 combination wire rack.
1 glass tray.
Highlights
— Handleless door / automatic door
opening.
— Single operation and combination
of microwave, grill and oven.
— Sequential operation of up to
5 modes incl. programming of
combined operation and rest time.
— TFT touch display.
— Panel-free appliance with surface
control module.
— Electronic temperature control.
— Interior volume 36 litres.
Programmes
Microwave operation with 5 output
levels: 1000, 600, 360, 180, 90 W.
Oven operation with 4 heating
methods:
Hot air 40 °C and from 100 °C to
250 °C,
Full surface grill + hot air from 100 °C
to 250 °C,
Full surface grill + circulated air from
100 °C to 250 °C,
Full surface grill with 3 levels of
intensity, maximum output 2000 W.
Heating methods with microwave
output levels 600, 360, 180 and 90 W
freely combinable.
15 automatic programmes with weight
indication, customisable:
4 defrosting programmes
4 cooking programmes
7 combination programmes
Option to save individual recipes.
Handling
Automatic door opening.
Rotary knob and TFT touch display
operation.
Clear text display.
Information key with use indicators.
Side-opening door opens up to
180° angle.
Features
Innowave.
Rapid heating.
4 tray levels.
Actual temperature display.
60 W halogen light on the side.
Timer functions: cooking time, cooking
time end, timer, stopwatch, long-term
timer (certified by Star-K).
Safety
Thermally insulated door with triple
glazing.
Child lock.
Safety shut-off.
Cooled housing with temperature
protection.
Cleaning
Hygienic stainless steel interior with
glass ceramic base.
Interior back wall with catalytic
coating.
Planning notes
Door hinge not reversible.
The door panel surface of the
appliance extends 47 mm from the
furniture cavity.
Consider the overhang, incl. the door
handle where applicable, when
planning to open drawers next to the
appliance.
When planning a corner solution, pay
attention to the side-opening door
and the minimum required distance
to the wall.
The mains socket needs to be planned
outside of the built-in niche.
Please read the installation details
regarding oven combination on
page 14–15.
Connection
Total connected load 3.1 kW.
Connection cable 1.5 m without plug.
Ovens 400 series
28
