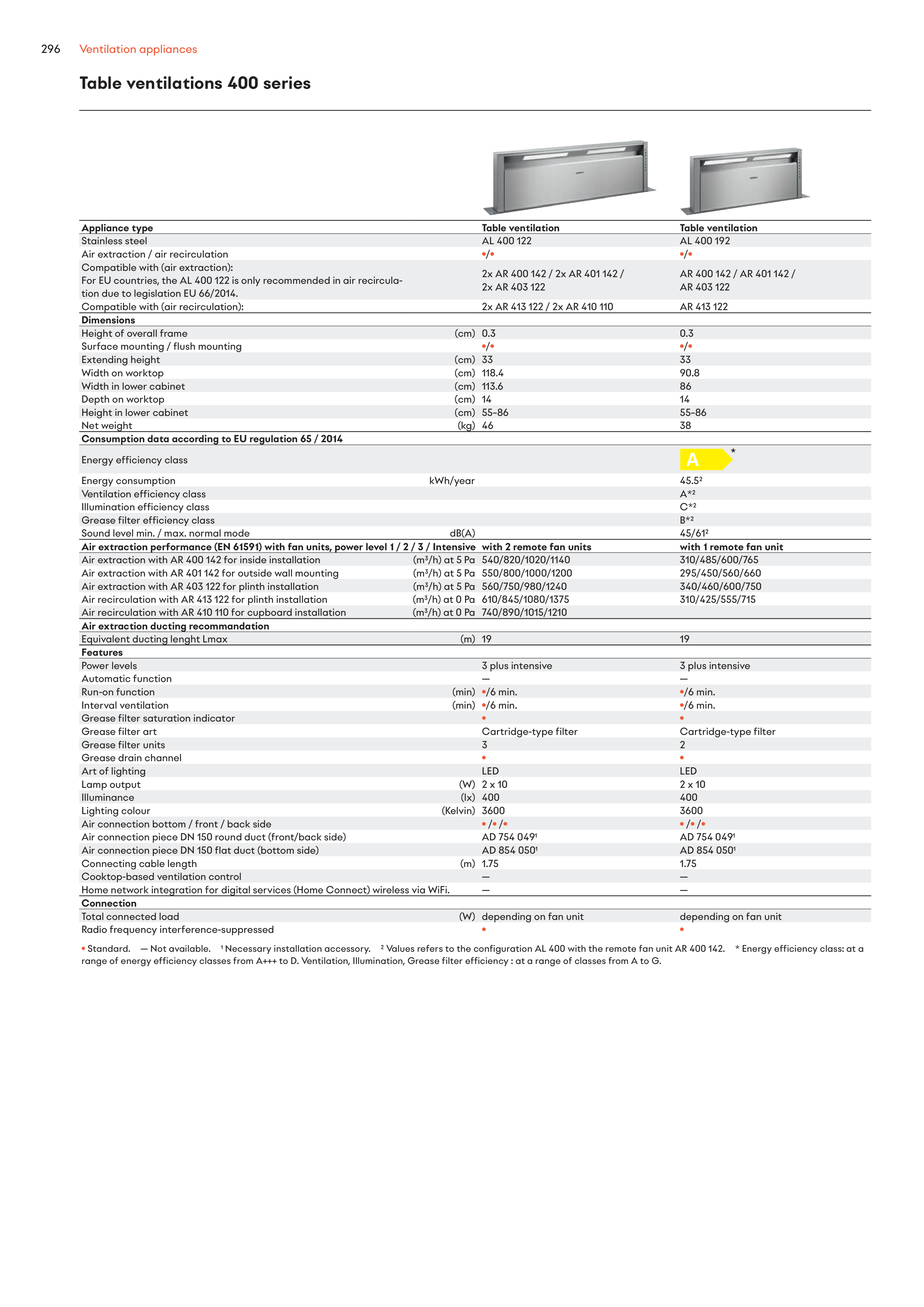

Table ventilations 400 series
Appliance type
Table ventilation
Table ventilation
Stainless steel
AL 400 122
AL 400 192
Air extraction / air recirculation
•/•
•/•
Compatible with (air extraction):
For EU countries, the AL 400 122 is only recommended in air recircula-
tion due to legislation EU 66/2014.
2x AR 400 142 / 2x AR 401 142 /
2x AR 403 122
AR 400 142 / AR 401 142 /
AR 403 122
Compatible with (air recirculation):
2x AR 413 122 / 2x AR 410 110
AR 413 122
Dimensions
Height of overall frame
(cm) 0.3
0.3
Surface mounting / flush mounting
•/•
•/•
Extending height
(cm) 33
33
Width on worktop
(cm) 118.4
90.8
Width in lower cabinet
(cm) 113.6
86
Depth on worktop
(cm) 14
14
Height in lower cabinet
(cm) 55–86
55–86
Net weight
(kg) 46
38
Consumption data according to EU regulation 65 / 2014
Energy efficiency class
A
Energy consumption
kWh/year
45.5²
Ventilation efficiency class
A*²
Illumination efficiency class
C*²
Grease filter efficiency class
B*²
Sound level min. / max. normal mode
dB(A)
45/61²
Air extraction performance (EN 61591) with fan units, power level 1 / 2 / 3 / Intensive with 2 remote fan units
with 1 remote fan unit
Air extraction with AR 400 142 for inside installation
(m³/h) at 5 Pa 540/820/1020/1140
310/485/600/765
Air extraction with AR 401 142 for outside wall mounting
(m³/h) at 5 Pa 550/800/1000/1200
295/450/560/660
Air extraction with AR 403 122 for plinth installation
(m³/h) at 5 Pa 560/750/980/1240
340/460/600/750
Air recirculation with AR 413 122 for plinth installation
(m³/h) at 0 Pa 610/845/1080/1375
310/425/555/715
Air recirculation with AR 410 110 for cupboard installation
(m³/h) at 0 Pa 740/890/1015/1210
Air extraction ducting recommandation
Equivalent ducting lenght Lmax
(m) 19
19
Features
Power levels
3 plus intensive
3 plus intensive
Automatic function
—
—
Run-on function
(min) •/6 min.
•/6 min.
Interval ventilation
(min) •/6 min.
•/6 min.
Grease filter saturation indicator
•
•
Grease filter art
Cartridge-type filter
Cartridge-type filter
Grease filter units
3
2
Grease drain channel
•
•
Art of lighting
LED
LED
Lamp output
(W) 2 x 10
2 x 10
Illuminance
(lx) 400
400
Lighting colour
(Kelvin) 3600
3600
Air connection bottom / front / back side
• /• /•
• /• /•
Air connection piece DN 150 round duct (front/back side)
AD 754 049¹
AD 754 049¹
Air connection piece DN 150 flat duct (bottom side)
AD 854 050¹
AD 854 050¹
Connecting cable length
(m) 1.75
1.75
Cooktop-based ventilation control
—
—
Home network integration for digital services (Home Connect) wireless via WiFi.
—
—
Connection
Total connected load
(W) depending on fan unit
depending on fan unit
Radio frequency interference-suppressed
•
•
• Standard. — Not available. ¹ Necessary installation accessory. ² Values refers to the configuration AL 400 with the remote fan unit AR 400 142. * Energy efficiency class: at a
range of energy efficiency classes from A+++ to D. Ventilation, Illumination, Grease filter efficiency : at a range of classes from A to G.
