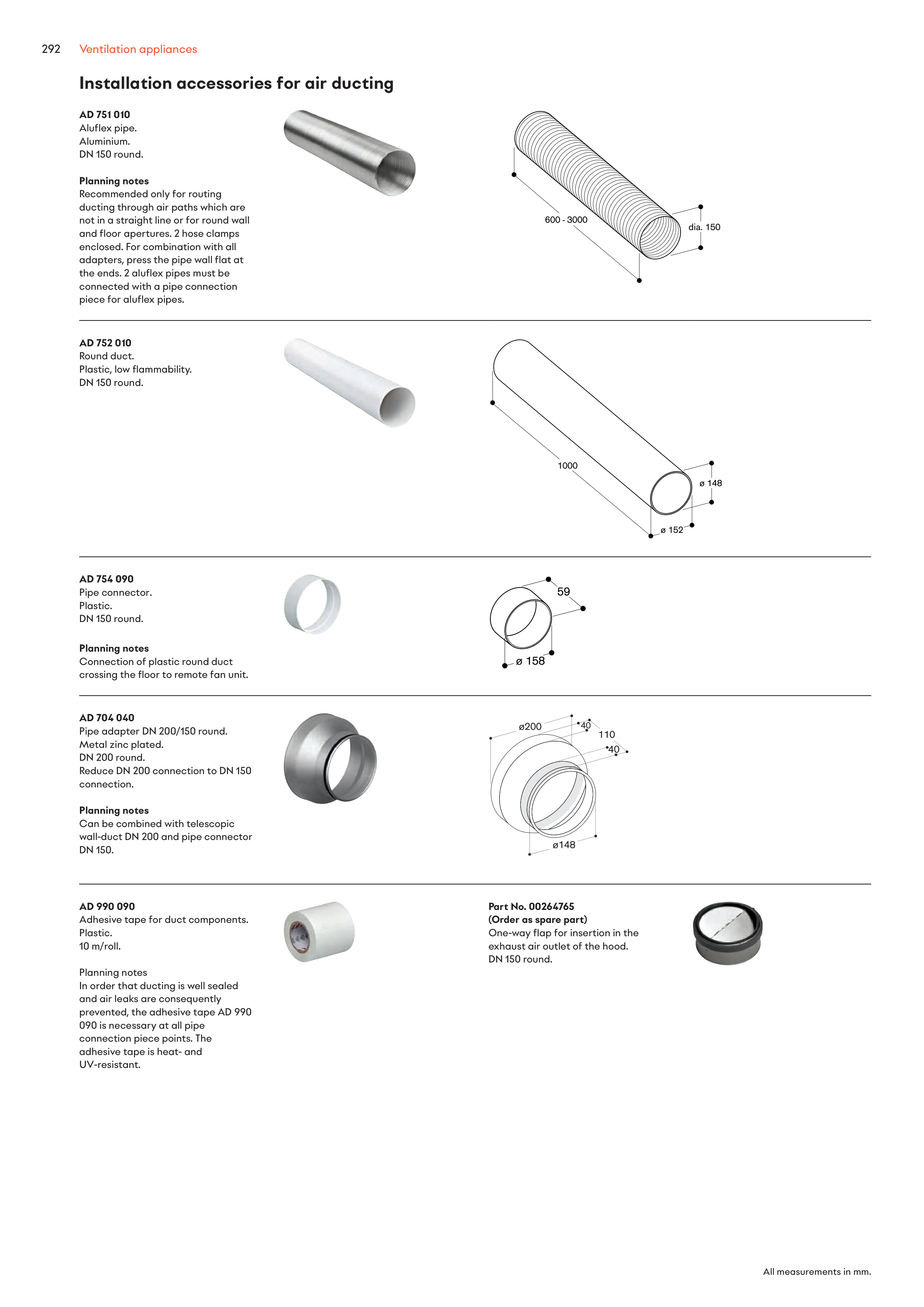

Installation accessories for air ducting
All measurements in mm.
A D 751 010
Aluflex pipe.
Aluminium.
DN 150 round.
Planning notes
Recommended only for routing
ducting through air paths which are
not in a straight line or for round wall
and floor apertures. 2 hose clamps
enclosed. For combination with all
adapters, press the pipe wall flat at
the ends. 2 aluflex pipes must be
connected with a pipe connection
piece for aluflex pipes.
A D 752 010
Round duct.
Plastic, low flammability.
DN 150 round.
A D 754 090
Pipe connector.
Plastic.
DN 150 round.
Planning notes
Connection of plastic round duct
crossing the floor to remote fan unit.
A D 704 040
Pipe adapter DN 200/150 round.
Metal zinc plated.
DN 200 round.
Reduce DN 200 connection to DN 150
connection.
Planning notes
Can be combined with telescopic
wall-duct DN 200 and pipe connector
DN 150.
A D 990 090
Adhesive tape for duct components.
Plastic.
10 m/roll.
Planning notes
In order that ducting is well sealed
and air leaks are consequently
prevented, the adhesive tape AD 990
090 is necessary at all pipe
connection piece points. The
adhesive tape is heat- and
UV-resistant.
Part No. 00264765
(Order as spare part)
One-way flap for insertion in the
exhaust air outlet of the hood.
DN 150 round.
Ventilation appliances
292
