All measurements in mm.
A: 6.5+0.5
B:
R 5
R 10
Please check the installation manual in case the worktop depth
is below 600 mm.
measurements in mm
≥ 50
≥ 35
1500
≥ 600 (B)
512
572
56
500+2
576±1
516±1
560+2
(A)
90°

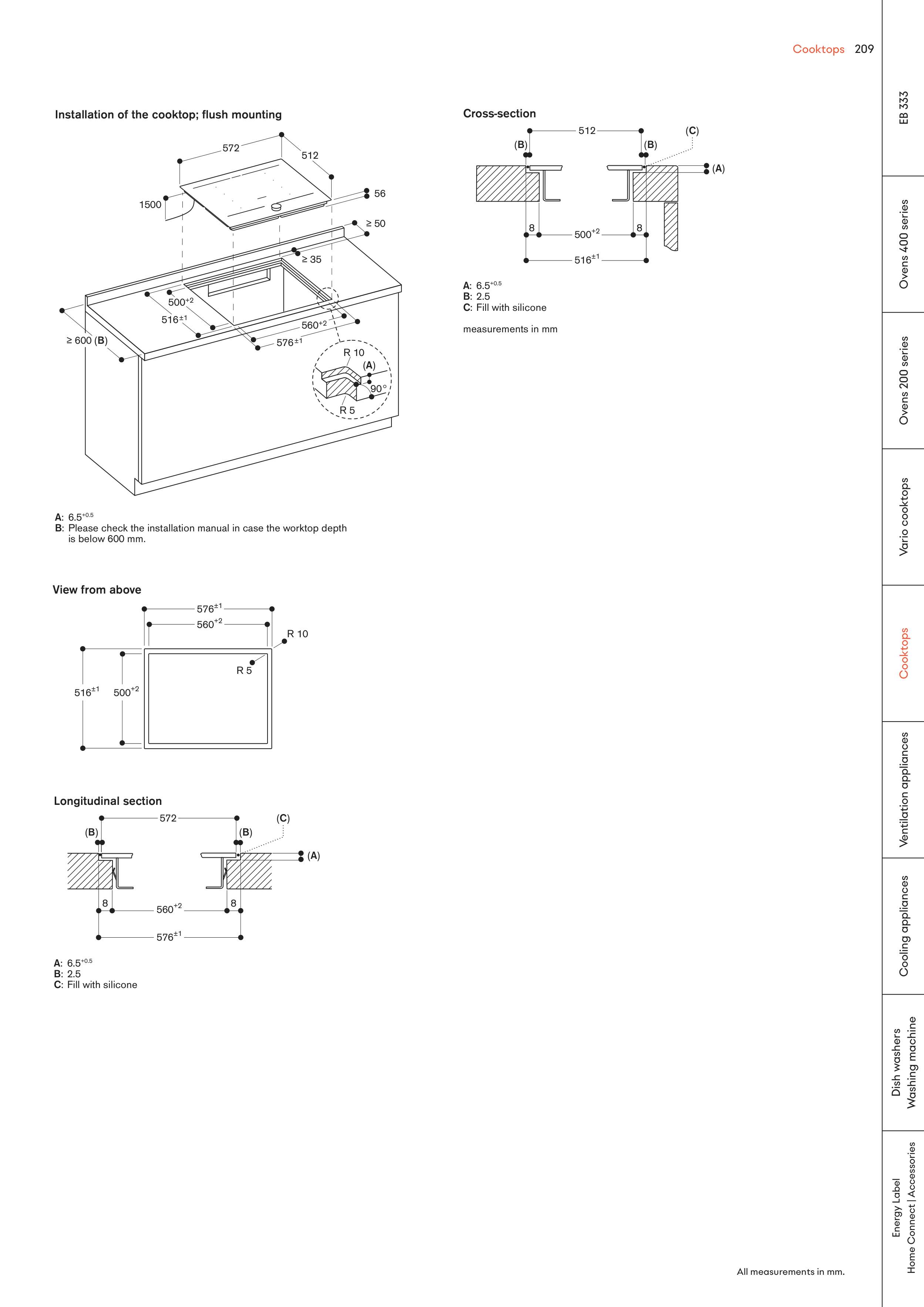

Installation of the cooktop; flush mounting
View from above
measurements in mm
576±1
516±1
500+2
560+2
R 5
R 10
Cross-section
A: 6.5+0.5
B: 2.5
C: Fill with silicone
measurements in mm
500+2
516±1
8
8
512
(C)
(A)
(B)
(B)
Longitudinal section
A: 6.5+0.5
B: 2.5
C: Fill with silicone
measurements in mm
(A)
560+2
572
576±1
(B)
(B)
8
8
(C)
