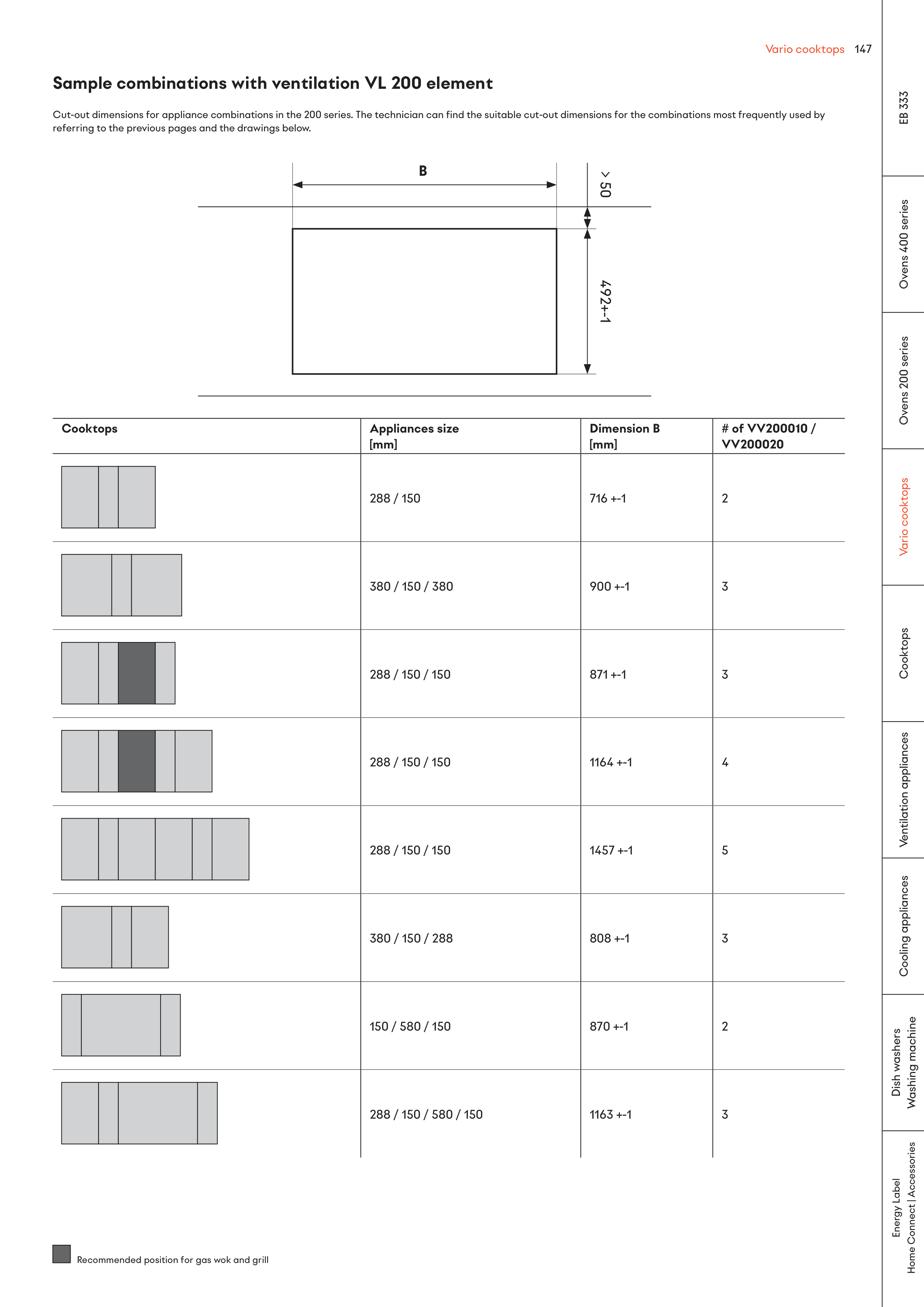

Sample combinations with ventilation VL 200 element
Cut-out dimensions for appliance combinations in the 200 series. The technician can find the suitable cut-out dimensions for the combinations most frequently used by
referring to the previous pages and the drawings below.
Cooktops
Appliances size
[mm]
Dimension B
[mm]
# of VV200010 /
VV200020
288 / 150
716 +-1
2
380 / 150 / 380
900 +-1
3
288 / 150 / 150
871 +-1
3
288 / 150 / 150
1164 +-1
4
288 / 150 / 150
1457 +-1
5
380 / 150 / 288
808 +-1
3
150 / 580 / 150
870 +-1
2
288 / 150 / 580 / 150
1163 +-1
3
B
> 50
492+-1
Recommended position for gas wok and grill
