All measurements in mm.

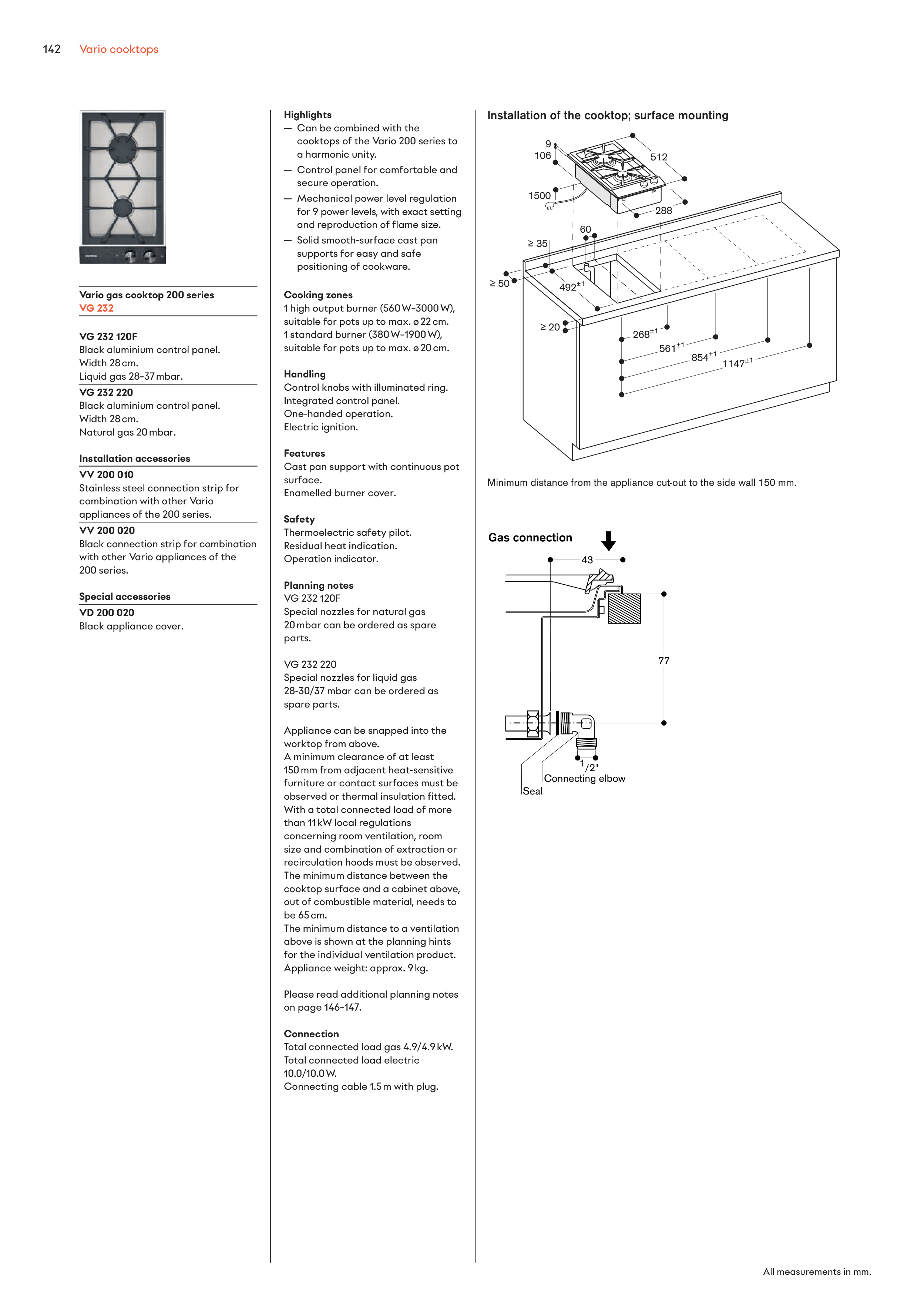

Vario gas cooktop 200 series
V G 232
V G 232 120F
Black aluminium control panel.
Width 28 cm.
Liquid gas 28–37 mbar.
V G 232 220
Black aluminium control panel.
Width 28 cm.
Natural gas 20 mbar.
Installation accessories
V V 200 010
Stainless steel connection strip for
combination with other Vario
appliances of the 200 series.
V V 200 020
Black connection strip for combination
with other Vario appliances of the
200 series.
Special accessories
V D 200 020
Black appliance cover.
Highlights
— Can be combined with the
cooktops of the Vario 200 series to
a harmonic unity.
— Control panel for comfortable and
secure operation.
— Mechanical power level regulation
for 9 power levels, with exact setting
and reproduction of flame size.
— Solid smooth-surface cast pan
supports for easy and safe
positioning of cookware.
Cooking zones
1 high output burner (560 W–3000 W),
suitable for pots up to max. ø 22 cm.
1 standard burner (380 W–1900 W),
suitable for pots up to max. ø 20 cm.
Handling
Control knobs with illuminated ring.
Integrated control panel.
One-handed operation.
Electric ignition.
Features
Cast pan support with continuous pot
surface.
Enamelled burner cover.
Safety
Thermoelectric safety pilot.
Residual heat indication.
Operation indicator.
Planning notes
VG 232 120F
Special nozzles for natural gas
20 mbar can be ordered as spare
parts.
VG 232 220
Special nozzles for liquid gas
28-30/37 mbar can be ordered as
spare parts.
Appliance can be snapped into the
worktop from above.
A minimum clearance of at least
150 mm from adjacent heat-sensitive
furniture or contact surfaces must be
observed or thermal insulation fitted.
With a total connected load of more
than 11 kW local regulations
concerning room ventilation, room
size and combination of extraction or
recirculation hoods must be observed.
The minimum distance between the
cooktop surface and a cabinet above,
out of combustible material, needs to
be 65 cm.
The minimum distance to a ventilation
above is shown at the planning hints
for the individual ventilation product.
Appliance weight: approx. 9 kg.
Please read additional planning notes
on page 146–147.
Connection
Total connected load gas 4.9/4.9 kW.
Total connected load electric
10.0/10.0 W.
Connecting cable 1.5 m with plug.
Installation of the cooktop; surface mounting
Vario cooktops
142
