This checklist provides the most
relevant parameters for the perfect
combination and ordering of ovens,
Combi-steam ovens,
Combi-microwave ovens, fully
automatic espresso machine,
vacuuming drawers,
warming drawers and dishwashers.
In general
— All appliances shown can be
obtained with stainless-steel-
backed full glass doors.
— When several appliances are listed
(BS/BM and DV/WS), the first
appliance is shown.
Vertical combinations
When planning and ordering please
note that
— The door hinges of the appliances
must be on the same side.
— The door hinge (right-/left-hinged)
is not reversible.
— The width of the appliances is
identical.
— The control modules of the two
appliances should meet each
other in the middle of the
combination.
— No further appliances may be
fitted above the BS.
— Only appliances with controls at
the top can be installed above a
dishwasher. The niche for
appliances that are installed
above it must be 56 cm wide. The
dishwasher is 60 cm wide. A
stainless-steel-backed full glass
door can be obtained as a special
accessory.
Horizontal combinations
When planning and ordering please
note that
— The door hinges need to be placed
on the outside in order to use the
full available door opening angle.
— The door hinge (right-/left-hinged)
is not reversible.
— A minimum clearance of 10 mm
between the two doors must be
observed.
— Combi-steam ovens,
Combi-microwave ovens and fully
automatic espresso machine in
combination with a vacuuming
drawer or a warming drawer
(14 cm in height) have the same
total height as a 60 cm wide oven.
— The control modules are either all
at the top or all at the bottom.
BO Ovens
BS
Combi-steam ovens
BM Combi-microwave ovens
CM Fully automatic espresso machine
DV Vacuuming drawers
WS Warming drawers
DF
Dishwashers

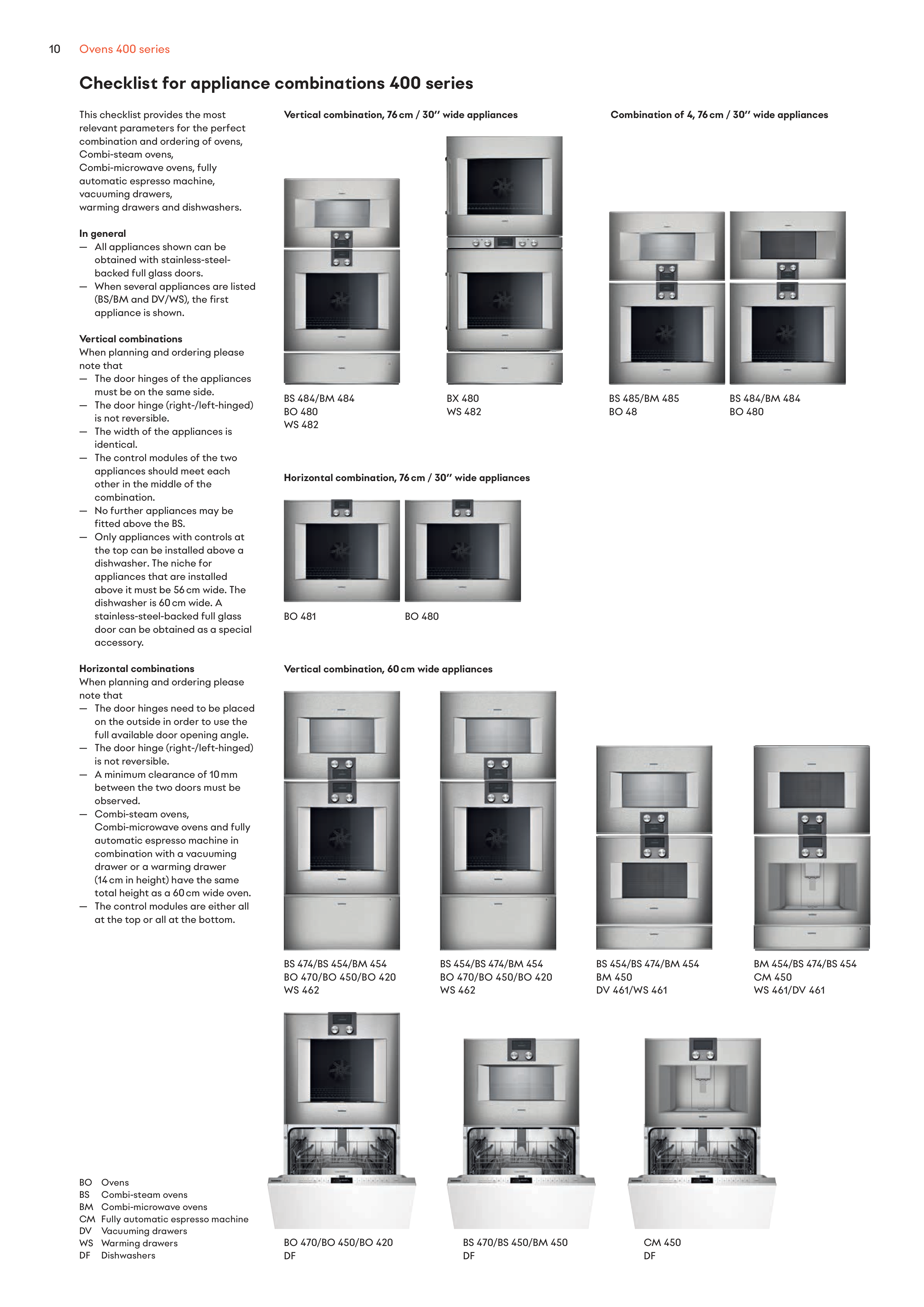

Checklist for appliance combinations 400 series
BS 484/BM 484
BO 480
WS 482
BS 485/BM 485
BO 48
BS 484/BM 484
BO 480
BO 481
BO 470/BO 450/BO 420
DF
BS 470/BS 450/BM 450
DF
CM 450
DF
BS 474/BS 454/BM 454
BO 470/BO 450/BO 420
WS 462
BS 454/BS 474/BM 454
BO 470/BO 450/BO 420
WS 462
BS 454/BS 474/BM 454
BM 450
DV 461/WS 461
BM 454/BS 474/BS 454
CM 450
WS 461/DV 461
BO 480
BX 480
WS 482
Vertical combination, 60 cm wide appliances
Vertical combination, 76 cm / 30’’ wide appliances
Combination of 4, 76 cm / 30’’ wide appliances
Horizontal combination, 76 cm / 30’’ wide appliances
Ovens 400 series
