22
23

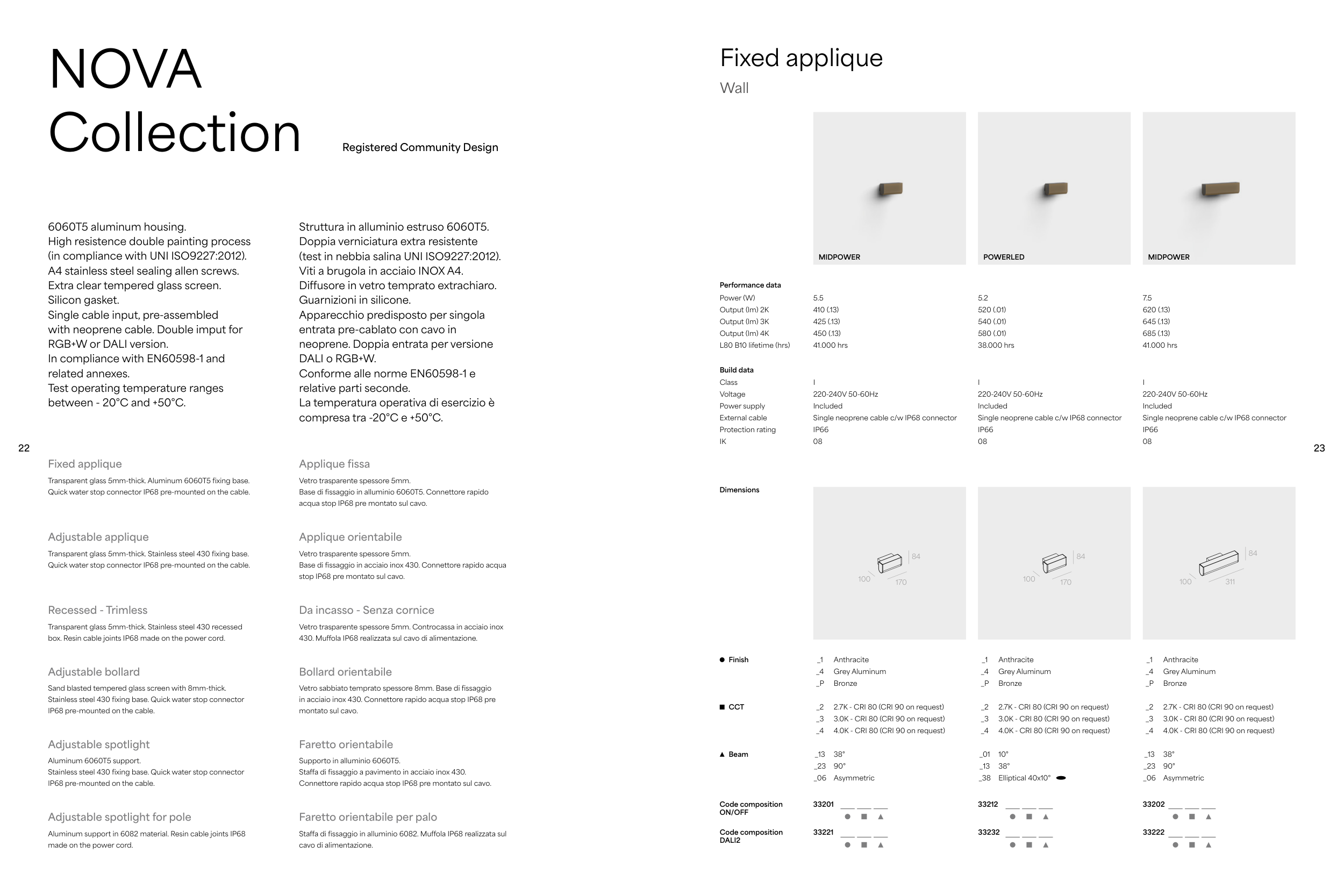

NOVA
Collection
Registered Community Design
Struttura in alluminio estruso 6060T5.
Doppia verniciatura extra resistente
(test in nebbia salina UNI ISO9227:2012).
Viti a brugola in acciaio INOX A4.
Diffusore in vetro temprato extrachiaro.
Guarnizioni in silicone.
Apparecchio predisposto per singola
entrata pre-cablato con cavo in
neoprene. Doppia entrata per versione
DALI o RGB+W.
Conforme alle norme EN60598-1 e
relative parti seconde.
La temperatura operativa di esercizio è
compresa tra -20°C e +50°C.
6060T5 aluminum housing.
High resistence double painting process
(in compliance with UNI ISO9227:2012).
A4 stainless steel sealing allen screws.
Extra clear tempered glass screen.
Silicon gasket.
Single cable input, pre-assembled
with neoprene cable. Double imput for
RGB+W or DALI version.
In compliance with EN60598-1 and
related annexes.
Test operating temperature ranges
between - 20°C and +50°C.
Vetro trasparente spessore 5mm.
Base di fissaggio in alluminio 6060T5. Connettore rapido
acqua stop IP68 pre montato sul cavo.
Applique fissa
Fixed applique
Transparent glass 5mm-thick. Aluminum 6060T5 fixing base.
Quick water stop connector IP68 pre-mounted on the cable.
Adjustable applique
Transparent glass 5mm-thick. Stainless steel 430 fixing base.
Quick water stop connector IP68 pre-mounted on the cable.
Applique orientabile
Vetro trasparente spessore 5mm.
Base di fissaggio in acciaio inox 430. Connettore rapido acqua
stop IP68 pre montato sul cavo.
Recessed - Trimless
Transparent glass 5mm-thick. Stainless steel 430 recessed
box. Resin cable joints IP68 made on the power cord.
Da incasso - Senza cornice
Vetro trasparente spessore 5mm. Controcassa in acciaio inox
430. Muffola IP68 realizzata sul cavo di alimentazione.
Adjustable bollard
Sand blasted tempered glass screen with 8mm-thick.
Stainless steel 430 fixing base. Quick water stop connector
IP68 pre-mounted on the cable.
Bollard orientabile
Vetro sabbiato temprato spessore 8mm. Base di fissaggio
in acciaio inox 430. Connettore rapido acqua stop IP68 pre
montato sul cavo.
Adjustable spotlight
Aluminum 6060T5 support.
Stainless steel 430 fixing base. Quick water stop connector
IP68 pre-mounted on the cable.
Faretto orientabile
Supporto in alluminio 6060T5.
Staffa di fissaggio a pavimento in acciaio inox 430.
Connettore rapido acqua stop IP68 pre montato sul cavo.
Adjustable spotlight for pole
Aluminum support in 6082 material. Resin cable joints IP68
made on the power cord.
Faretto orientabile per palo
Staffa di fissaggio in alluminio 6082. Muffola IP68 realizzata sul
cavo di alimentazione.
Fixed applique
Wall
Finish
_1
Anthracite
_1
Anthracite
_1
Anthracite
_4
Grey Aluminum
_4
Grey Aluminum
_4
Grey Aluminum
_P
Bronze
_P
Bronze
_P
Bronze
CCT
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_2
2.7K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_3
3.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
_4
4.0K - CRI 80 (CRI 90 on request)
Beam
_13
38°
_01
10°
_13
38°
_23
90°
_13
38°
_23
90°
_06
Asymmetric
_38
Elliptical 40x10°
_06
Asymmetric
Performance data
Power (W)
5.5
5.2
7.5
Output (lm) 2K
410 (.13)
520 (.01)
620 (.13)
Output (lm) 3K
425 (.13)
540 (.01)
645 (.13)
Output (lm) 4K
450 (.13)
580 (.01)
685 (.13)
L80 B10 lifetime (hrs)
41.000 hrs
38.000 hrs
41.000 hrs
Build data
Class
I
I
I
Voltage
220-240V 50-60Hz
220-240V 50-60Hz
220-240V 50-60Hz
Power supply
Included
Included
Included
External cable
Single neoprene cable c/w IP68 connector
Single neoprene cable c/w IP68 connector
Single neoprene cable c/w IP68 connector
Protection rating
IP66
IP66
IP66
IK
08
08
08
Code composition
ON/OFF
33201
33212
33202
Dimensions
MIDPOWER
MIDPOWER
POWERLED
Code composition
DALI2
33221
33232
33222
100
170
84
100
170
84
100
311
84
