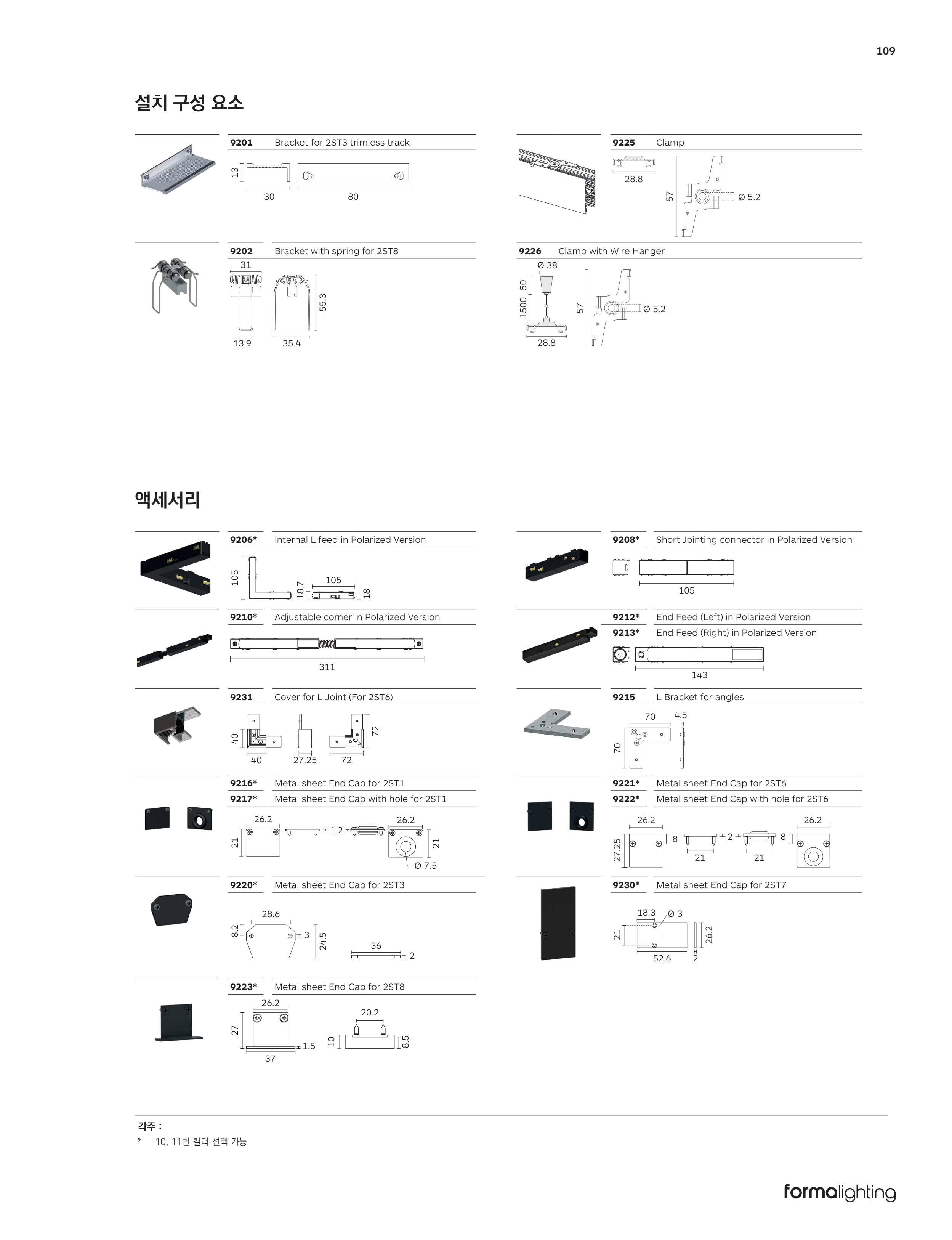

109
각주 :
*
10, 11번 컬러 선택 가능
설치 구성 요소
9201
Bracket for 2ST3 trimless track
9225
Clamp
13
80
30
28.8
57
Ø 5.2
9202
Bracket with spring for 2ST8
9226
Clamp with Wire Hanger
55.3
31
13.9
35.4
28.8
57
50
1500
Ø 5.2
Ø 38
액세서리
9206*
Internal L feed in Polarized Version
9208*
Short Jointing connector in Polarized Version
105
18.7
18
105
105
9210*
Adjustable corner in Polarized Version
9212*
End Feed (Left) in Polarized Version
311
9213*
End Feed (Right) in Polarized Version
143
9231
Cover for L Joint (For 2ST6)
9215
L Bracket for angles
40
72
72
40
27.25
70
70
4.5
9216*
Metal sheet End Cap for 2ST1
9221*
Metal sheet End Cap for 2ST6
9217*
Metal sheet End Cap with hole for 2ST1
9222*
Metal sheet End Cap with hole for 2ST6
26.2
26.2
21
21
1.2
Ø 7.5
26.2
21
21
26.2
27.25
8
8
2
9220*
Metal sheet End Cap for 2ST3
9230*
Metal sheet End Cap for 2ST7
24.5
8.2
28.6
3
36
2
21
26.2
18.3
52.6
2
Ø 3
9223*
Metal sheet End Cap for 2ST8
27
1.5
37
26.2
10
8.5
20.2
