F021Z010000
4 p connector
Outgraze 35
24V (Easy) and Tunable White versions
F990C010000
4 p terminal block
F990C010000
4 p terminal block
F990C010000
4 p terminal block
F990C010000
4 p terminal block
F990C010000
4 p terminal block
supplied cable
1000 mm
24V
24V
24V
F021Z100000
4 p connector + cable L 5m
F021Z090000
4 p double connector + cable L 0,6m
F021Z010000
4 p connector
F021Z010000
4 p connector
F021Z010000
4 p connector
F021Z070000
4-5 p cap for
panel connector
F021Z010000
4 p connector

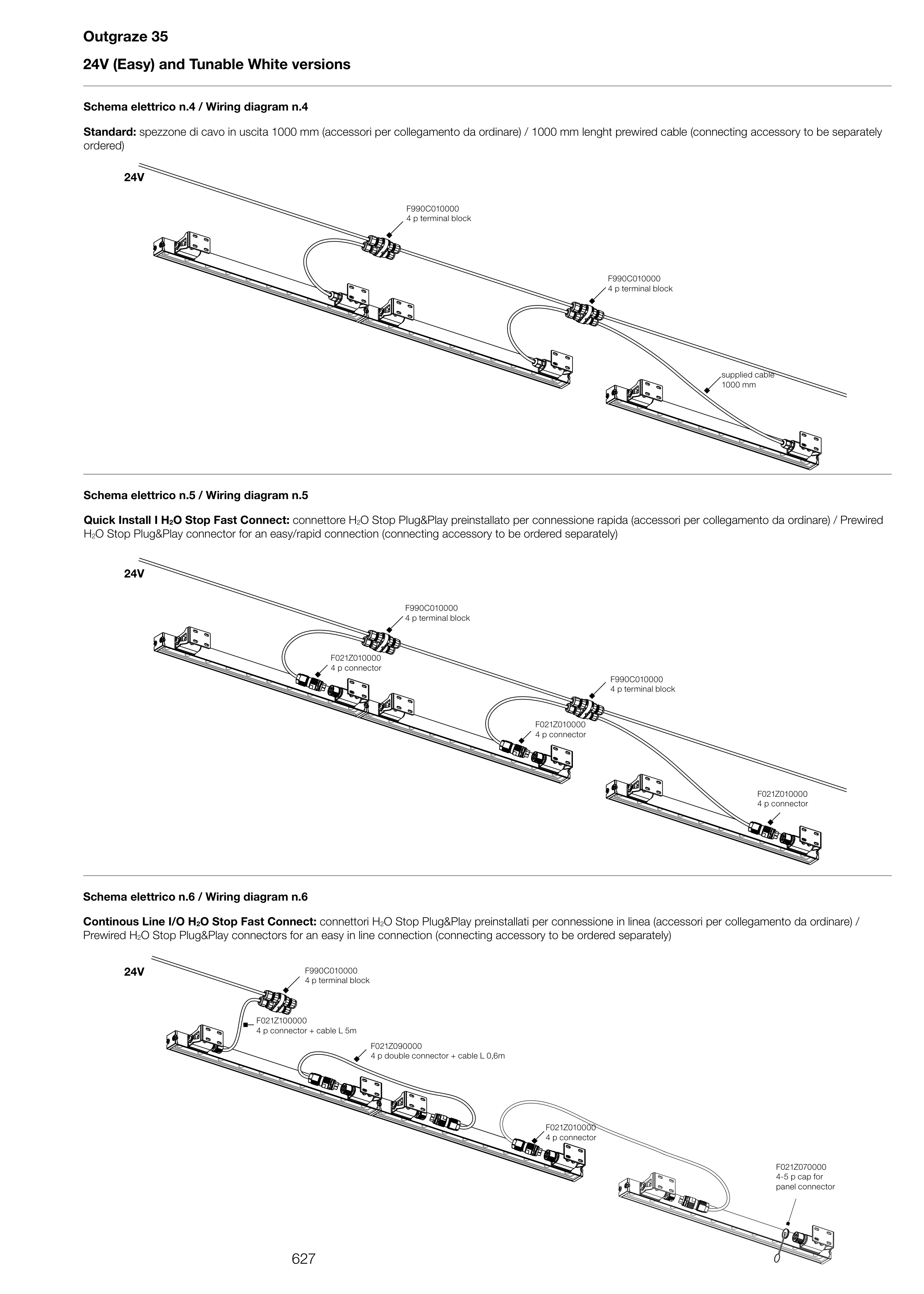

Schema elettrico n.4 / Wiring diagram n.4
Schema elettrico n.5 / Wiring diagram n.5
Schema elettrico n.6 / Wiring diagram n.6
Standard: spezzone di cavo in uscita 1000 mm (accessori per collegamento da ordinare) / 1000 mm lenght prewired cable (connecting accessory to be separately
ordered)
Quick Install I H2O Stop Fast Connect: connettore H2O Stop Plug&Play preinstallato per connessione rapida (accessori per collegamento da ordinare) / Prewired
H2O Stop Plug&Play connector for an easy/rapid connection (connecting accessory to be ordered separately)
Continous Line I/O H2O Stop Fast Connect: connettori H2O Stop Plug&Play preinstallati per connessione in linea (accessori per collegamento da ordinare) /
Prewired H2O Stop Plug&Play connectors for an easy in line connection (connecting accessory to be ordered separately)
