Davide Groppi / 2016

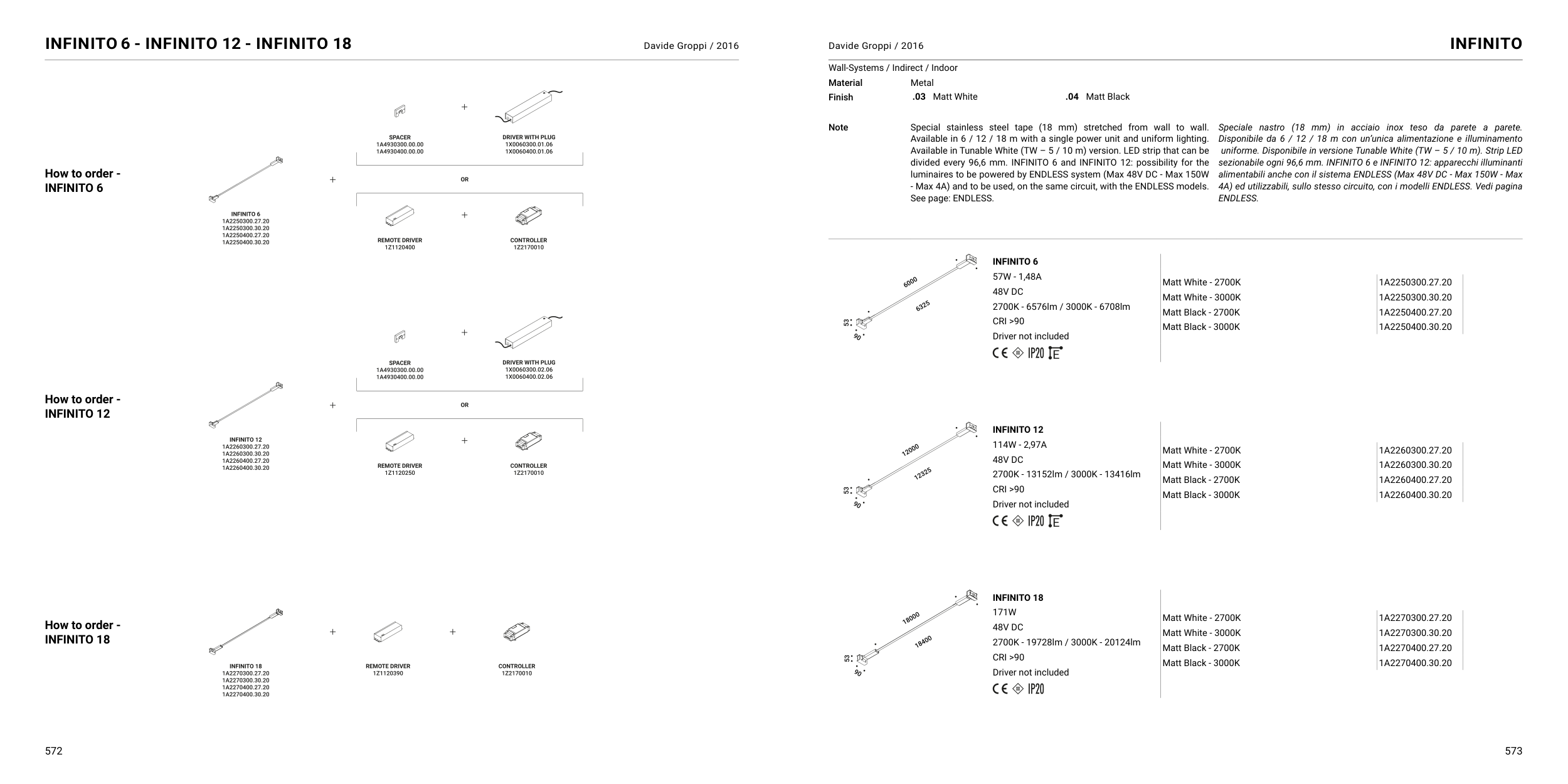

INFINITO
INFINITO 6 - INFINITO 12 - INFINITO 18
Davide Groppi / 2016
How to order -
INFINITO 6
How to order -
INFINITO 12
How to order -
INFINITO 18
Wall-Systems / Indirect / Indoor
Material
Metal
Finish
.03 Matt White
.04 Matt Black
Note
Special stainless steel tape (18 mm) stretched from wall to wall.
Available in 6 / 12 / 18 m with a single power unit and uniform lighting.
Available in Tunable White (TW – 5 / 10 m) version. LED strip that can be
divided every 96,6 mm. INFINITO 6 and INFINITO 12: possibility for the
luminaires to be powered by ENDLESS system (Max 48V DC - Max 150W
- Max 4A) and to be used, on the same circuit, with the ENDLESS models.
See page: ENDLESS.
Speciale nastro (18 mm) in acciaio inox teso da parete a parete.
Disponibile da 6 / 12 / 18 m con un’unica alimentazione e illuminamento
uniforme. Disponibile in versione Tunable White (TW – 5 / 10 m). Strip LED
sezionabile ogni 96,6 mm. INFINITO 6 e INFINITO 12: apparecchi illuminanti
alimentabili anche con il sistema ENDLESS (Max 48V DC - Max 150W - Max
4A) ed utilizzabili, sullo stesso circuito, con i modelli ENDLESS. Vedi pagina
ENDLESS.
INFINITO 6
57W - 1,48A
48V DC
2700K - 6576lm / 3000K - 6708lm
CRI >90
Driver not included
Matt White - 2700K
1A2250300.27.20
Matt White - 3000K
1A2250300.30.20
Matt Black - 2700K
1A2250400.27.20
Matt Black - 3000K
1A2250400.30.20
INFINITO 12
114W - 2,97A
48V DC
2700K - 13152lm / 3000K - 13416lm
CRI >90
Driver not included
Matt White - 2700K
1A2260300.27.20
Matt White - 3000K
1A2260300.30.20
Matt Black - 2700K
1A2260400.27.20
Matt Black - 3000K
1A2260400.30.20
53
90
18000
18400
INFINITO 18
171W
48V DC
2700K - 19728lm / 3000K - 20124lm
CRI >90
Driver not included
Matt White - 2700K
1A2270300.27.20
Matt White - 3000K
1A2270300.30.20
Matt Black - 2700K
1A2270400.27.20
Matt Black - 3000K
1A2270400.30.20
