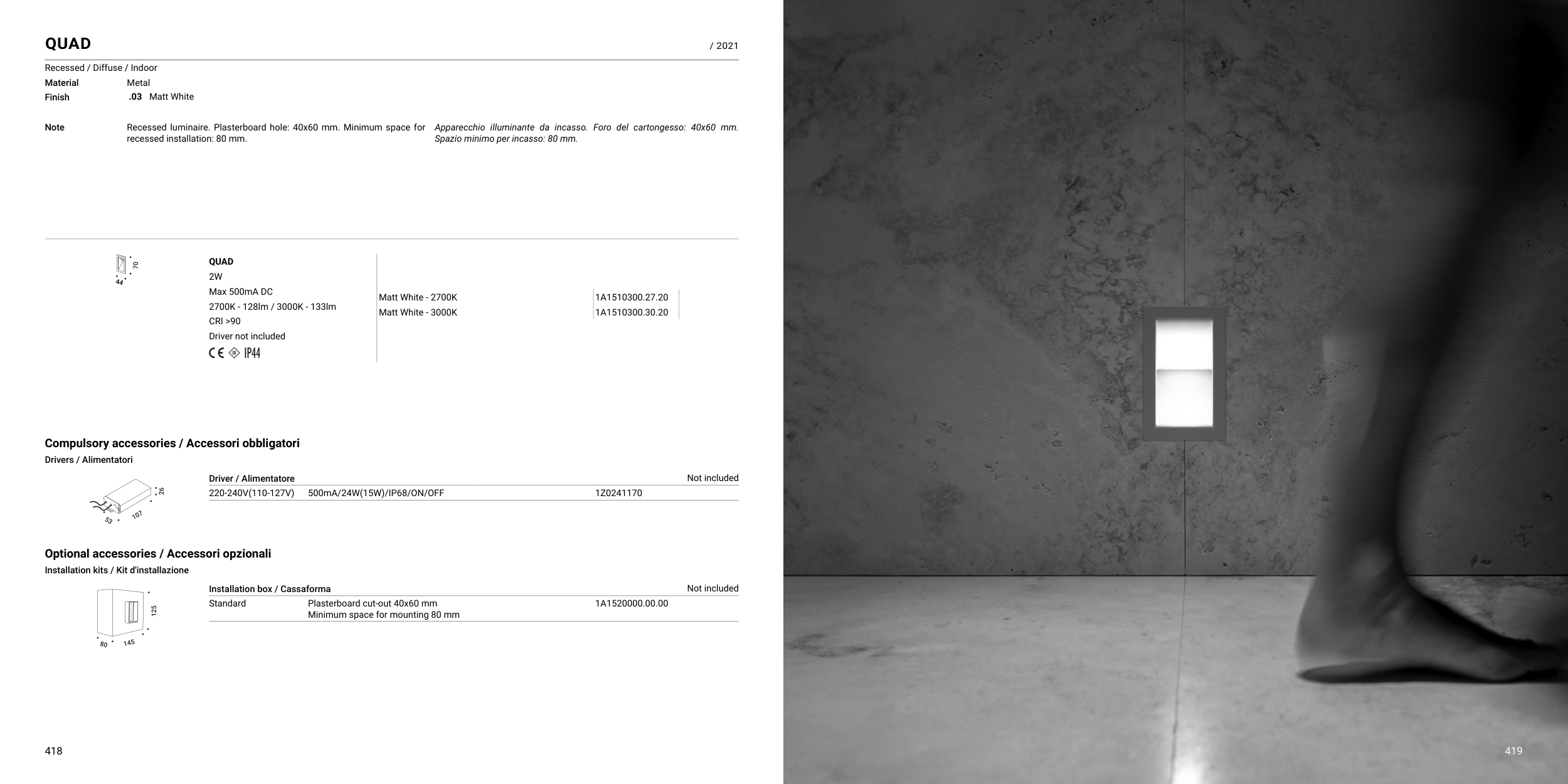

419
418
QUAD
/ 2021
Recessed / Diffuse / Indoor
Material
Metal
Finish
.03 Matt White
Note
Recessed luminaire. Plasterboard hole: 40x60 mm. Minimum space for
recessed installation: 80 mm.
Apparecchio illuminante da incasso. Foro del cartongesso: 40x60 mm.
Spazio minimo per incasso: 80 mm.
QUAD
2W
Max 500mA DC
2700K - 128lm / 3000K - 133lm
CRI >90
Driver not included
Matt White - 2700K
1A1510300.27.20
Matt White - 3000K
1A1510300.30.20
Compulsory accessories / Accessori obbligatori
Drivers / Alimentatori
Driver / Alimentatore
Not included
220-240V(110-127V)
500mA/24W(15W)/IP68/ON/OFF
1Z0241170
Optional accessories / Accessori opzionali
Installation kits / Kit d'installazione
Installation box / Cassaforma
Not included
Standard
Plasterboard cut-out 40x60 mm
Minimum space for mounting 80 mm
1A1520000.00.00
