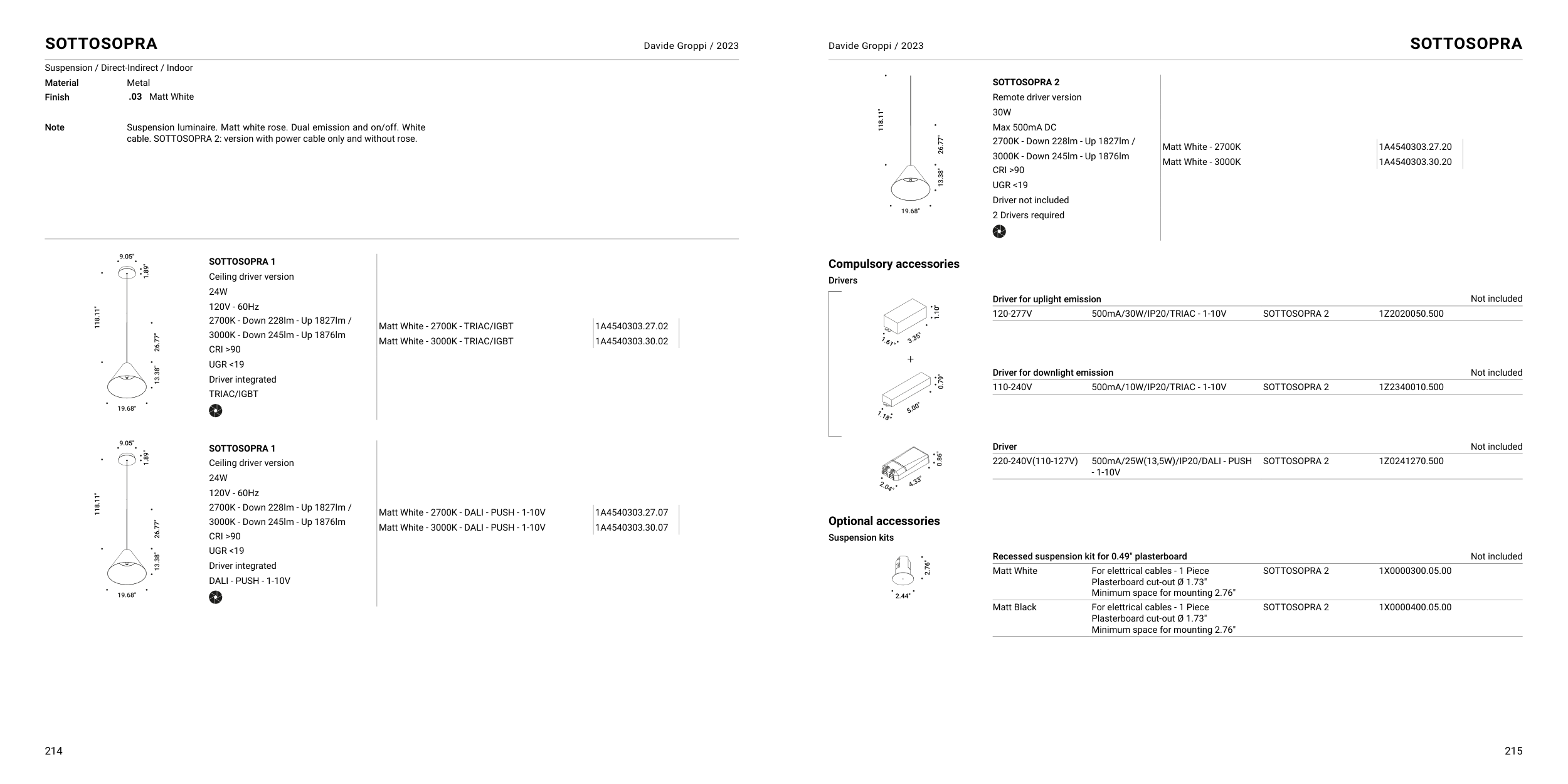

SOTTOSOPRA
Davide Groppi / 2023
Davide Groppi / 2023
SOTTOSOPRA
Suspension / Direct-Indirect / Indoor
Material
Metal
Finish
.03 Matt White
Note
Suspension luminaire. Matt white rose. Dual emission and on/off. White
cable. SOTTOSOPRA 2: version with power cable only and without rose.
SOTTOSOPRA 1
Ceiling driver version
24W
120V - 60Hz
2700K - Down 228lm - Up 1827lm /
3000K - Down 245lm - Up 1876lm
CRI >90
UGR <19
Driver integrated
TRIAC/IGBT
Matt White - 2700K - TRIAC/IGBT
1A4540303.27.02
Matt White - 3000K - TRIAC/IGBT
1A4540303.30.02
SOTTOSOPRA 1
Ceiling driver version
24W
120V - 60Hz
2700K - Down 228lm - Up 1827lm /
3000K - Down 245lm - Up 1876lm
CRI >90
UGR <19
Driver integrated
DALI - PUSH - 1-10V
Matt White - 2700K - DALI - PUSH - 1-10V
1A4540303.27.07
Matt White - 3000K - DALI - PUSH - 1-10V
1A4540303.30.07
SOTTOSOPRA 2
Remote driver version
30W
Max 500mA DC
2700K - Down 228lm - Up 1827lm /
3000K - Down 245lm - Up 1876lm
CRI >90
UGR <19
Driver not included
2 Drivers required
Matt White - 2700K
1A4540303.27.20
Matt White - 3000K
1A4540303.30.20
Compulsory accessories
Drivers
Driver for uplight emission
Not included
120-277V
500mA/30W/IP20/TRIAC - 1-10V
SOTTOSOPRA 2
1Z2020050.500
Driver for downlight emission
Not included
110-240V
500mA/10W/IP20/TRIAC - 1-10V
SOTTOSOPRA 2
1Z2340010.500
Driver
Not included
220-240V(110-127V)
500mA/25W(13,5W)/IP20/DALI - PUSH
- 1-10V
SOTTOSOPRA 2
1Z0241270.500
Optional accessories
Suspension kits
Recessed suspension kit for 0.49" plasterboard
Not included
Matt White
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
SOTTOSOPRA 2
1X0000300.05.00
Matt Black
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
SOTTOSOPRA 2
1X0000400.05.00
+
