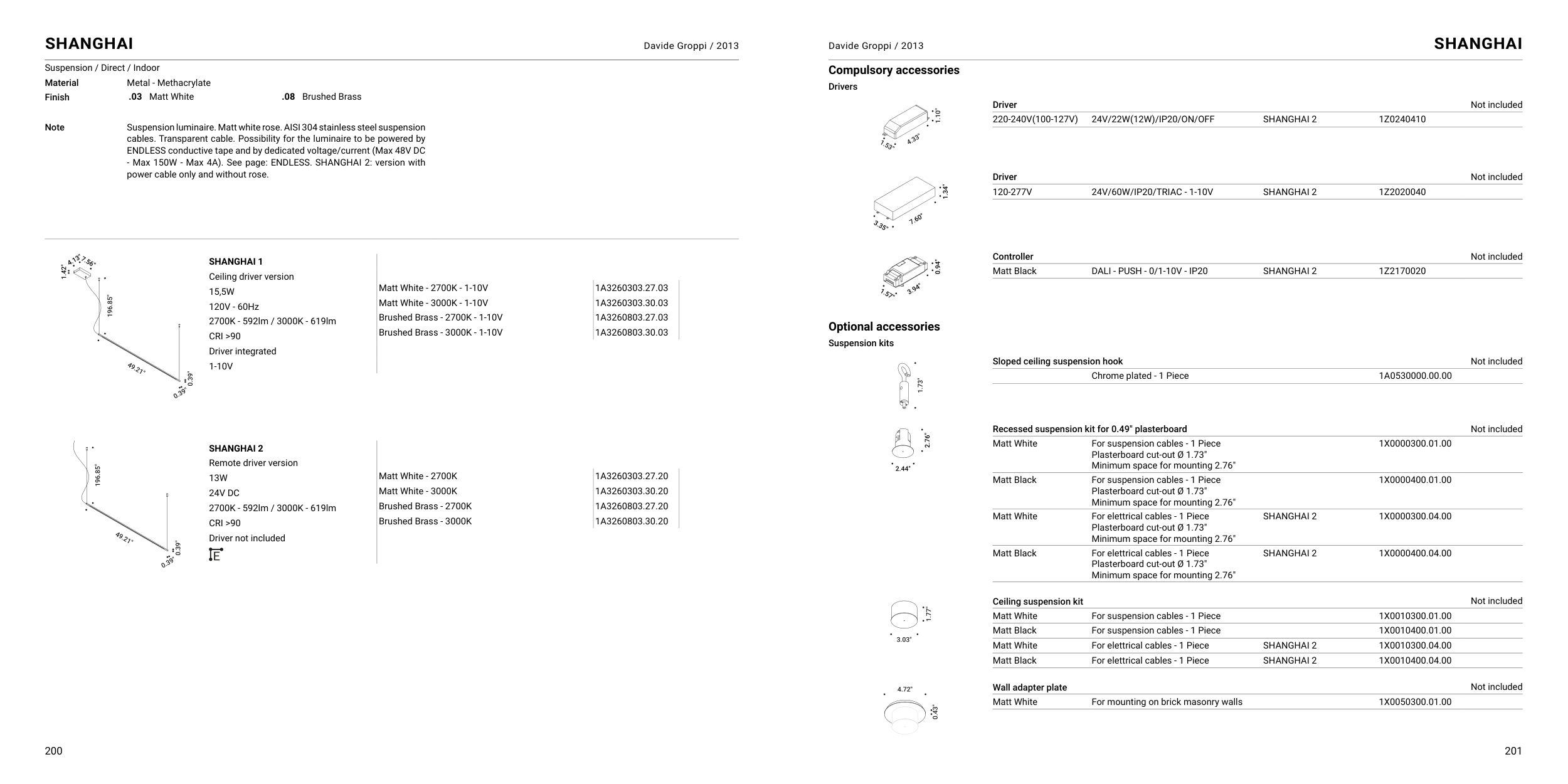

SHANGHAI
Davide Groppi / 2013
Davide Groppi / 2013
SHANGHAI
Suspension / Direct / Indoor
Material
Metal - Methacrylate
Finish
.03 Matt White
.08 Brushed Brass
Note
Suspension luminaire. Matt white rose. AISI 304 stainless steel suspension
cables. Transparent cable. Possibility for the luminaire to be powered by
ENDLESS conductive tape and by dedicated voltage/current (Max 48V DC
- Max 150W - Max 4A). See page: ENDLESS. SHANGHAI 2: version with
power cable only and without rose.
SHANGHAI 1
Ceiling driver version
15,5W
120V - 60Hz
2700K - 592lm / 3000K - 619lm
CRI >90
Driver integrated
1-10V
Matt White - 2700K - 1-10V
1A3260303.27.03
Matt White - 3000K - 1-10V
1A3260303.30.03
Brushed Brass - 2700K - 1-10V
1A3260803.27.03
Brushed Brass - 3000K - 1-10V
1A3260803.30.03
SHANGHAI 2
Remote driver version
13W
24V DC
2700K - 592lm / 3000K - 619lm
CRI >90
Driver not included
Matt White - 2700K
1A3260303.27.20
Matt White - 3000K
1A3260303.30.20
Brushed Brass - 2700K
1A3260803.27.20
Brushed Brass - 3000K
1A3260803.30.20
Compulsory accessories
Drivers
Driver
Not included
220-240V(100-127V)
24V/22W(12W)/IP20/ON/OFF
SHANGHAI 2
1Z0240410
Driver
Not included
120-277V
24V/60W/IP20/TRIAC - 1-10V
SHANGHAI 2
1Z2020040
Controller
Not included
Matt Black
DALI - PUSH - 0/1-10V - IP20
SHANGHAI 2
1Z2170020
Optional accessories
Suspension kits
Sloped ceiling suspension hook
Not included
Chrome plated - 1 Piece
1A0530000.00.00
Recessed suspension kit for 0.49" plasterboard
Not included
Matt White
For suspension cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
1X0000300.01.00
Matt Black
For suspension cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
1X0000400.01.00
Matt White
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
SHANGHAI 2
1X0000300.04.00
Matt Black
For elettrical cables - 1 Piece
Plasterboard cut-out Ø 1.73"
Minimum space for mounting 2.76"
SHANGHAI 2
1X0000400.04.00
Ceiling suspension kit
Not included
Matt White
For suspension cables - 1 Piece
1X0010300.01.00
Matt Black
For suspension cables - 1 Piece
1X0010400.01.00
Matt White
For elettrical cables - 1 Piece
SHANGHAI 2
1X0010300.04.00
Matt Black
For elettrical cables - 1 Piece
SHANGHAI 2
1X0010400.04.00
Wall adapter plate
Not included
Matt White
For mounting on brick masonry walls
1X0050300.01.00
