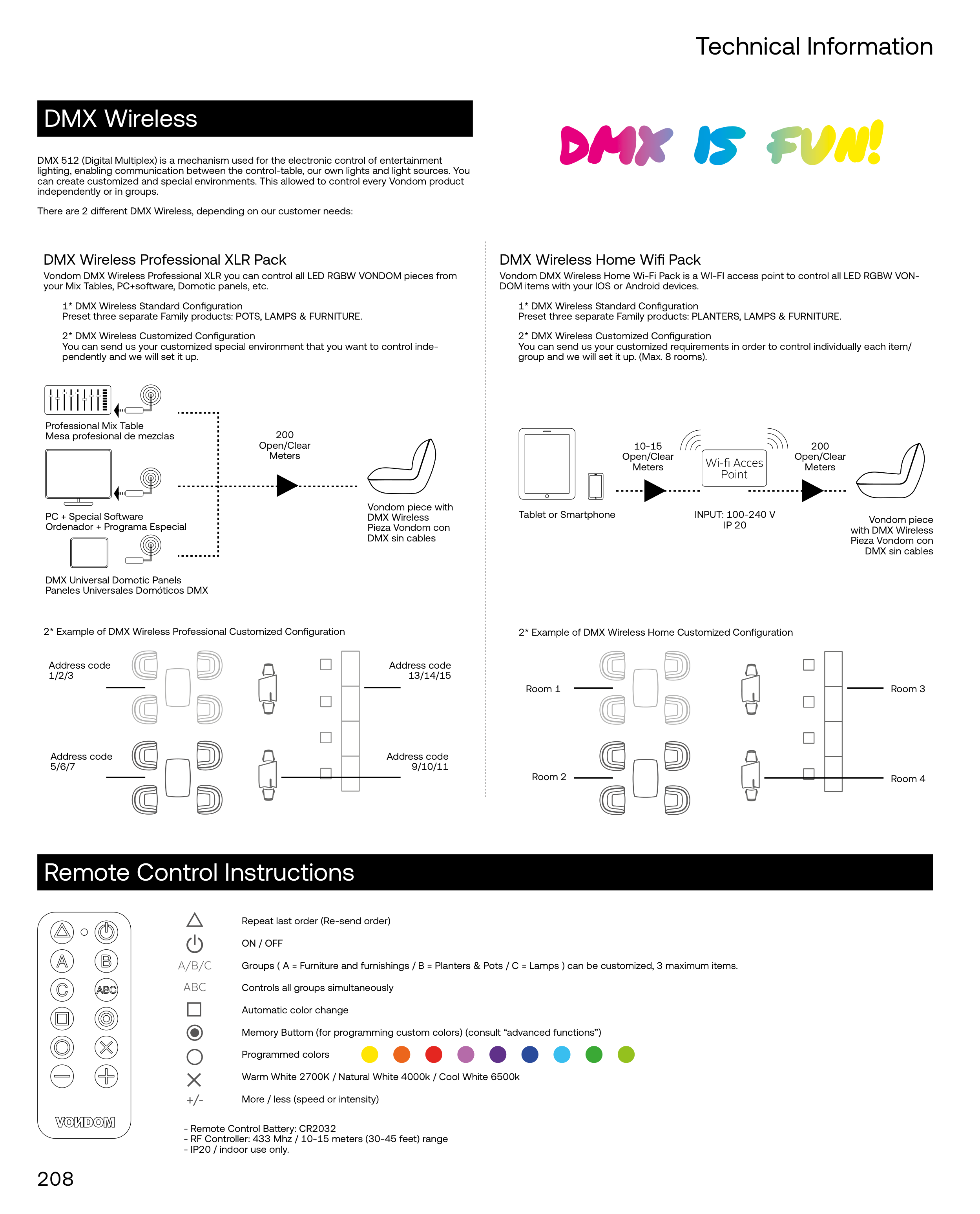

DMX Wireless
DMX 512 (Digital Multiplex) is a mechanism used for the electronic control of entertainment
lighting, enabling communication between the control-table, our own lights and light sources. You
can create customized and special environments. This allowed to control every Vondom product
independently or in groups.
There are 2 different DMX Wireless, depending on our customer needs:
200
Open/Clear
Meters
Vondom piece with
DMX Wireless
Pieza Vondom con
DMX sin cables
2* Example of DMX Wireless Professional Customized Configuration
Address code
1/2/3
Address code
5/6/7
Address code
9/10/11
Address code
13/14/15
Vondom piece
with DMX Wireless
Pieza Vondom con
DMX sin cables
Tablet or Smartphone
INPUT: 100-240 V
IP 20
2* Example of DMX Wireless Home Customized Configuration
Room 1
Room 3
Room 2
Room 4
10-15
Open/Clear
Meters
200
Open/Clear
Meters
Professional Mix Table
Mesa profesional de mezclas
PC + Special Software
Ordenador + Programa Especial
DMX Universal Domotic Panels
Paneles Universales Domóticos DMX
DMX Wireless Home Wifi Pack
Vondom DMX Wireless Home Wi-Fi Pack is a WI-FI access point to control all LED RGBW VON-
DOM items with your IOS or Android devices.
1* DMX Wireless Standard Configuration
Preset three separate Family products: PLANTERS, LAMPS & FURNITURE.
2* DMX Wireless Customized Configuration
You can send us your customized requirements in order to control individually each item/
group and we will set it up. (Max. 8 rooms).
DMX Wireless Professional XLR Pack
Vondom DMX Wireless Professional XLR you can control all LED RGBW VONDOM pieces from
your Mix Tables, PC+software, Domotic panels, etc.
1* DMX Wireless Standard Configuration
Preset three separate Family products: POTS, LAMPS & FURNITURE.
2* DMX Wireless Customized Configuration
You can send us your customized special environment that you want to control inde-
pendently and we will set it up.
- Remote Control Battery: CR2032
- RF Controller: 433 Mhz / 10-15 meters (30-45 feet) range
- IP20 / indoor use only.
Remote Control Instructions
Repeat last order (Re-send order)
ON / OFF
Groups ( A = Furniture and furnishings / B = Planters & Pots / C = Lamps ) can be customized, 3 maximum items.
Controls all groups simultaneously
Automatic color change
Memory Buttom (for programming custom colors) (consult “advanced functions”)
Programmed colors
Warm White 2700K / Natural White 4000k / Cool White 6500k
More / less (speed or intensity)
Technical Information
