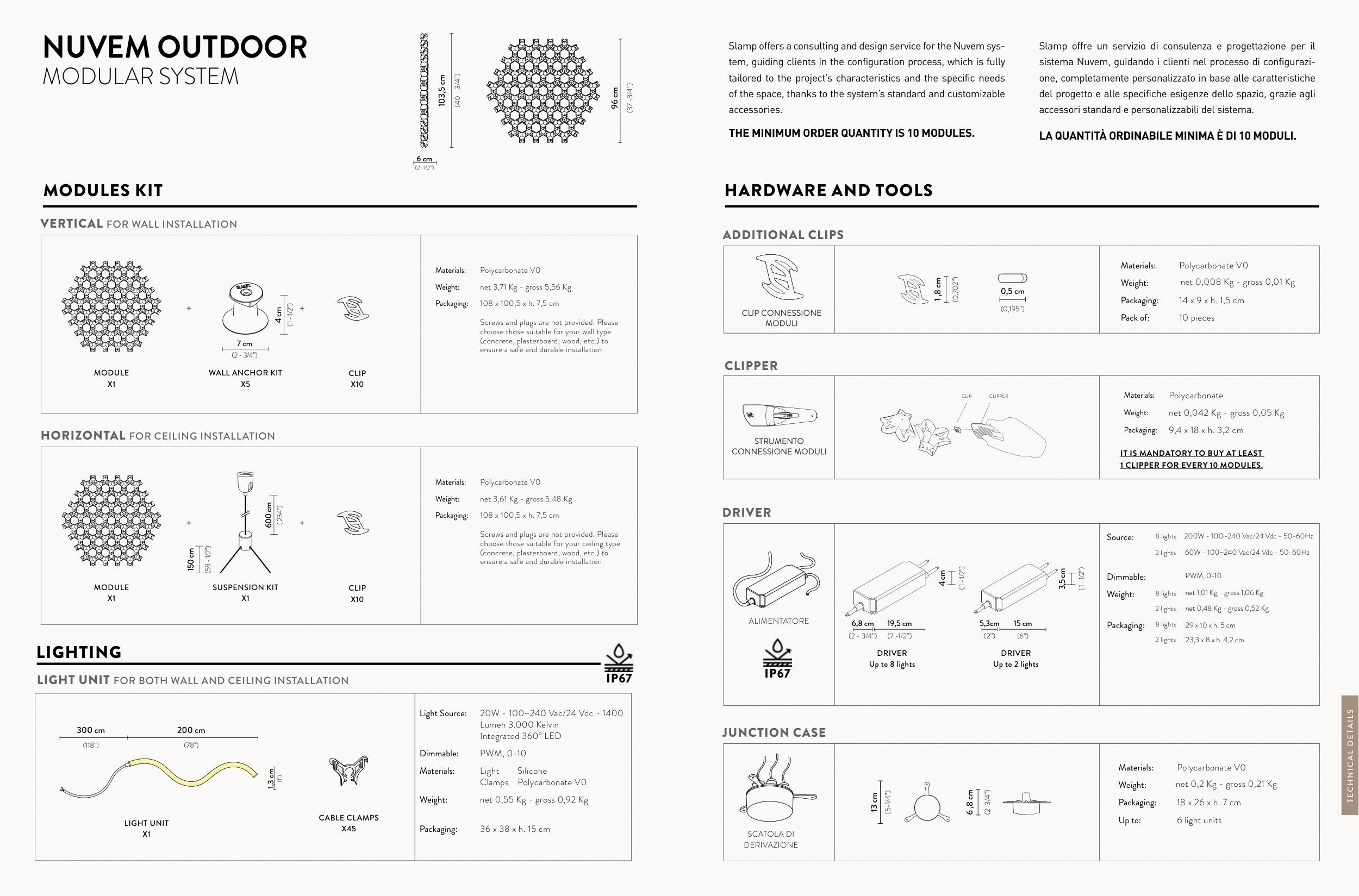

TECHNICAL DETAILS
7 cm
(2 - 3/4”)
600 cm
( 234”)
150 cm
(58 - 1/2”)
4 cm
( 1 - 1/2”)
NUVEM OUTDOOR
MODULAR SYSTEM
VERTICAL FOR WALL INSTALLATION
HORIZONTAL FOR CEILING INSTALLATION
MODULE
X1
LIGHT UNIT
X1
MODULE
X1
Materials:
Polycarbonate V0
Weight:
net 3,71 Kg - gross 5,56 Kg
Packaging:
108 x 100,5 x h. 7,5 cm
Screws and plugs are not provided. Please
choose those suitable for your wall type
(concrete, plasterboard, wood, etc.) to
ensure a safe and durable installation
Materials:
Polycarbonate V0
Weight:
net 3,61 Kg - gross 5,48 Kg
Packaging:
108 x 100,5 x h. 7,5 cm
Screws and plugs are not provided. Please
choose those suitable for your ceiling type
(concrete, plasterboard, wood, etc.) to
ensure a safe and durable installation
WALL ANCHOR KIT
X5
SUSPENSION KIT
X1
CLIP
X10
+
+
+
+
Light Source:
20W - 100~240 Vac/24 Vdc - 1400
Lumen 3.000 Kelvin
Integrated 360° LED
Dimmable:
PWM, 0-10
Materials:
Light Silicone
Clamps Polycarbonate V0
Weight:
net 0,55 Kg - gross 0,92 Kg
Packaging:
36 x 38 x h. 15 cm
MODULES KIT
CABLE CLAMPS
X45
103,5 cm
(40 - 3/4”)
6 cm
(2 -1/2”)
96 cm
(37 -3/4”)
200 cm
(78")
300 cm
(118")
1,3 cm
(1")
CLIP
X10
Slamp offers a consulting and design service for the Nuvem sys-
tem, guiding clients in the configuration process, which is fully
tailored to the project’s characteristics and the specific needs
of the space, thanks to the system’s standard and customizable
accessories.
THE MINIMUM ORDER QUANTITY IS 10 MODULES.
CLIPPER
CLIPPER
CLIP
STRUMENTO
CONNESSIONE MODULI
HARDWARE AND TOOLS
6 ,8 cm
(2-3/4”)
13 cm
(5-1/4”)
SCATOLA DI
DERIVAZIONE
JUNCTION CASE
IT IS MANDATORY TO BUY AT LEAST
1 CLIPPER FOR EVERY 10 MODULES.
Slamp offre un servizio di consulenza e progettazione per il
sistema Nuvem, guidando i clienti nel processo di configurazi-
one, completamente personalizzato in base alle caratteristiche
del progetto e alle specifiche esigenze dello spazio, grazie agli
accessori standard e personalizzabili del sistema.
LA QUANTITÀ ORDINABILE MINIMA È DI 10 MODULI.
TECHNICAL DETAILS
LIGHTING
LIGHT UNIT FOR BOTH WALL AND CEILING INSTALLATION
IP67
CLIP CONNESSIONE
MODULI
ADDITIONAL CLIPS
1 ,8 cm
(0,702”)
0,5 cm
(0,195”)
Materials:
Polycarbonate V0
Weight:
Packaging:
14 x 9 x h. 1,5 cm
Pack of:
10 pieces
net 0,008 Kg - gross 0,01 Kg
Materials:
Polycarbonate
Weight:
net 0,042 Kg - gross 0,05 Kg
Packaging:
9,4 x 18 x h. 3,2 cm
DRIVER
Source:
8 lights
2 lights
Dimmable:
Weight:
8 lights
2 lights
Packaging:
8 lights
2 lights
4 cm
( 1 - 1/2”)
3,5 cm
( 1 - 1/2”)
DRIVER
Up to 8 lights
DRIVER
Up to 2 lights
6,8 cm
(2 - 3/4”)
5,3cm
(2”)
19,5 cm
(7 -1/2”)
15 cm
(6”)
ALIMENTATORE
IP67
200W - 100~240 Vac/24 Vdc - 50-60Hz
60W - 100~240 Vac/24 Vdc - 50-60Hz
PWM, 0-10
net 1,01 Kg - gross 1,06 Kg
29 x 10 x h. 5 cm
net 0,48 Kg - gross 0,52 Kg
23,3 x 8 x h. 4,2 cm
Materials:
Polycarbonate V0
Weight:
Packaging:
18 x 26 x h. 7 cm
Up to:
6 light units
net 0,2 Kg - gross 0,21 Kg
