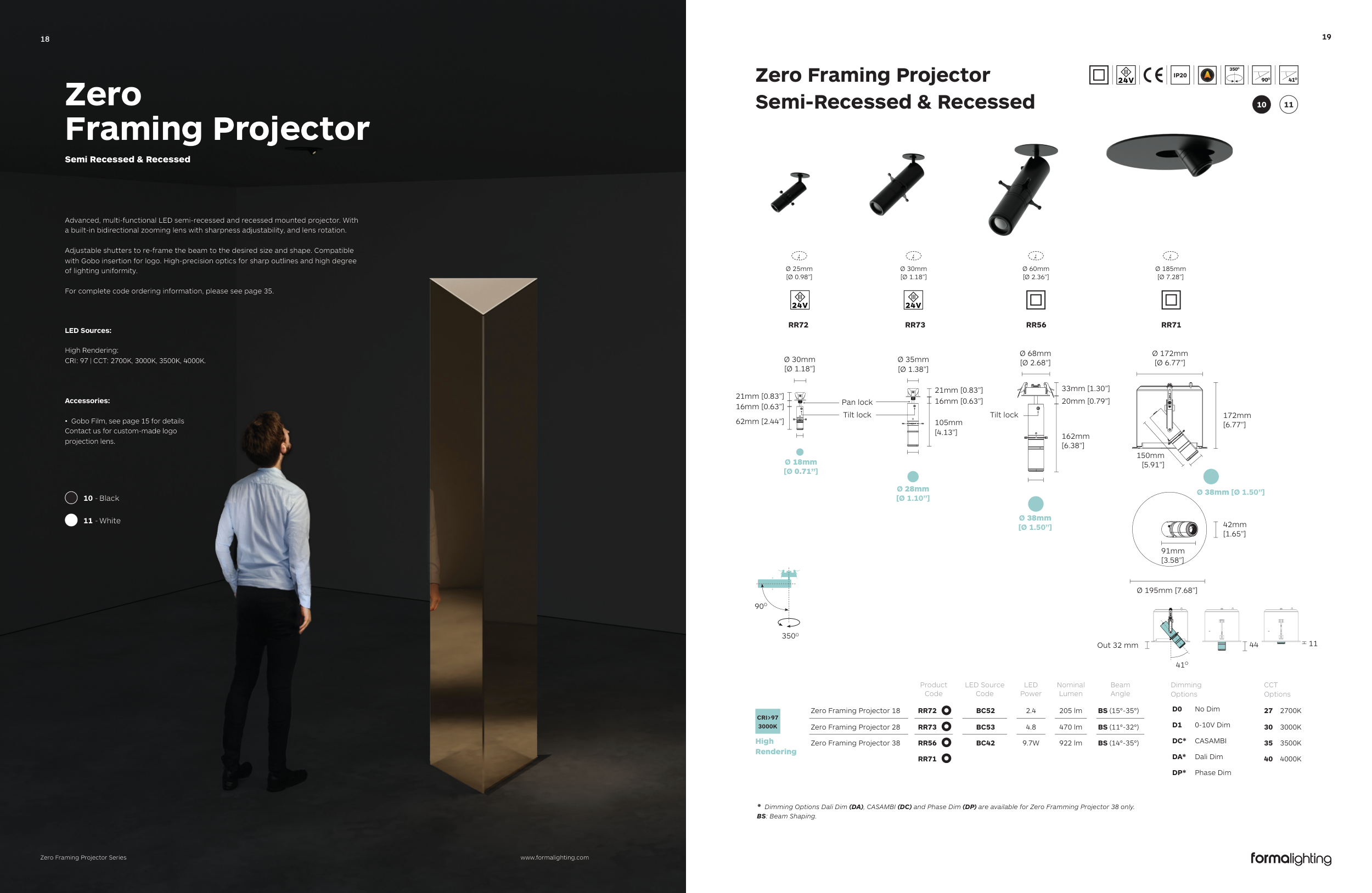

Zero
Framing Projector
Semi Recessed & Recessed
18
Zero Framing Projector
Semi-Recessed & Recessed
IP20
350O
90O
41O
Dimming
Options
D0
No Dim
D1
0-10V Dim
DC*
CASAMBI
DA*
Dali Dim
DP*
Phase Dim
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
Ø 38mm
[Ø 1.50”]
Ø 38mm [Ø 1.50”]
162mm
[6.38”]
33mm [1.30”]
21mm [0.83”]
20mm [0.79”]
Ø 195mm [7.68”]
91mm
[3.58”]
16mm [0.63”]
21mm [0.83”]
16mm [0.63”]
Product
Code
LED Source
Code
LED
Power
Nominal
Lumen
Beam
Angle
CRI>97
3000K
High
Rendering
Zero Framing Projector 18
RR72
BC52
2.4
205 lm
BS (15°-35°)
Zero Framing Projector 28
RR73
BC53
4.8
470 lm
BS (11°-32°)
Zero Framing Projector 38
RR56
BC42
9.7W
922 lm
BS (14°-35°)
RR71
Ø 25mm
[Ø 0.98”]
Ø 30mm
[Ø 1.18”]
Ø 60mm
[Ø 2.36”]
Ø 185mm
[Ø 7.28”]
BS: Beam Shaping.
* Dimming Options Dali Dim (DA), CASAMBI (DC) and Phase Dim (DP) are available for Zero Framming Projector 38 only.
Advanced, multi-functional LED semi-recessed and recessed mounted projector. With
a built-in bidirectional zooming lens with sharpness adjustability, and lens rotation.
Adjustable shutters to re-frame the beam to the desired size and shape. Compatible
with Gobo insertion for logo. High-precision optics for sharp outlines and high degree
of lighting uniformity.
For complete code ordering information, please see page 35.
LED Sources:
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
• Gobo Film, see page 15 for details
Contact us for custom-made logo
projection lens.
10 - Black
11 - White
Ø 68mm
[Ø 2.68”]
172mm
[6.77”]
42mm
[1.65”]
11
44
Out 32 mm
Ø 172mm
[Ø 6.77”]
RR73
RR72
RR56
RR71
www.formalighting.com
18
Zero Framing Projector Series
150mm
[5.91”]
Ø 18mm
[Ø 0.71”]
Ø 30mm
[Ø 1.18”]
105mm
[4.13”]
62mm [2.44”]
Ø 35mm
[Ø 1.38”]
Ø 28mm
[Ø 1.10”]
Pan lock
Tilt lock
Tilt lock
350O
90O
