- Surface
Gobo Film logo projector lens.
Accessory Art. 2G24
Recommended distance from fixture to wall between 0.5metres to 10metres.

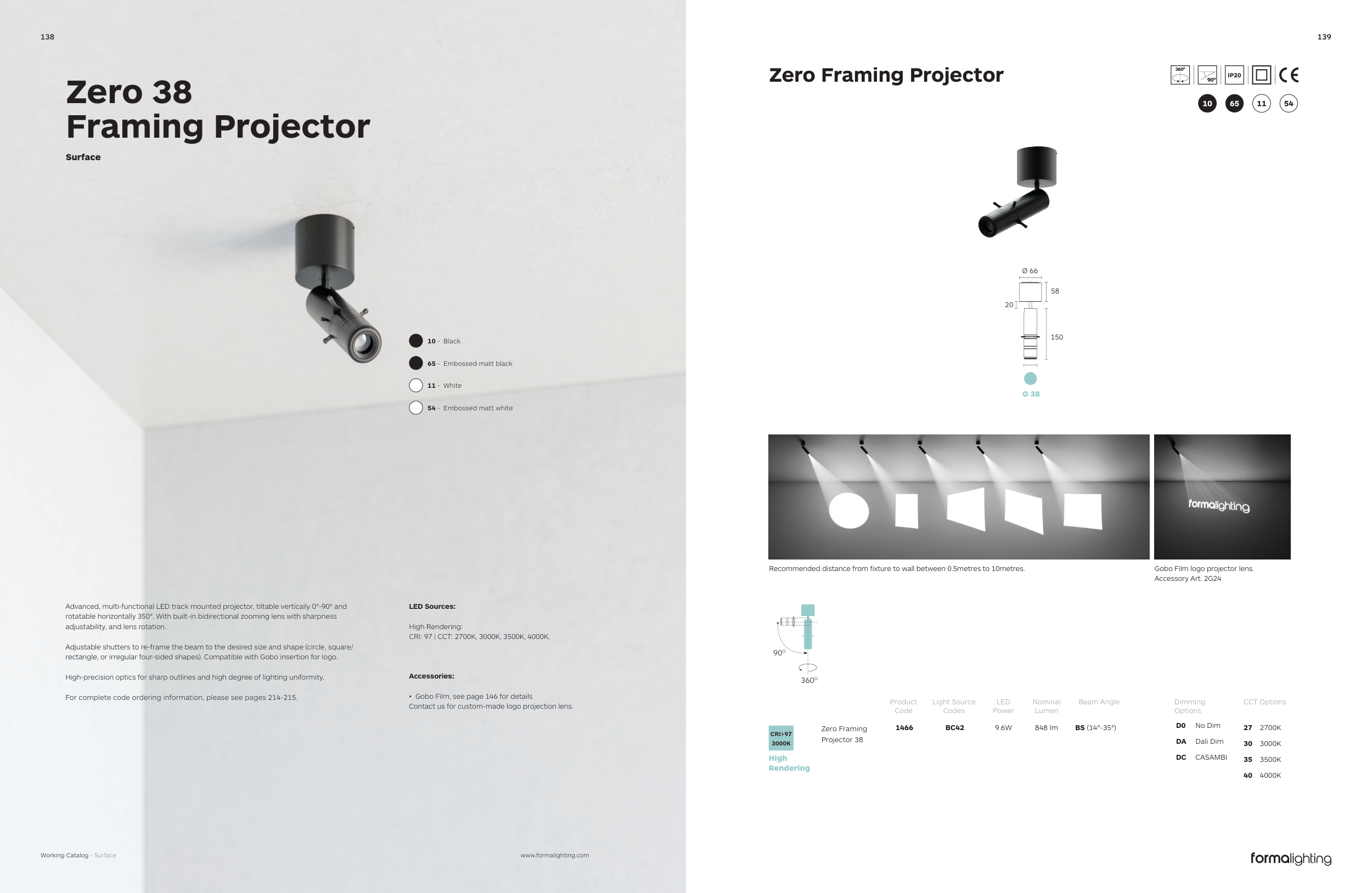

Zero Framing Projector
360O
90O
IP20
Dimming
Options
D0
No Dim
DA
Dali Dim
DC
CASAMBI
CCT Options
27
2700K
30
3000K
35
3500K
40
4000K
Product
Code
Light Source
Codes
LED
Power
Nominal
Lumen
Beam Angle
CRI>97
3000K
High
Rendering
Zero Framing
Projector 38
1466
BC42
9.6W
848 lm
BS (14°-35°)
90O
360O
Ø 66
Ø 38
150
20
58
Zero 38
Framing Projector
Surface
10 - Black
65 - Embossed matt black
11 - White
54 - Embossed matt white
Advanced, multi-functional LED track mounted projector, tiltable vertically 0°-90° and
rotatable horizontally 350°. With built-in bidirectional zooming lens with sharpness
adjustability, and lens rotation.
Adjustable shutters to re-frame the beam to the desired size and shape (circle, square/
rectangle, or irregular four-sided shapes). Compatible with Gobo insertion for logo.
High-precision optics for sharp outlines and high degree of lighting uniformity.
For complete code ordering information, please see pages 214-215.
LED Sources:
High Rendering:
CRI: 97 | CCT: 2700K, 3000K, 3500K, 4000K.
Accessories:
• Gobo Film, see page 146 for details
Contact us for custom-made logo projection lens.
