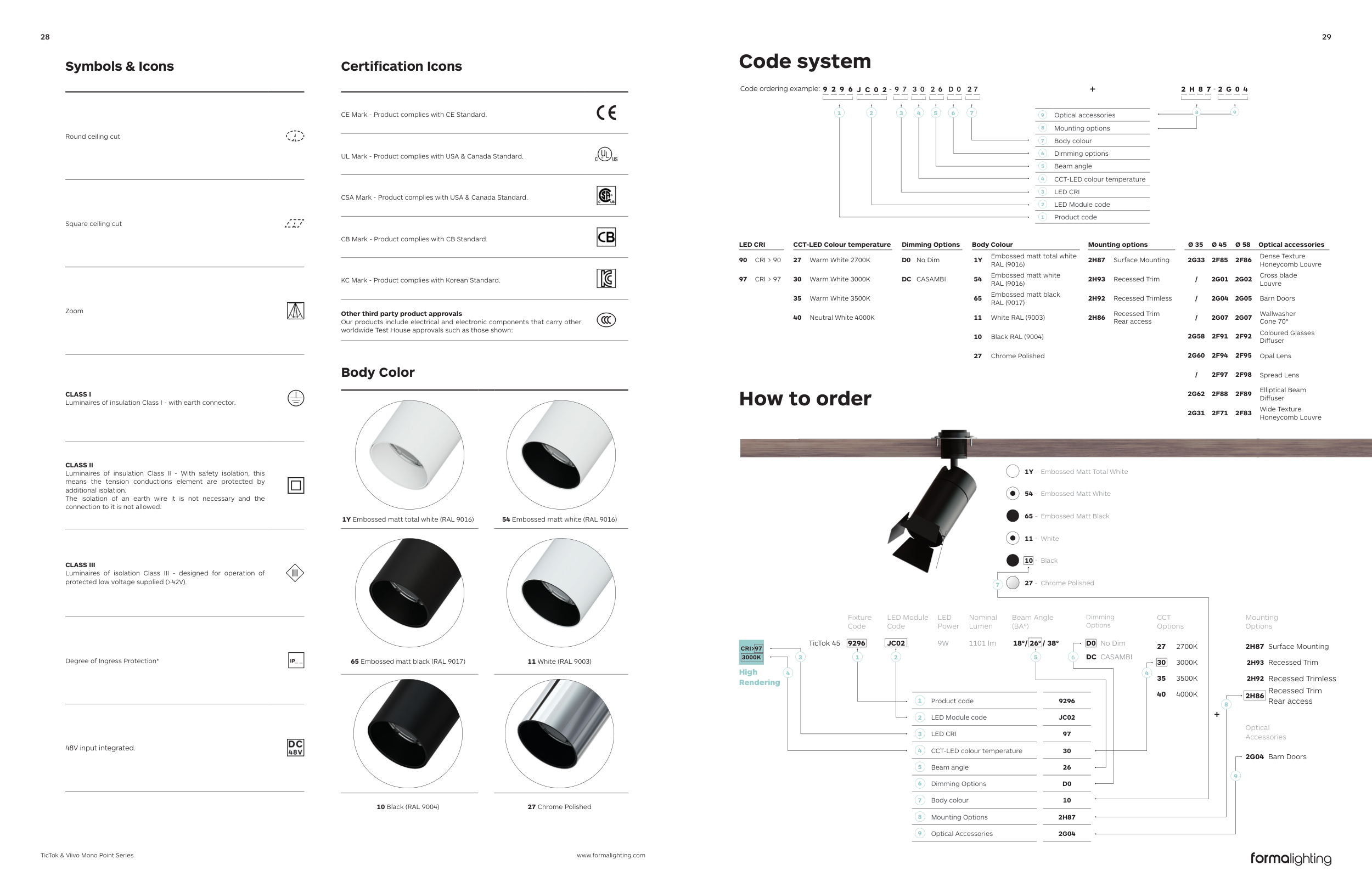

TicTok & Viivo Mono Point Series
Symbols & Icons
Round ceiling cut
Square ceiling cut
Zoom
CLASS I
Luminaires of insulation Class I - with earth connector.
CLASS II
Luminaires of insulation Class II - With safety isolation, this
means the tension conductions element are protected by
additional isolation.
The isolation of an earth wire it is not necessary and the
connection to it is not allowed.
CLASS III
Luminaires of isolation Class III - designed for operation of
protected low voltage supplied (>42V).
Degree of Ingress Protection*
IP_ _
48V input integrated.
Body Color
1Y Embossed matt total white (RAL 9016)
54 Embossed matt white (RAL 9016)
65 Embossed matt black (RAL 9017)
11 White (RAL 9003)
10 Black (RAL 9004)
27 Chrome Polished
Certification Icons
CE Mark - Product complies with CE Standard.
UL Mark - Product complies with USA & Canada Standard.
CSA Mark - Product complies with USA & Canada Standard.
CB Mark - Product complies with CB Standard.
KC Mark - Product complies with Korean Standard.
Other third party product approvals
Our products include electrical and electronic components that carry other
worldwide Test House approvals such as those shown:
Code system
-
9 2 9 6 J C 0 2
9 7
3 0
2 6 D 0
2 7
Code ordering example:
1
2
3
4
5
6
7
-
2 H 8 7
2 G 0 4
Fixture
Code
LED Module
Code
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
CRI>97
3000K
High
Rendering
TicTok 45
9296
JC02
9W
1101 lm
18°/ 26° / 38°
How to order
1
Product code
9296
2
LED Module code
JC02
3
LED CRI
97
4
CCT-LED colour temperature
30
5
Beam angle
26
6
Dimming Options
D0
7
Body colour
10
8
Mounting Options
2H87
9
Optical Accessories
2G04
1
2
5
3
4
6
Dimming
Options
D0 No Dim
DC CASAMBI
CCT
Options
27
2700K
30
3000K
35
3500K
40
4000K
4
1Y - Embossed Matt Total White
54 - Embossed Matt White
65 - Embossed Matt Black
11 - White
10 - Black
27 - Chrome Polished
9
Optical accessories
8
Mounting options
7
Body colour
6
Dimming options
5
Beam angle
4
CCT-LED colour temperature
3
LED CRI
2
LED Module code
1
Product code
9
8
LED CRI
CCT-LED Colour temperature
Dimming Options
Body Colour
90
CRI > 90
27
Warm White 2700K
D0
No Dim
1Y
Embossed matt total white
RAL (9016)
97
CRI > 97
30
Warm White 3000K
DC CASAMBI
54
Embossed matt white
RAL (9016)
35
Warm White 3500K
65
Embossed matt black
RAL (9017)
40
Neutral White 4000K
11
White RAL (9003)
10
Black RAL (9004)
27
Chrome Polished
Ø 35
Ø 45
Ø 58
Optical accessories
2G33
2F85
2F86
Dense Texture
Honeycomb Louvre
/
2G01
2G02
Cross blade
Louvre
/
2G04
2G05
Barn Doors
/
2G07
2G07
Wallwasher
Cone 70°
2G58
2F91
2F92
Coloured Glasses
Diffuser
2G60
2F94
2F95
Opal Lens
/
2F97
2F98
Spread Lens
2G62
2F88
2F89
Elliptical Beam
Diffuser
2G31
2F71
2F83
Wide Texture
Honeycomb Louvre
Mounting options
2H87
Surface Mounting
2H93
Recessed Trim
2H92
Recessed Trimless
2H86
Recessed Trim
Rear access
+
Mounting
Options
2H87 Surface Mounting
2H93 Recessed Trim
2H92 Recessed Trimless
2H86 Recessed Trim
Rear access
Optical
Accessories
2G04 Barn Doors
+
