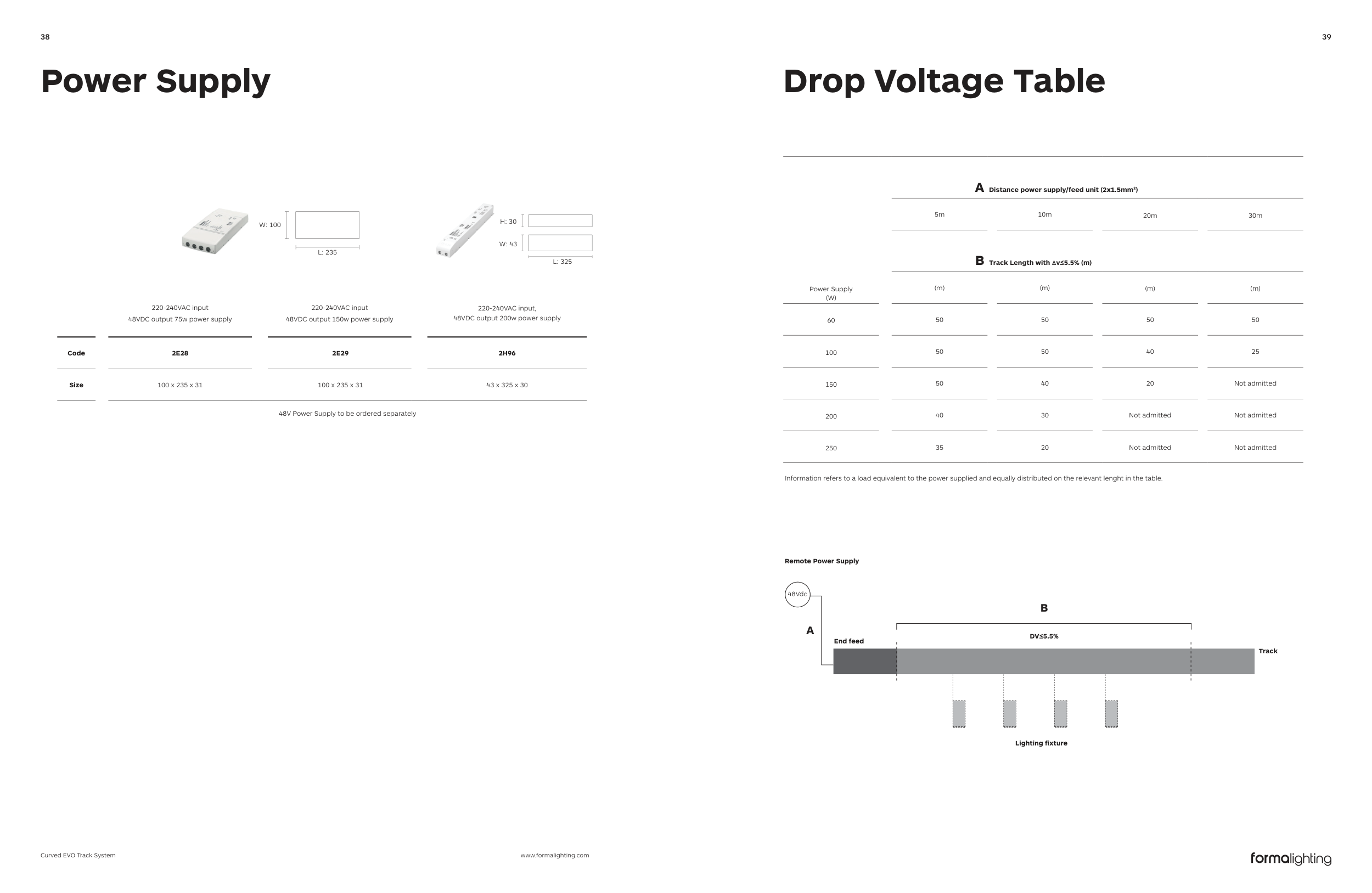

Curved EVO Track System
Drop Voltage Table
Power Supply
(W)
A Distance power supply/feed unit (2x1.5mm2)
5m
10m
20m
30m
B Track Length with Δv≤5.5% (m)
(m)
(m)
(m)
(m)
60
50
50
50
50
100
50
50
40
25
150
50
40
20
Not admitted
200
40
30
Not admitted
Not admitted
250
35
20
Not admitted
Not admitted
Information refers to a load equivalent to the power supplied and equally distributed on the relevant lenght in the table.
DV≤5.5%
Lighting fixture
Remote Power Supply
B
A
Track
End feed
48Vdc
Power Supply
220-240VAC input
48VDC output 75w power supply
220-240VAC input
48VDC output 150w power supply
220-240VAC input,
48VDC output 200w power supply
Code
2E28
2E29
2H96
Size
100 x 235 x 31
100 x 235 x 31
43 x 325 x 30
48V Power Supply to be ordered separately
W: 100
L: 235
L: 325
W: 43
H: 30
