ALBERTA FAMILY
ALBERTA INSIDE
83
82

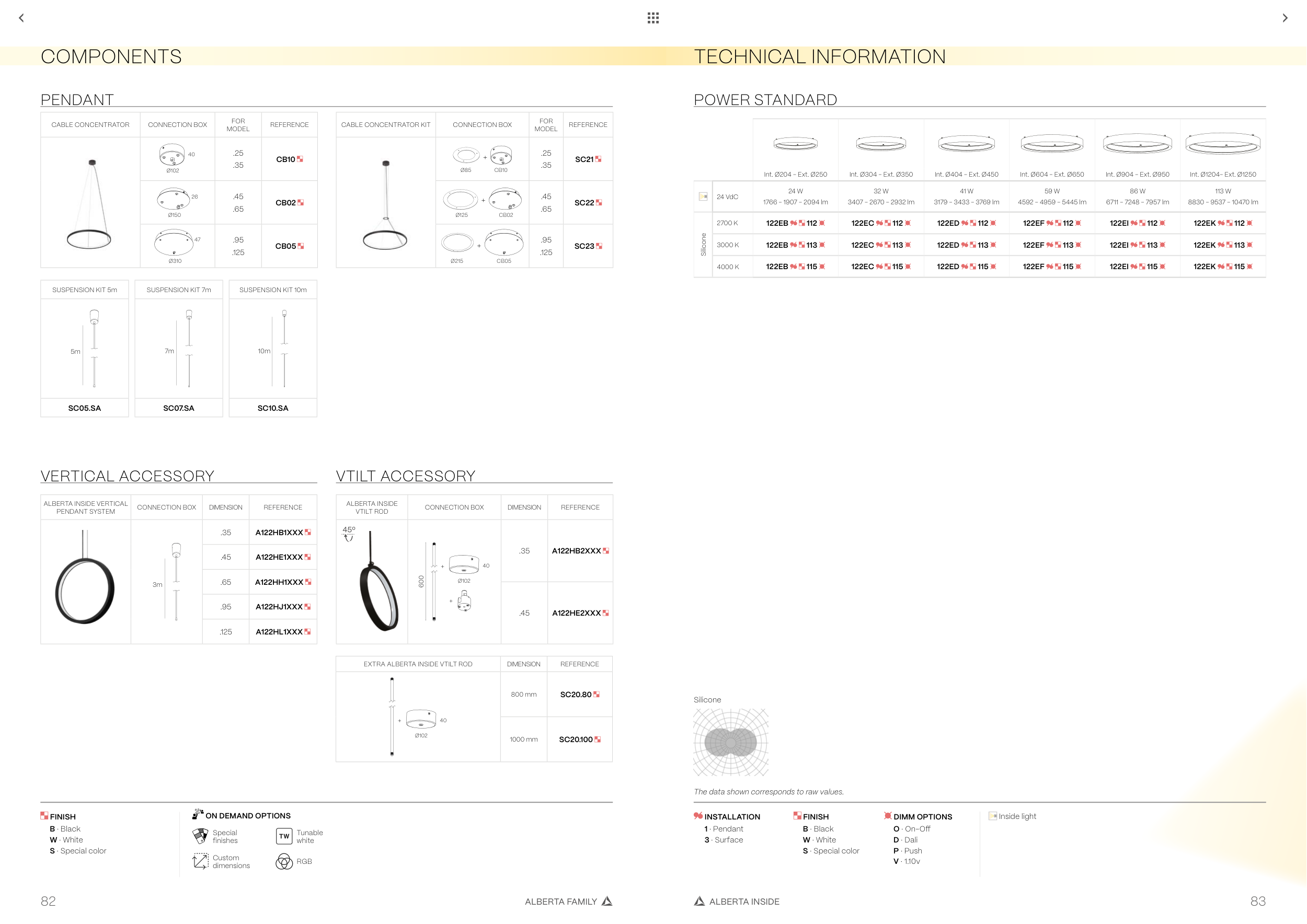

TECHNICAL INFORMATION
COMPONENTS
FINISH
B · Black
W · White
S · Special color
CABLE CONCENTRATOR
CONNECTION BOX
FOR
MODEL
REFERENCE
Ø102
40
.25
.35
CB10
Ø150
26
.45
.65
CB02
47
Ø310
.95
.125
CB05
CABLE CONCENTRATOR KIT
CONNECTION BOX
FOR
MODEL
REFERENCE
Ø85
+
CB10
.25
.35
SC21
Ø125
+
CB02
.45
.65
SC22
Ø215
+
CB05
.95
.125
SC23
SUSPENSION KIT 5m
5m
SC05.SA
SUSPENSION KIT 7m
7m
SC07.SA
SUSPENSION KIT 10m
10m
SC10.SA
EXTRA ALBERTA INSIDE VTILT ROD
DIMENSION
REFERENCE
+
Ø102
40
800 mm
SC20.80
1000 mm
SC20.100
ALBERTA INSIDE VERTICAL
PENDANT SYSTEM
CONNECTION BOX
DIMENSION
REFERENCE
3m
.35
A122HB1XXX
.45
A122HE1XXX
.65
A122HH1XXX
.95
A122HJ1XXX
.125
A122HL1XXX
ALBERTA INSIDE
VTILT ROD
CONNECTION BOX
DIMENSION
REFERENCE
+
+
600
Ø102
40
.35
A122HB2XXX
.45
A122HE2XXX
PENDANT
VERTICAL ACCESSORY
VTILT ACCESSORY
ON DEMAND OPTIONS
Special
finishes
Tunable
white
Custom
dimensions
RGB
POWER STANDARD
INSTALLATION
1 · Pendant
3 · Surface
FINISH
B · Black
W · White
S · Special color
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Inside light
Silicone
Int. Ø204 - Ext. Ø250
Int. Ø304 - Ext. Ø350
Int. Ø404 - Ext. Ø450
Int. Ø604 - Ext. Ø650
Int. Ø904 - Ext. Ø950
Int. Ø1204- Ext. Ø1250
24 VdC
24 W
1766 - 1907 - 2094 lm
32 W
3407 - 2670 - 2932 lm
41 W
3179 - 3433 - 3769 lm
59 W
4592 - 4959 - 5445 lm
86 W
6711 - 7248 - 7957 lm
113 W
8830 - 9537 - 10470 lm
Silicone
2700 K
122EB
112
122EC
112
122ED
112
122EF
112
122EI
112
122EK
112
3000 K
122EB
113
122EC
113
122ED
113
122EF
113
122EI
113
122EK
113
4000 K
122EB
115
122EC
115
122ED
115
122EF
115
122EI
115
122EK
115
The data shown corresponds to raw values.
