DRACO FAMILY
DRACO FAMILY
551
550

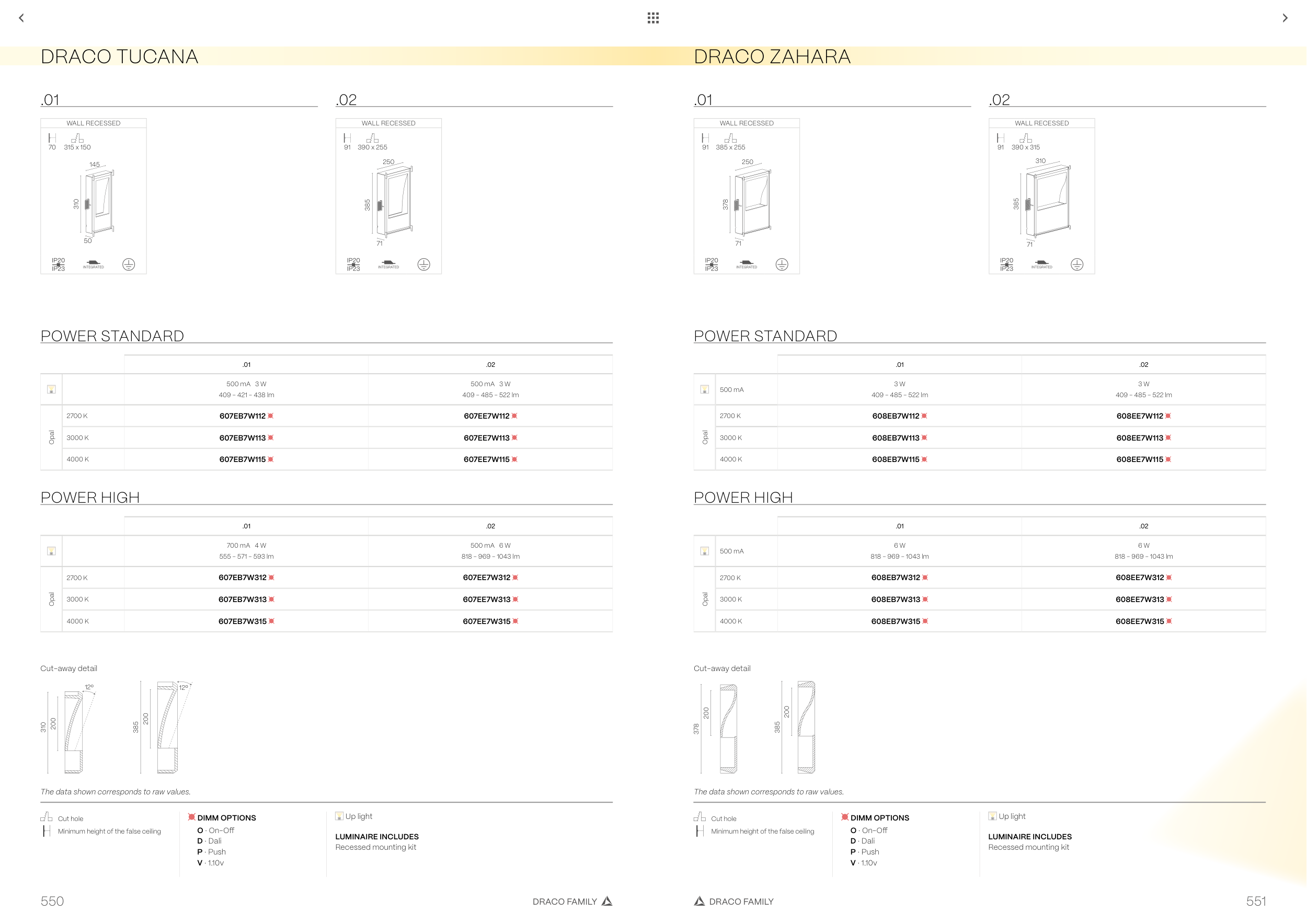

DRACO TUCANA
.01
.02
Up light
WALL RECESSED
70
315 x 150
310
50
145
WALL RECESSED
91
390 x 255
385
71
250
Cut-away detail
Cut hole
Minimum height of the false ceiling
LUMINAIRE INCLUDES
Recessed mounting kit
POWER HIGH
POWER STANDARD
.01
.02
700 mA 4 W
555 - 571 - 593 lm
500 mA 6 W
818 - 969 - 1043 lm
Opal
2700 K
607EB7W312
607EE7W312
3000 K
607EB7W313
607EE7W313
4000 K
607EB7W315
607EE7W315
.01
.02
500 mA 3 W
409 - 421 - 438 lm
500 mA 3 W
409 - 485 - 522 lm
Opal
2700 K
607EB7W112
607EE7W112
3000 K
607EB7W113
607EE7W113
4000 K
607EB7W115
607EE7W115
310
200
12º
385
200
12º
.01
.02
DRACO ZAHARA
Up light
WALL RECESSED
91
385 x 255
378
71
250
WALL RECESSED
91
390 x 315
385
71
310
378
385
200
200
Cut-away detail
Cut hole
Minimum height of the false ceiling
LUMINAIRE INCLUDES
Recessed mounting kit
POWER HIGH
POWER STANDARD
.01
.02
500 mA
6 W
818 - 969 - 1043 lm
6 W
818 - 969 - 1043 lm
Opal
2700 K
608EB7W312
608EE7W312
3000 K
608EB7W313
608EE7W313
4000 K
608EB7W315
608EE7W315
.01
.02
500 mA
3 W
409 - 485 - 522 lm
3 W
409 - 485 - 522 lm
Opal
2700 K
608EB7W112
608EE7W112
3000 K
608EB7W113
608EE7W113
4000 K
608EB7W115
608EE7W115
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
The data shown corresponds to raw values.
The data shown corresponds to raw values.
