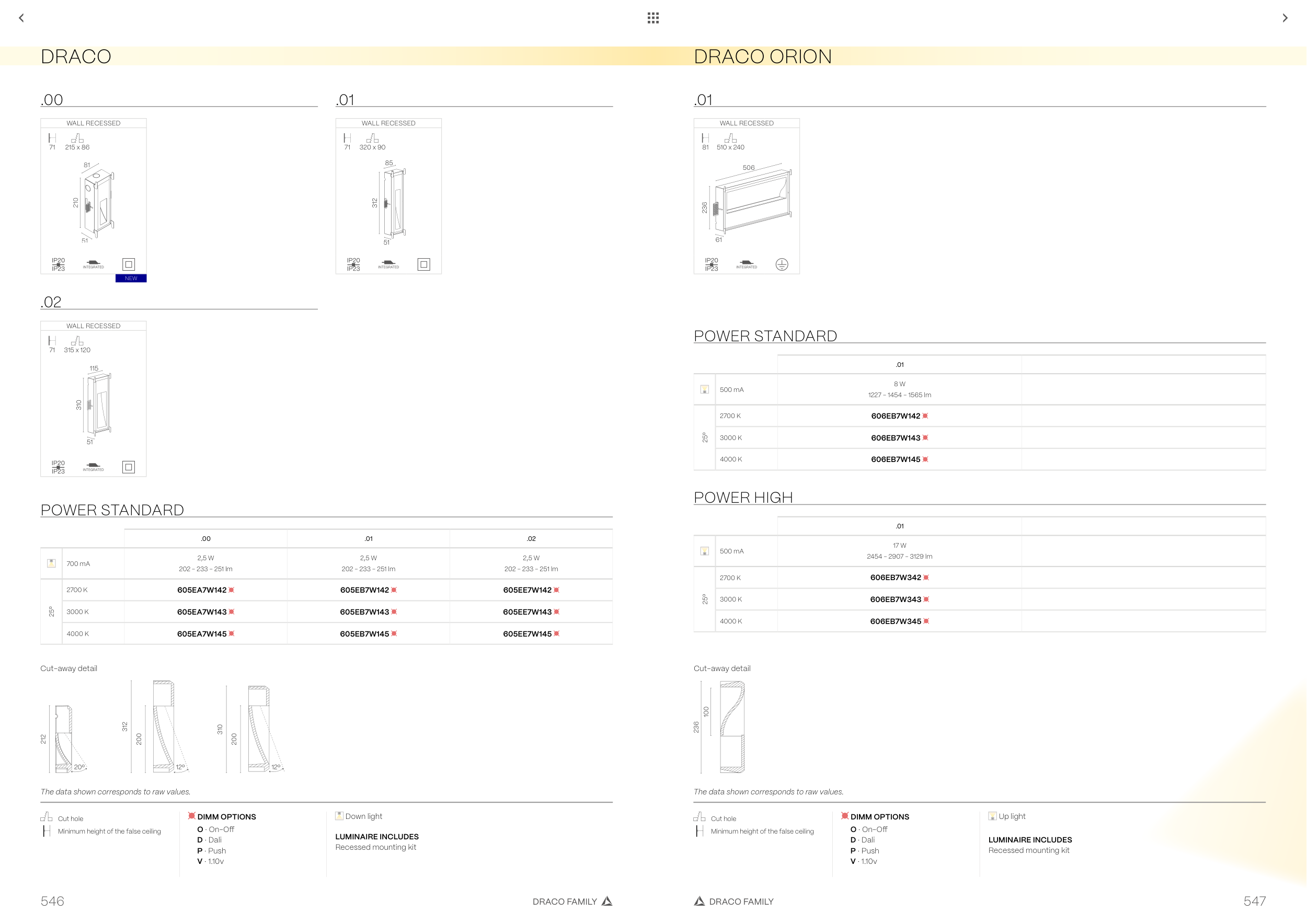

DRACO FAMILY
DRACO FAMILY
547
546
DRACO
.00
.01
.02
POWER STANDARD
.00
.01
.02
700 mA
2,5 W
202 - 233 - 251 lm
2,5 W
202 - 233 - 251 lm
2,5 W
202 - 233 - 251 lm
25º
2700 K
605EA7W142
605EB7W142
605EE7W142
3000 K
605EA7W143
605EB7W143
605EE7W143
4000 K
605EA7W145
605EB7W145
605EE7W145
Down light
WALL RECESSED
71
215 x 86
210
51
81
WALL RECESSED
71
320 x 90
312
51
85
WALL RECESSED
71
315 x 120
310
51
115
Cut-away detail
Cut hole
Minimum height of the false ceiling
LUMINAIRE INCLUDES
Recessed mounting kit
.01
DRACO ORION
POWER HIGH
POWER STANDARD
.01
500 mA
17 W
2454 - 2907 - 3129 lm
25º
2700 K
606EB7W342
3000 K
606EB7W343
4000 K
606EB7W345
.01
500 mA
8 W
1227 - 1454 - 1565 lm
25º
2700 K
606EB7W142
3000 K
606EB7W143
4000 K
606EB7W145
Up light
WALL RECESSED
81
510 x 240
236
61
506
236
100
Cut-away detail
Cut hole
Minimum height of the false ceiling
LUMINAIRE INCLUDES
Recessed mounting kit
212
200
200
312
310
20º
12º
12º
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
The data shown corresponds to raw values.
The data shown corresponds to raw values.
NEW
