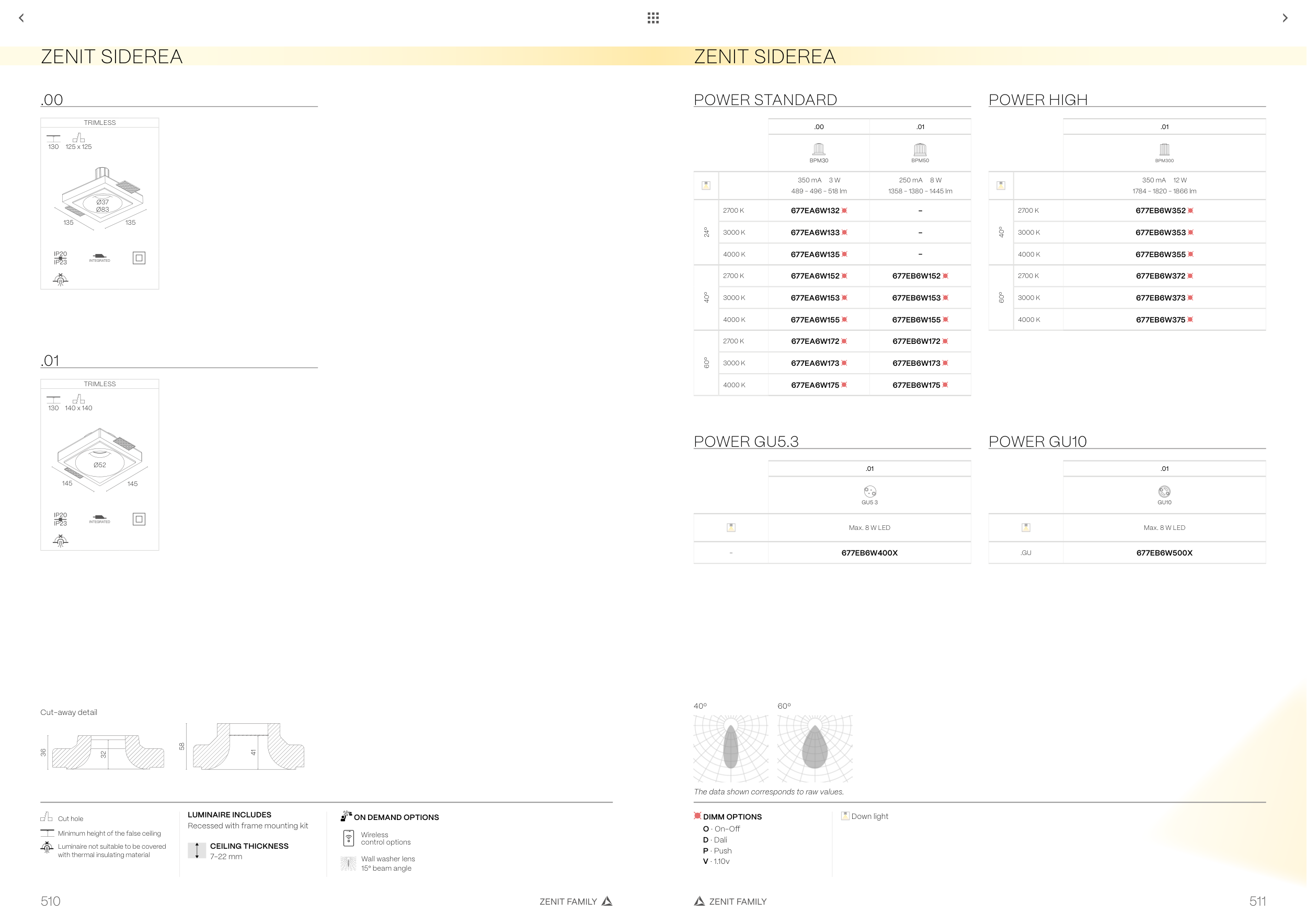

ZENIT SIDEREA
ZENIT SIDEREA
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Down light
Cut-away detail
LUMINAIRE INCLUDES
Recessed with frame mounting kit
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
TRIMLESS
130
140 x 140
145
145
Ø52
TRIMLESS
130
125 x 125
135
135
Ø83
Ø37
CEILING THICKNESS
7-22 mm
36
58
41
32
.00
.01
POWER GU5.3
.01
Max. 8 W LED
-
677EB6W400X
.01
Max. 8 W LED
.GU
677EB6W500X
POWER GU10
POWER STANDARD
.00
.01
350 mA 3 W
489 - 496 - 518 lm
250 mA 8 W
1358 - 1380 - 1445 lm
24º
2700 K
677EA6W132
-
3000 K
677EA6W133
-
4000 K
677EA6W135
-
40º
2700 K
677EA6W152
677EB6W152
3000 K
677EA6W153
677EB6W153
4000 K
677EA6W155
677EB6W155
60º
2700 K
677EA6W172
677EB6W172
3000 K
677EA6W173
677EB6W173
4000 K
677EA6W175
677EB6W175
POWER HIGH
.01
350 mA 12 W
1784 - 1820 - 1866 lm
40º
2700 K
677EB6W352
3000 K
677EB6W353
4000 K
677EB6W355
60º
2700 K
677EB6W372
3000 K
677EB6W373
4000 K
677EB6W375
60º
40º
The data shown corresponds to raw values.
ON DEMAND OPTIONS
Wireless
control options
Wall washer lens
15° beam angle
