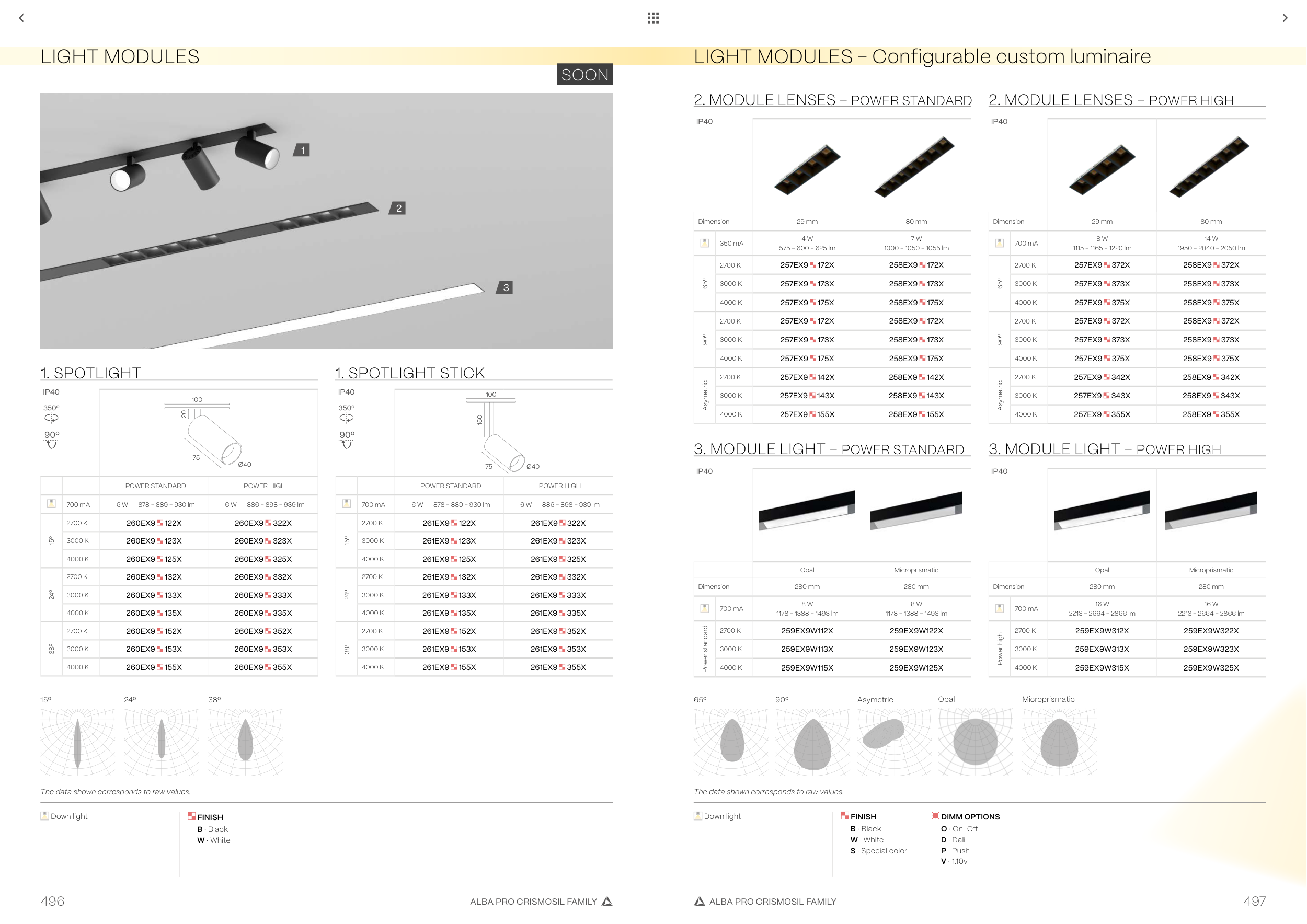

LIGHT MODULES - Configurable custom luminaire
LIGHT MODULES
1. SPOTLIGHT
1. SPOTLIGHT STICK
75
20
100
Ø40
POWER STANDARD
POWER HIGH
700 mA
6 W 878 - 889 - 930 lm
6 W 886 - 898 - 939 lm
15º
2700 K
260EX9 122X
260EX9 322X
3000 K
260EX9 123X
260EX9 323X
4000 K
260EX9 125X
260EX9 325X
24º
2700 K
260EX9 132X
260EX9 332X
3000 K
260EX9 133X
260EX9 333X
4000 K
260EX9 135X
260EX9 335X
38º
2700 K
260EX9 152X
260EX9 352X
3000 K
260EX9 153X
260EX9 353X
4000 K
260EX9 155X
260EX9 355X
75
150
100
Ø40
POWER STANDARD
POWER HIGH
700 mA
6 W 878 - 889 - 930 lm
6 W 886 - 898 - 939 lm
15º
2700 K
261EX9 122X
261EX9 322X
3000 K
261EX9 123X
261EX9 323X
4000 K
261EX9 125X
261EX9 325X
24º
2700 K
261EX9 132X
261EX9 332X
3000 K
261EX9 133X
261EX9 333X
4000 K
261EX9 135X
261EX9 335X
38º
2700 K
261EX9 152X
261EX9 352X
3000 K
261EX9 153X
261EX9 353X
4000 K
261EX9 155X
261EX9 355X
FINISH
B · Black
W · White
15º
24º
38º
The data shown corresponds to raw values.
1
2
3
Down light
FINISH
B · Black
W · White
S · Special color
The data shown corresponds to raw values.
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Down light
2. MODULE LENSES – POWER STANDARD
3. MODULE LIGHT – POWER STANDARD
2. MODULE LENSES – POWER HIGH
3. MODULE LIGHT – POWER HIGH
Dimension
29 mm
80 mm
350 mA
4 W
575 - 600 - 625 lm
7 W
1000 - 1050 - 1055 lm
65º
2700 K
257EX9 172X
258EX9 172X
3000 K
257EX9 173X
258EX9 173X
4000 K
257EX9 175X
258EX9 175X
90º
2700 K
257EX9 172X
258EX9 172X
3000 K
257EX9 173X
258EX9 173X
4000 K
257EX9 175X
258EX9 175X
Asymetric
2700 K
257EX9 142X
258EX9 142X
3000 K
257EX9 143X
258EX9 143X
4000 K
257EX9 155X
258EX9 155X
Opal
Microprismatic
Dimension
280 mm
280 mm
700 mA
8 W
1178 - 1388 - 1493 lm
8 W
1178 - 1388 - 1493 lm
Power standard
2700 K
259EX9W112X
259EX9W122X
3000 K
259EX9W113X
259EX9W123X
4000 K
259EX9W115X
259EX9W125X
Opal
Microprismatic
Dimension
280 mm
280 mm
700 mA
16 W
2213 - 2664 - 2866 lm
16 W
2213 - 2664 - 2866 lm
Power high
2700 K
259EX9W312X
259EX9W322X
3000 K
259EX9W313X
259EX9W323X
4000 K
259EX9W315X
259EX9W325X
Dimension
29 mm
80 mm
700 mA
8 W
1115 - 1165 - 1220 lm
14 W
1950 - 2040 - 2050 lm
65º
2700 K
257EX9 372X
258EX9 372X
3000 K
257EX9 373X
258EX9 373X
4000 K
257EX9 375X
258EX9 375X
90º
2700 K
257EX9 372X
258EX9 372X
3000 K
257EX9 373X
258EX9 373X
4000 K
257EX9 375X
258EX9 375X
Asymetric
2700 K
257EX9 342X
258EX9 342X
3000 K
257EX9 343X
258EX9 343X
4000 K
257EX9 355X
258EX9 355X
90º
Asymetric
65º
Opal
Microprismatic
