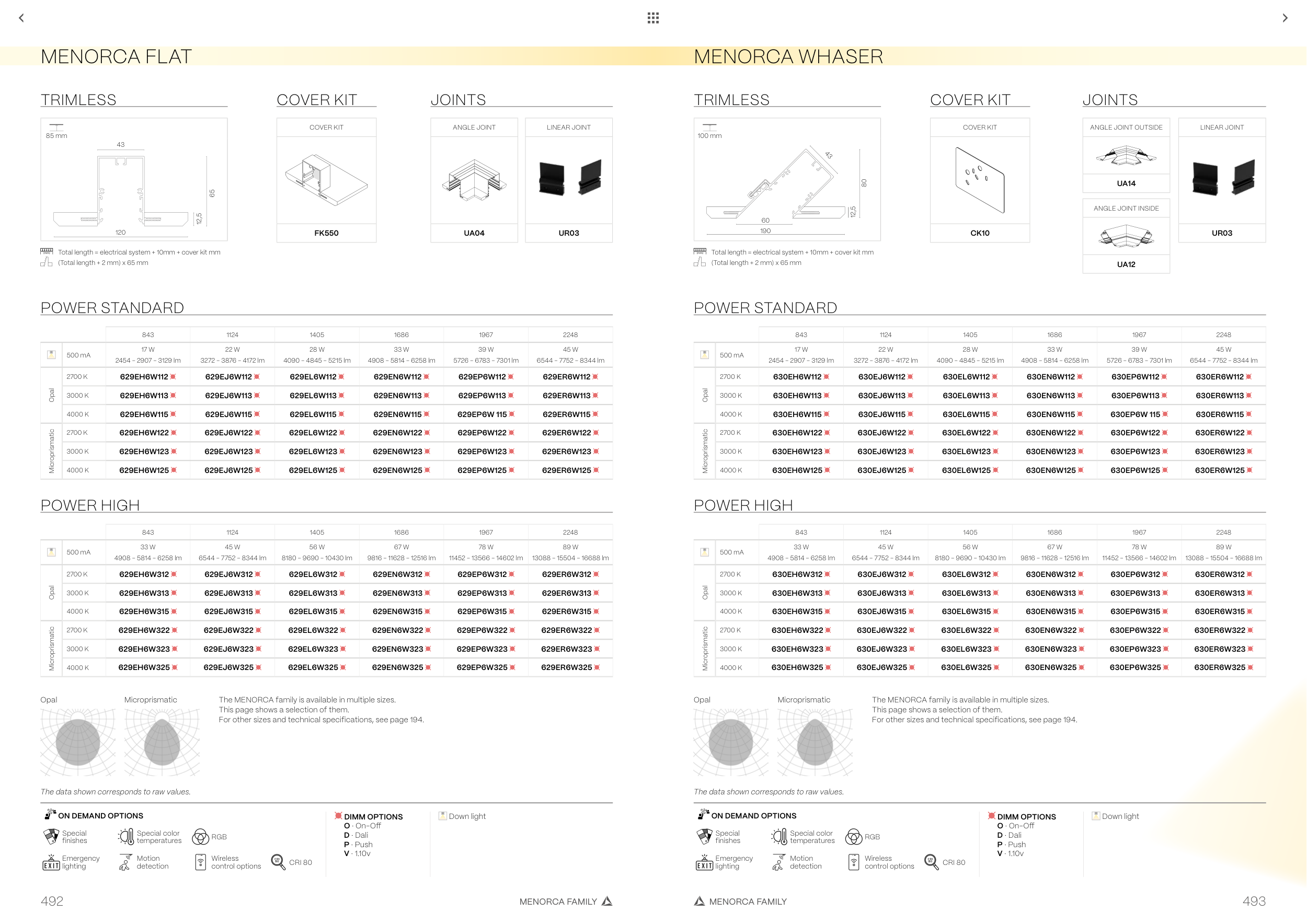

MENORCA FAMILY
MENORCA FAMILY
493
492
MENORCA WHASER
MENORCA FLAT
ON DEMAND OPTIONS
Special
finishes
Special color
temperatures
RGB
Emergency
lighting
Motion
detection
Wireless
control options
CRI 80
ON DEMAND OPTIONS
Special
finishes
Special color
temperatures
RGB
Emergency
lighting
Motion
detection
Wireless
control options
CRI 80
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
Down light
Down light
POWER STANDARD
POWER STANDARD
POWER HIGH
POWER HIGH
843
1124
1405
1686
1967
2248
500 mA
17 W
2454 - 2907 - 3129 lm
22 W
3272 - 3876 - 4172 lm
28 W
4090 - 4845 - 5215 lm
33 W
4908 - 5814 - 6258 lm
39 W
5726 - 6783 - 7301 lm
45 W
6544 - 7752 - 8344 lm
Opal
2700 K
629EH6W112
629EJ6W112
629EL6W112
629EN6W112
629EP6W112
629ER6W112
3000 K
629EH6W113
629EJ6W113
629EL6W113
629EN6W113
629EP6W113
629ER6W113
4000 K
629EH6W115
629EJ6W115
629EL6W115
629EN6W115
629EP6W 115
629ER6W115
Microprismatic
2700 K
629EH6W122
629EJ6W122
629EL6W122
629EN6W122
629EP6W122
629ER6W122
3000 K
629EH6W123
629EJ6W123
629EL6W123
629EN6W123
629EP6W123
629ER6W123
4000 K
629EH6W125
629EJ6W125
629EL6W125
629EN6W125
629EP6W125
629ER6W125
843
1124
1405
1686
1967
2248
500 mA
17 W
2454 - 2907 - 3129 lm
22 W
3272 - 3876 - 4172 lm
28 W
4090 - 4845 - 5215 lm
33 W
4908 - 5814 - 6258 lm
39 W
5726 - 6783 - 7301 lm
45 W
6544 - 7752 - 8344 lm
Opal
2700 K
630EH6W112
630EJ6W112
630EL6W112
630EN6W112
630EP6W112
630ER6W112
3000 K
630EH6W113
630EJ6W113
630EL6W113
630EN6W113
630EP6W113
630ER6W113
4000 K
630EH6W115
630EJ6W115
630EL6W115
630EN6W115
630EP6W 115
630ER6W115
Microprismatic
2700 K
630EH6W122
630EJ6W122
630EL6W122
630EN6W122
630EP6W122
630ER6W122
3000 K
630EH6W123
630EJ6W123
630EL6W123
630EN6W123
630EP6W123
630ER6W123
4000 K
630EH6W125
630EJ6W125
630EL6W125
630EN6W125
630EP6W125
630ER6W125
843
1124
1405
1686
1967
2248
500 mA
33 W
4908 - 5814 - 6258 lm
45 W
6544 - 7752 - 8344 lm
56 W
8180 - 9690 - 10430 lm
67 W
9816 - 11628 - 12516 lm
78 W
11452 - 13566 - 14602 lm
89 W
13088 - 15504 - 16688 lm
Opal
2700 K
629EH6W312
629EJ6W312
629EL6W312
629EN6W312
629EP6W312
629ER6W312
3000 K
629EH6W313
629EJ6W313
629EL6W313
629EN6W313
629EP6W313
629ER6W313
4000 K
629EH6W315
629EJ6W315
629EL6W315
629EN6W315
629EP6W315
629ER6W315
Microprismatic
2700 K
629EH6W322
629EJ6W322
629EL6W322
629EN6W322
629EP6W322
629ER6W322
3000 K
629EH6W323
629EJ6W323
629EL6W323
629EN6W323
629EP6W323
629ER6W323
4000 K
629EH6W325
629EJ6W325
629EL6W325
629EN6W325
629EP6W325
629ER6W325
843
1124
1405
1686
1967
2248
500 mA
33 W
4908 - 5814 - 6258 lm
45 W
6544 - 7752 - 8344 lm
56 W
8180 - 9690 - 10430 lm
67 W
9816 - 11628 - 12516 lm
78 W
11452 - 13566 - 14602 lm
89 W
13088 - 15504 - 16688 lm
Opal
2700 K
630EH6W312
630EJ6W312
630EL6W312
630EN6W312
630EP6W312
630ER6W312
3000 K
630EH6W313
630EJ6W313
630EL6W313
630EN6W313
630EP6W313
630ER6W313
4000 K
630EH6W315
630EJ6W315
630EL6W315
630EN6W315
630EP6W315
630ER6W315
Microprismatic
2700 K
630EH6W322
630EJ6W322
630EL6W322
630EN6W322
630EP6W322
630ER6W322
3000 K
630EH6W323
630EJ6W323
630EL6W323
630EN6W323
630EP6W323
630ER6W323
4000 K
630EH6W325
630EJ6W325
630EL6W325
630EN6W325
630EP6W325
630ER6W325
The MENORCA family is available in multiple sizes.
This page shows a selection of them.
For other sizes and technical specifications, see page 194.
The MENORCA family is available in multiple sizes.
This page shows a selection of them.
For other sizes and technical specifications, see page 194.
The data shown corresponds to raw values.
The data shown corresponds to raw values.
Opal
Opal
Microprismatic
Microprismatic
TRIMLESS
TRIMLESS
COVER KIT
COVER KIT
JOINTS
JOINTS
85 mm
43
120
12,5
65
100 mm
60
190
43
12,5
80
Total length = electrical system + 10mm + cover kit mm
(Total length + 2 mm) x 65 mm
Total length = electrical system + 10mm + cover kit mm
(Total length + 2 mm) x 65 mm
ANGLE JOINT
UA04
ANGLE JOINT OUTSIDE
UA14
ANGLE JOINT INSIDE
UA12
LINEAR JOINT
UR03
LINEAR JOINT
UR03
COVER KIT
FK550
COVER KIT
CK10
