SASSY FAMILY
SASSY FAMILY
335
334
TECHNICAL DATA
POWER STANDARD
SASSY SQUARE +
MODEL 1
POWER STANDARD
2700 K
250 mA 8 W
1325 lm
361EB
1 2
3000 K
250 mA 8 W
1342 lm
361EB
1 3
4000 K
250 mA 8 W
1405 lm
361EB
1 5
D.WHITE
250 mA 10 W
880 - 3 lm
361EB
1 7
POWER MEDIUM
2700 K
350 mA 12 W
1774 lm
361EB
2 2
3000 K
350 mA 12 W
1803 lm
361EB
2 3
4000 K
350 mA 12 W
1888 lm
361EB
2 5
D.WHITE
-
361EB
2 7
POWER HIGH
2700 K
500 mA 18 W
2407 lm
361EB
3 2
3000 K
500 mA 18 W
2448 lm
361EB
3 3
4000 K
500 mA 18 W
2563 lm
361EB
3 5
D.WHITE
-
361EB
3 7
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
F · Phase cut
BEAM ANGLE
1 · 8º
2 · 15º
4 · 26º
5 · 38º
7 · 60º
SASSY ROUND + MODEL 1
BLACK BASE COLOR +
FINISH RING
B · Black + Black
G · Black + White
J · Black + Chrome
J · Black + Grafite
J · Black + Mat Silver
WHITE BASE COLOR +
FINISH RING
H · White + Black
W · White + White
I · White + Chrome
I · White + Grafite
I · White + Mat Silver
INSTALLATION
5 · Recessed with frame
6 · Trimless

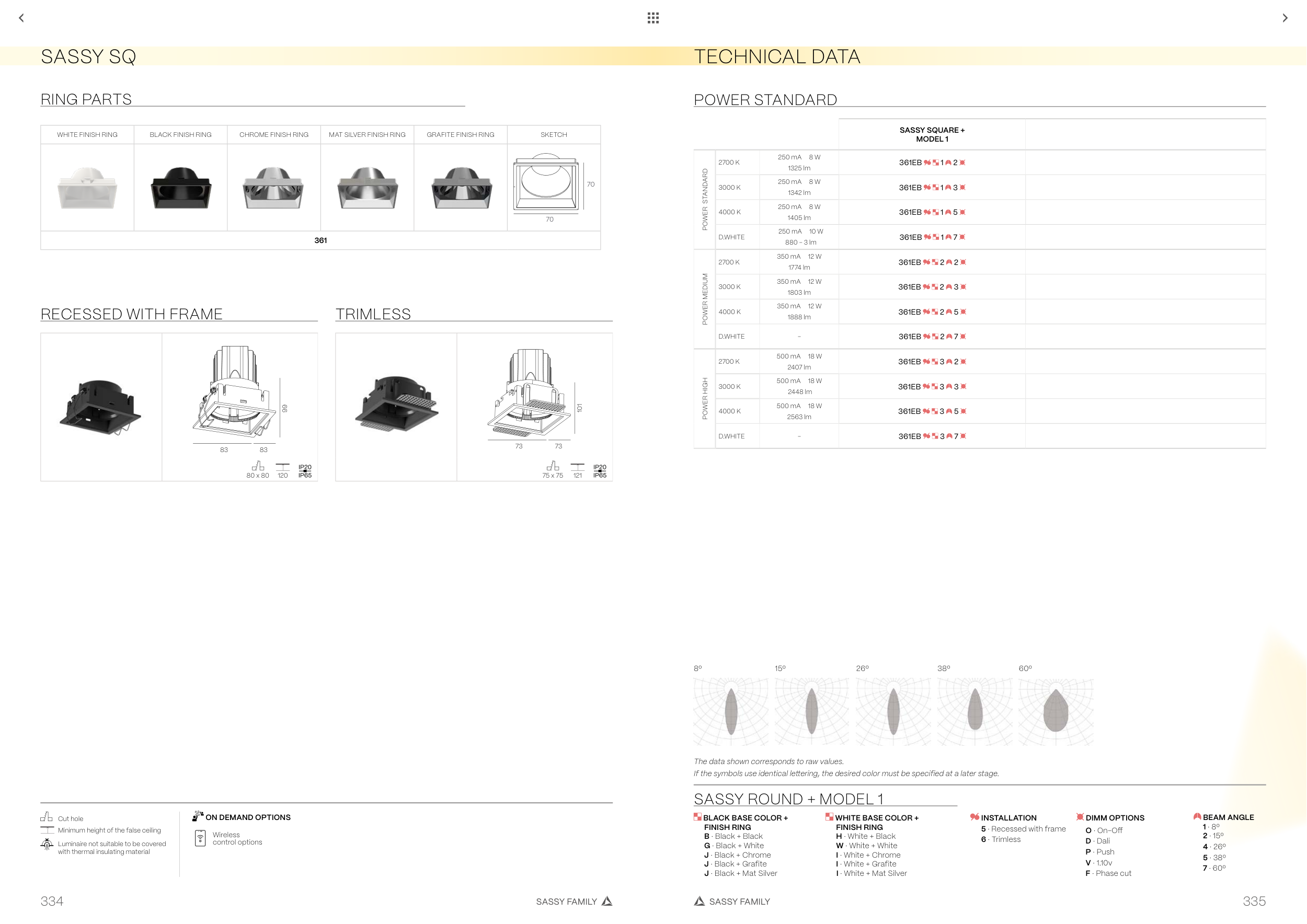

SASSY SQ
RING PARTS
RECESSED WITH FRAME
TRIMLESS
WHITE FINISH RING
BLACK FINISH RING
CHROME FINISH RING
MAT SILVER FINISH RING
GRAFITE FINISH RING
SKETCH
70
70
361
The data shown corresponds to raw values.
If the symbols use identical lettering, the desired color must be specified at a later stage.
99
83
83
80 x 80
120
101
73
73
75 x 75
121
ON DEMAND OPTIONS
Wireless
control options
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
15º
38º
60º
26º
8º
