ORACLE FAMILY
ORACLE FAMILY
313
312

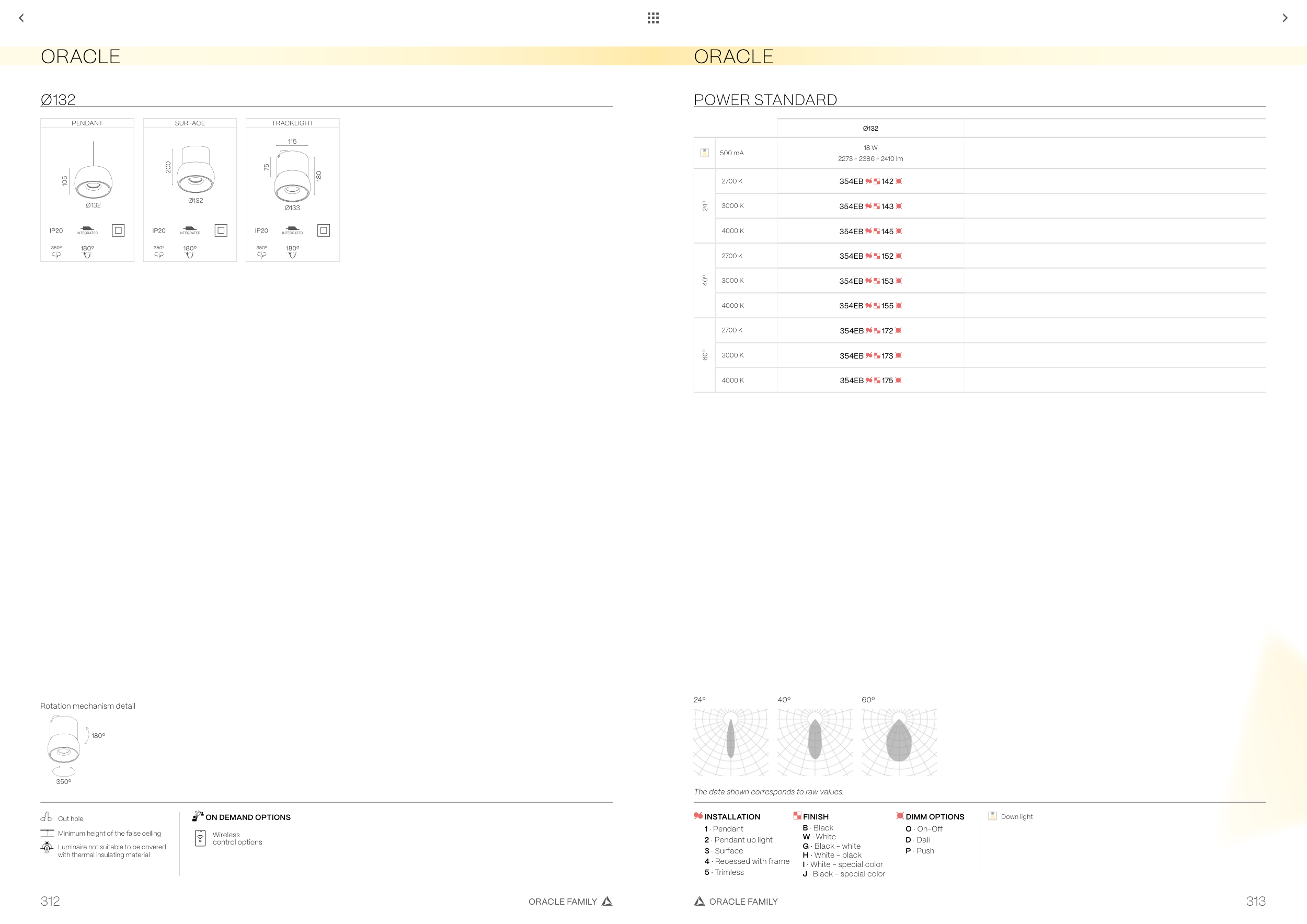

ORACLE
Cut hole
Minimum height of the false ceiling
Luminaire not suitable to be covered
with thermal insulating material
TRACKLIGHT
75
180
115
Ø133
Ø132
PENDANT
Ø132
105
SURFACE
200
Ø132
Rotation mechanism detail
180º
350º
ORACLE
POWER STANDARD
INSTALLATION
1 · Pendant
2 · Pendant up light
3 · Surface
4 · Recessed with frame
5 · Trimless
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
Down light
Ø132
500 mA
18 W
2273 - 2386 - 2410 lm
24º
2700 K
354EB 142
3000 K
354EB 143
4000 K
354EB 145
40º
2700 K
354EB 152
3000 K
354EB 153
4000 K
354EB 155
60º
2700 K
354EB 172
3000 K
354EB 173
4000 K
354EB 175
24º
The data shown corresponds to raw values.
40º
60º
FINISH
B · Black
W · White
G · Black - white
H · White - black
I · White - special color
J · Black - special color
ON DEMAND OPTIONS
Wireless
control options
