ALBA FAMILY
ALBA MINI MODULIGHT
209
208
NEW

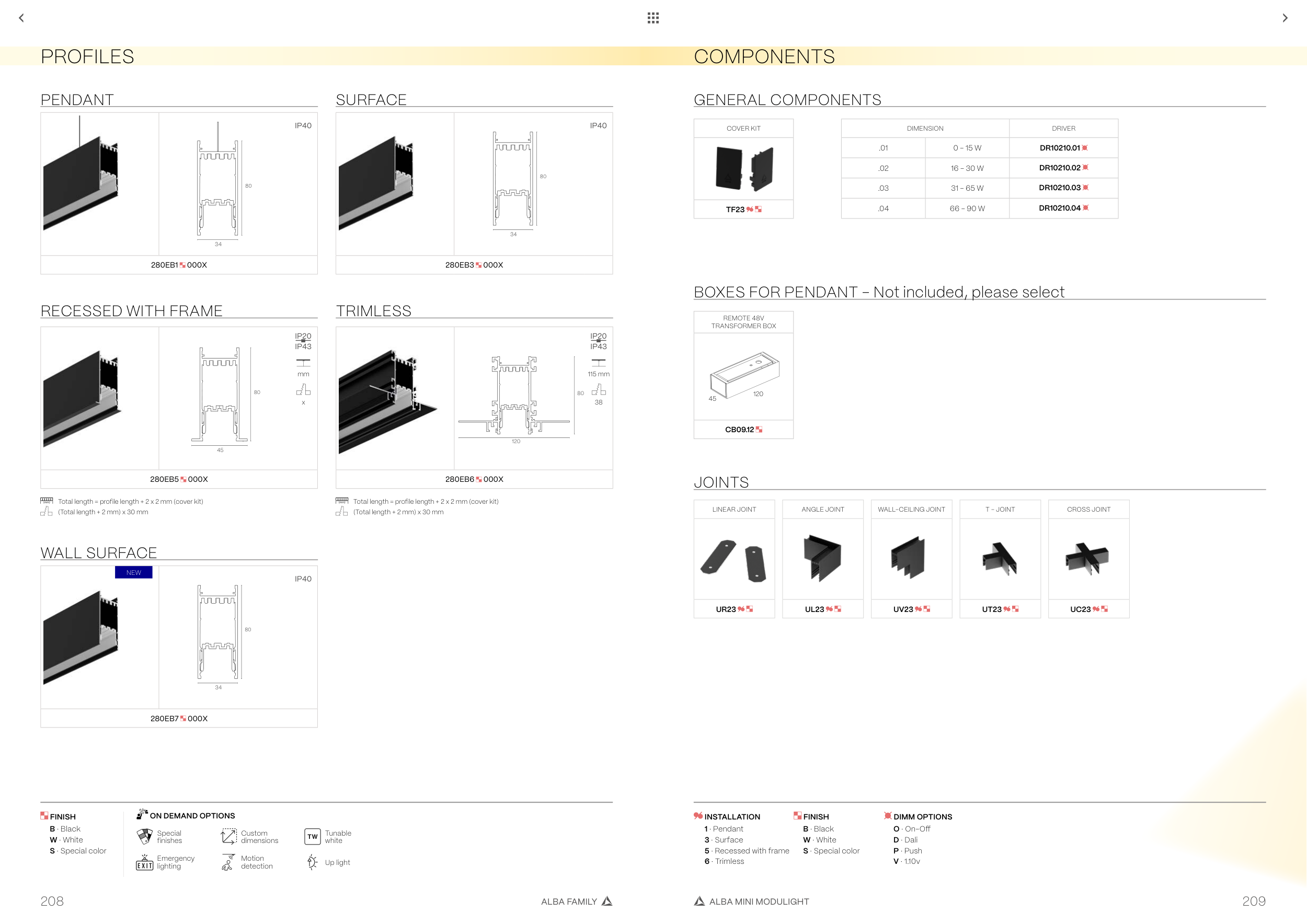

TECHNICAL INFORMATION
PROFILES
RECESSED WITH FRAME
TRIMLESS
80
45
IP20
IP43
mm
x
280EB5 000X
80
120
IP20
IP43
115 mm
38
280EB6 000X
Total length = profile length + 2 x 2 mm (cover kit)
(Total length + 2 mm) x 30 mm
Total length = profile length + 2 x 2 mm (cover kit)
(Total length + 2 mm) x 30 mm
PENDANT
SURFACE
WALL SURFACE
80
34
280EB1 000X
80
34
280EB3 000X
80
34
280EB7 000X
ON DEMAND OPTIONS
Special
finishes
Custom
dimensions
Tunable
white
Emergency
lighting
Motion
detection
Up light
COMPONENTS
INSTALLATION
1 · Pendant
3 · Surface
5 · Recessed with frame
6 · Trimless
FINISH
B · Black
W · White
S · Special color
DIMM OPTIONS
O · On-Off
D · Dali
P · Push
V · 1.10v
BOXES FOR PENDANT - Not included, please select
COVER KIT
TF23
DIMENSION
DRIVER
.01
0 - 15 W
DR10210.01
.02
16 - 30 W
DR10210.02
.03
31 - 65 W
DR10210.03
.04
66 - 90 W
DR10210.04
GENERAL COMPONENTS
JOINTS
REMOTE 48V
TRANSFORMER BOX
120
45
CB09.12
FINISH
B · Black
W · White
S · Special color
LINEAR JOINT
UR23
ANGLE JOINT
UL23
WALL-CEILING JOINT
UV23
T - JOINT
UT23
CROSS JOINT
UC23
