120
max 155
ø38
355°
90°
ø70
ø60
120
355°
max 155
65°
ø70
ø80
355°
90°
120
ø70
max 165
4.5W (M) | 4.5W (A)
543lm
8.5W (M) | 8.5W (A)
1149lm
11.5W (L) | 17W (M) | 17W (A)
1617lm – 2261lm
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | Phase-Control (PH) | DALI (DA) | require driver (CC)*
power:
flux:
optics:
CCT:
CC driver:
control:
16413-M930-WB-00-12
16412-M930-WB-00-12
16414-M930-WB-00-12
cat. n°
(B) 500mA | 8.6V
ON/OFF (00) | Phase-Control (PH) | require driver (CC)*
(H) 250mA | 34.2V
(L) 500mA | 33.6V
cat. n°
cat. n°
230V
CRI
>90
dim opt
IP20

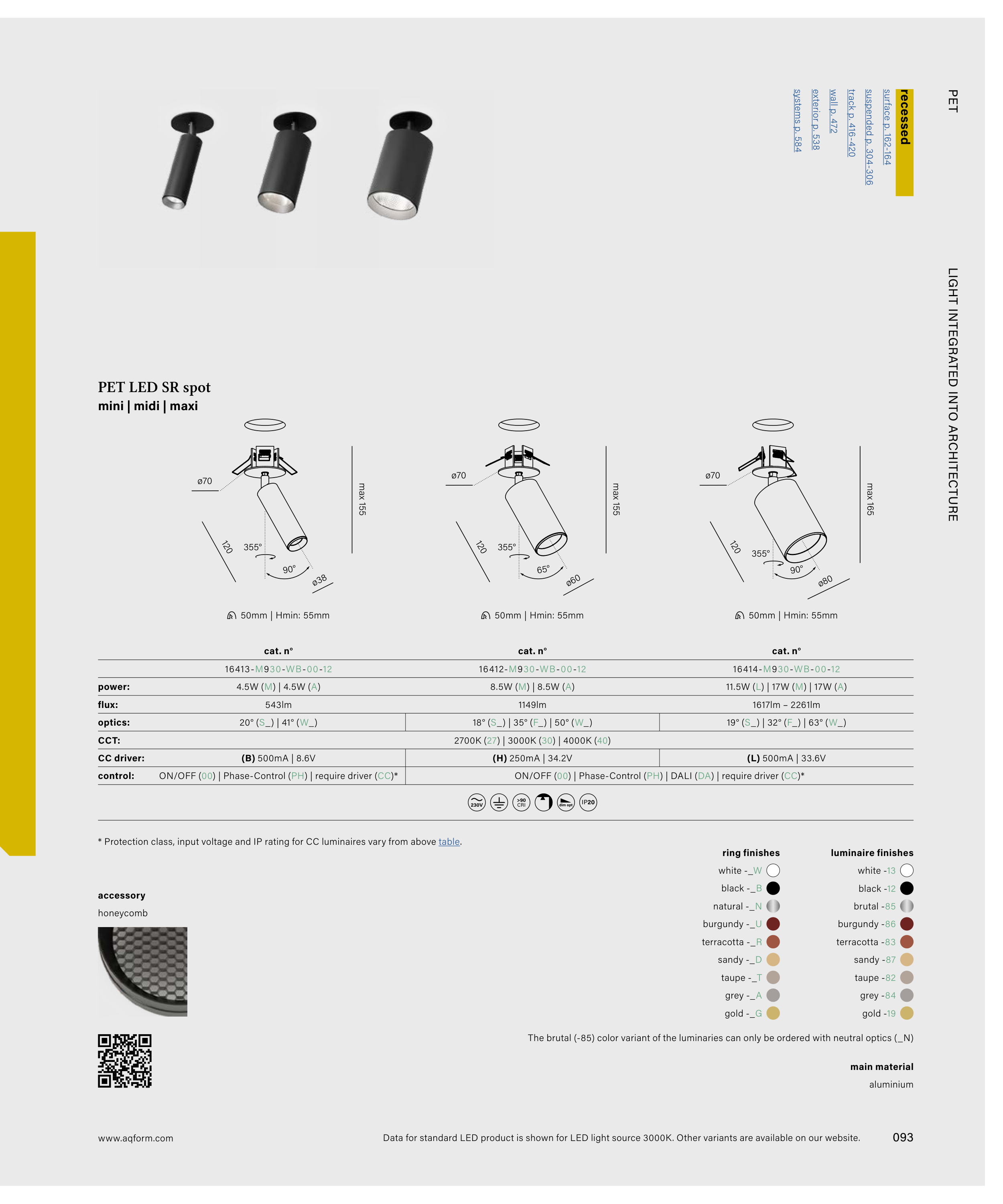

PET LED SR spot
mini | midi | maxi
PET
* Protection class, input voltage and IP rating for CC luminaires vary from above table.
20° (S_) | 41° (W_)
18° (S_) | 35° (F_) | 50° (W_)
19° (S_) | 32° (F_) | 63° (W_)
50mm | Hmin: 55mm
50mm | Hmin: 55mm
50mm | Hmin: 55mm
recessed
surface p. 162-164
suspended p. 304-306
track p. 416-420
wall p. 472
exterior p. 538
systems p. 584
accessory
honeycomb
main material
aluminium
natural -_N
brutal -85
The brutal (-85) color variant of the luminaries can only be ordered with neutral optics (_N)
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
white -_W
burgundy -_U
burgundy -86
black -_B
sandy -_D
sandy -87
grey -_A
terracotta -_R
taupe -_T
gold -_G
ring finishes
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
093
