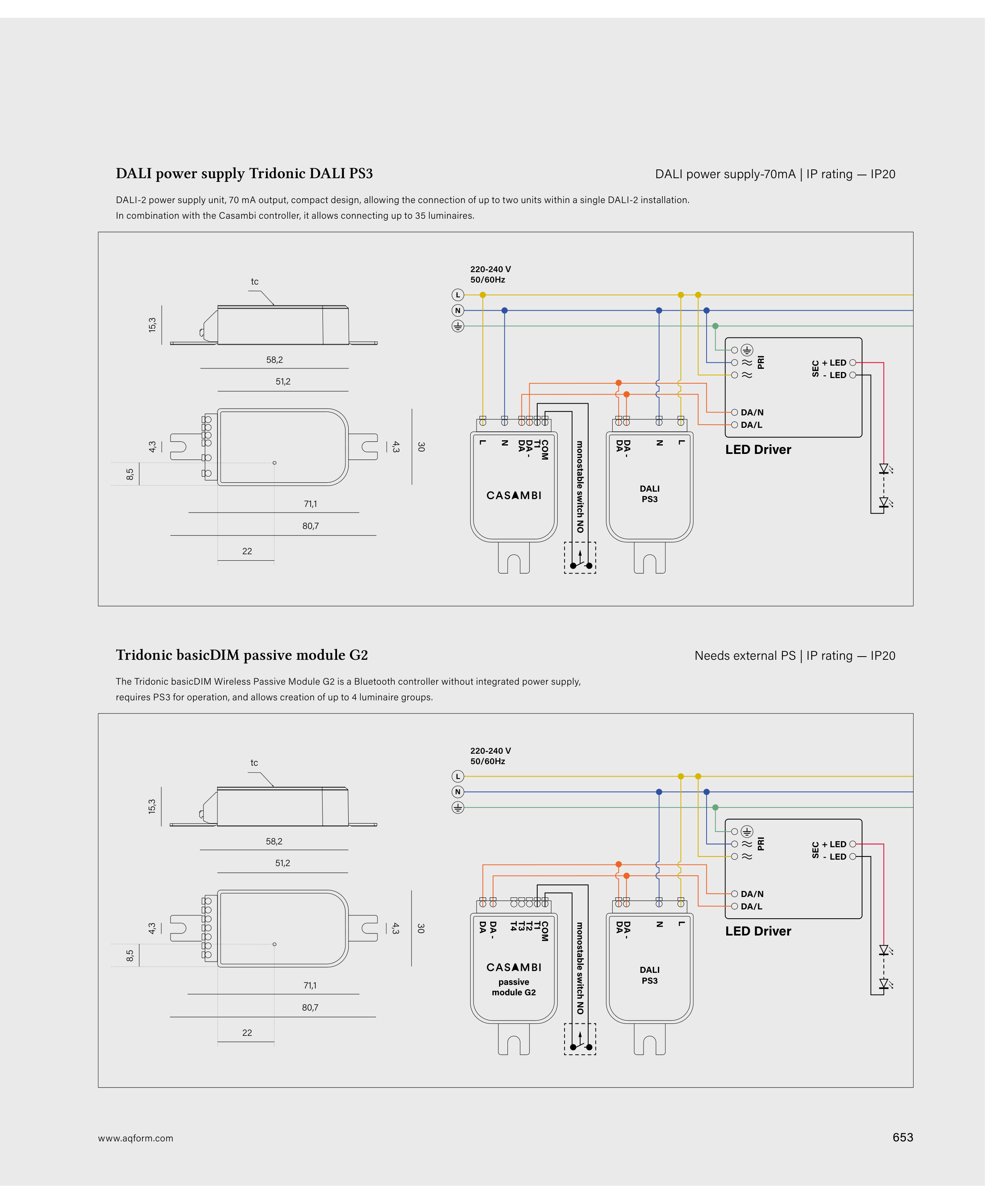

DALI power supply Tridonic DALI PS3
Tridonic basicDIM passive module G2
Needs external PS | IP rating — IP20
The Tridonic basicDIM Wireless Passive Module G2 is a Bluetooth controller without integrated power supply,
requires PS3 for operation, and allows creation of up to 4 luminaire groups.
DALI-2 power supply unit, 70 mA output, compact design, allowing the connection of up to two units within a single DALI-2 installation.
In combination with the Casambi controller, it allows connecting up to 35 luminaires.
DALI power supply-70mA | IP rating — IP20
