Ø
6
32
ø60
Ø
6
66
cat. n°
cat. n°

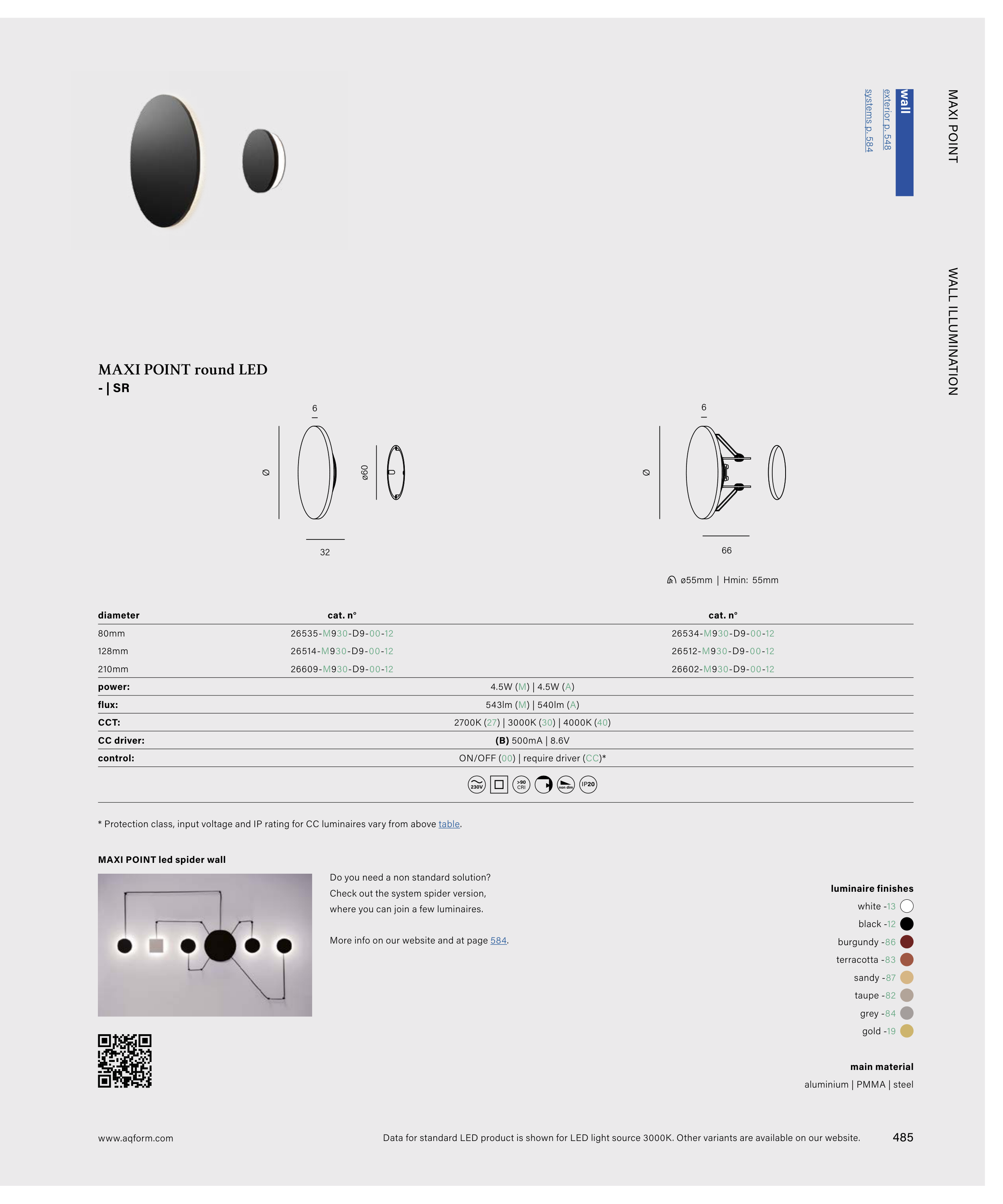

MAXI POINT round LED
- | SR
diameter
4.5W (M) | 4.5W (A)
543lm (M) | 540lm (A)
2700K (27) | 3000K (30) | 4000K (40)
ON/OFF (00) | require driver (CC)*
(B) 500mA | 8.6V
power:
flux:
CCT:
CC driver:
control:
230V
CRI
>90
non dim
IP20
26535-M930-D9-00-12
26514-M930-D9-00-12
26609-M930-D9-00-12
26534-M930-D9-00-12
26512-M930-D9-00-12
26602-M930-D9-00-12
80mm
128mm
210mm
wall
exterior p. 548
systems p. 584
MAXI POINT
main material
* Protection class, input voltage and IP rating for CC luminaires vary from above table.
Do you need a non standard solution?
Check out the system spider version,
where you can join a few luminaires.
More info on our website and at page 584.
MAXI POINT led spider wall
ø55mm | Hmin: 55mm
aluminium | PMMA | steel
white -13
black -12
grey -84
terracotta -83
taupe -82
gold -19
luminaire finishes
burgundy -86
sandy -87
Data for standard LED product is shown for LED light source 3000K. Other variants are available on our website.
www.aqform.com
485
WALL ILLUMINATION
